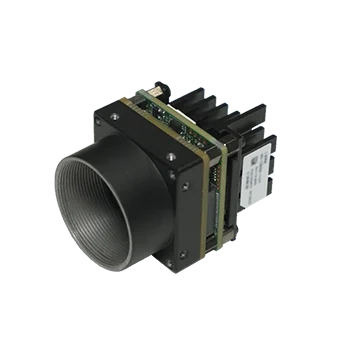

Hikrobot MV-CB050-11UC-C 5MP Board Level Camera, USB3.0, FPC interface, Color, C-mount
Model MV-CB050-11UC-C
Hikrobot MV-CB050-11UC-C 5MP Board Level Camera, USB3.0, FPC interface, Color, C-mount. USB3.0 supports FPC connection to meet limited spatial requirements. Supports senor and mainboard separation for complex spatial requirements.
Features
- USB3.0 supports FPC connection to meet limited spatial requirements.
- Supports senor and mainboard separation for complex spatial requirements.
- Supports auto or manual adjustment for gain, exposure time, white balance, LUT, Gamma correction, etc.
- Adopts image interpolation algorithm for color reproduction.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on protocol and standard.
Specifications
| Model | MV-CB050-11UC-C |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX264 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 2/3" |
| Resolution | 2448 × 2048 |
| Max. frame rate | 60 fps @ 2448 × 2048 |
| Dynamic range | 72 dB |
| SNR | 40.2 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Color |
| Pixel format | Mono 8/10/12, ; Bayer RG 8/10/10Packed/12/12Packed, ; YUV422Packed, YUV422_YUYV_Packed, ; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | 5 VDC (USB3.0 provides power supply) |
| Power consumption | Typ. 2.8 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 31.3 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 37 g (0.08 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.15 kg |
