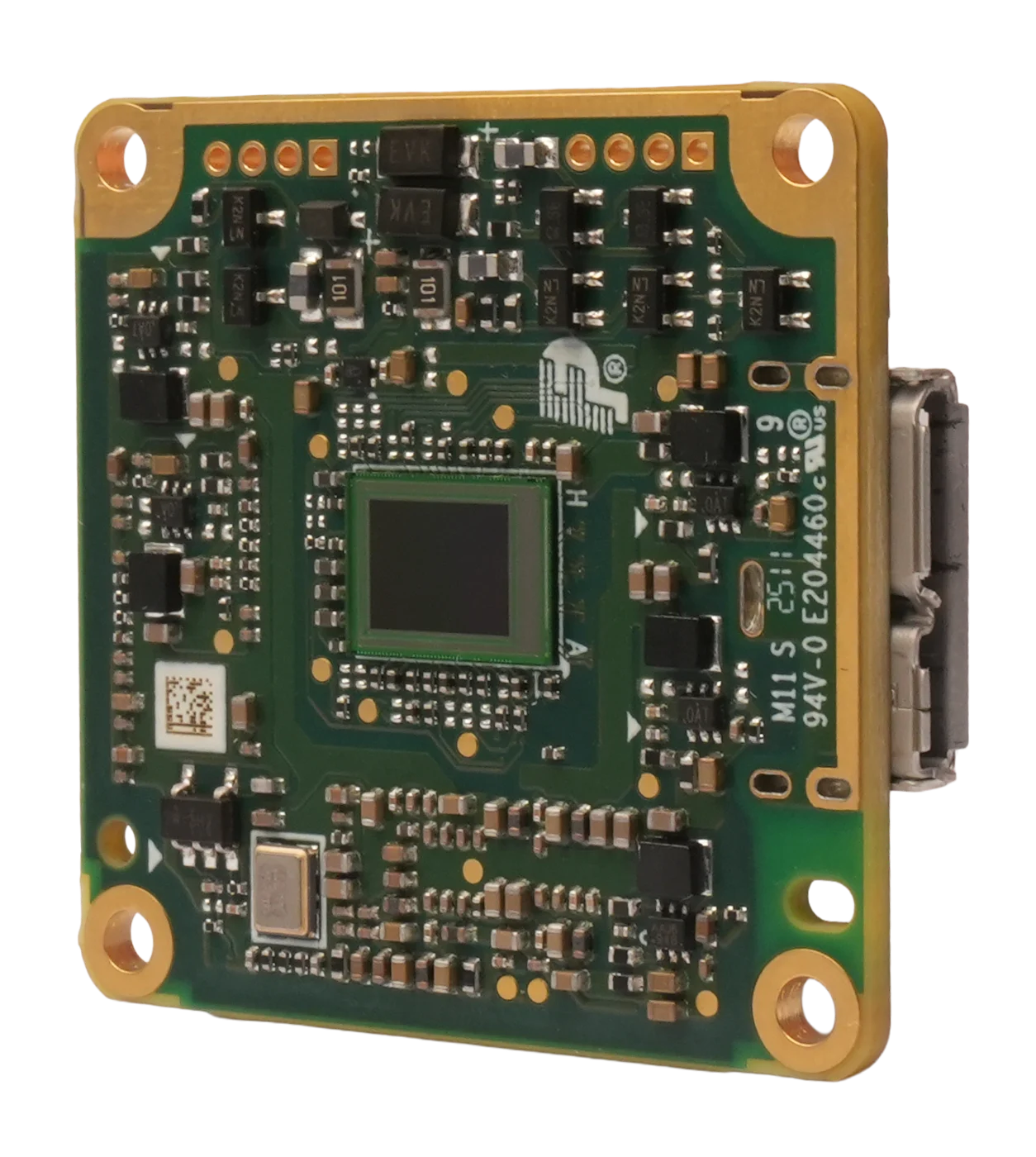

Hikrobot MV-CB020-60UM-B 2MP Board Level Camera, USB3, Mono, Bare Board
Model MV-CB020-60UM-B
Hikrobot MV-CB020-60UM-B 2MP Board Level Camera, USB3, Mono, Bare Board. Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc. Adopts image interpolation algorithm for color camera to have better color correction.
Datasheet (PDF) - MV-CB020-60UM-BUser manual (PDF) - MV-CB020-60UM-BCAD: 3D STEP + 2D DXF (ZIP) - MV-CB020-60UM-B
Features
- Supports auto and manual adjustment for gain, exposure control, white balance, LUT, etc.
- Adopts image interpolation algorithm for color camera to have better color correction.
- Power supply and data transmission via USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CB020-60UM-B |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.53" |
| Resolution | 1624 × 1240 |
| Max. frame rate | 179.9 fps @ 1624 × 1240 Mono 8 |
| Dynamic range | 68.6 dB |
| SNR | 44.1 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 23 μs to 10 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode |
| Mono/color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | USB 3.0 power supply |
| Power consumption | Typ. 1.5 W @ 5 VDC |
| Lens mount | None |
| Dimension (without lens) | 32.5 mm × 32.5 mm × 1.6 mm (1.3" × 1.3" × 0.1") |
| Weight | Approx. 10 g (0.02 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.11 kg |
