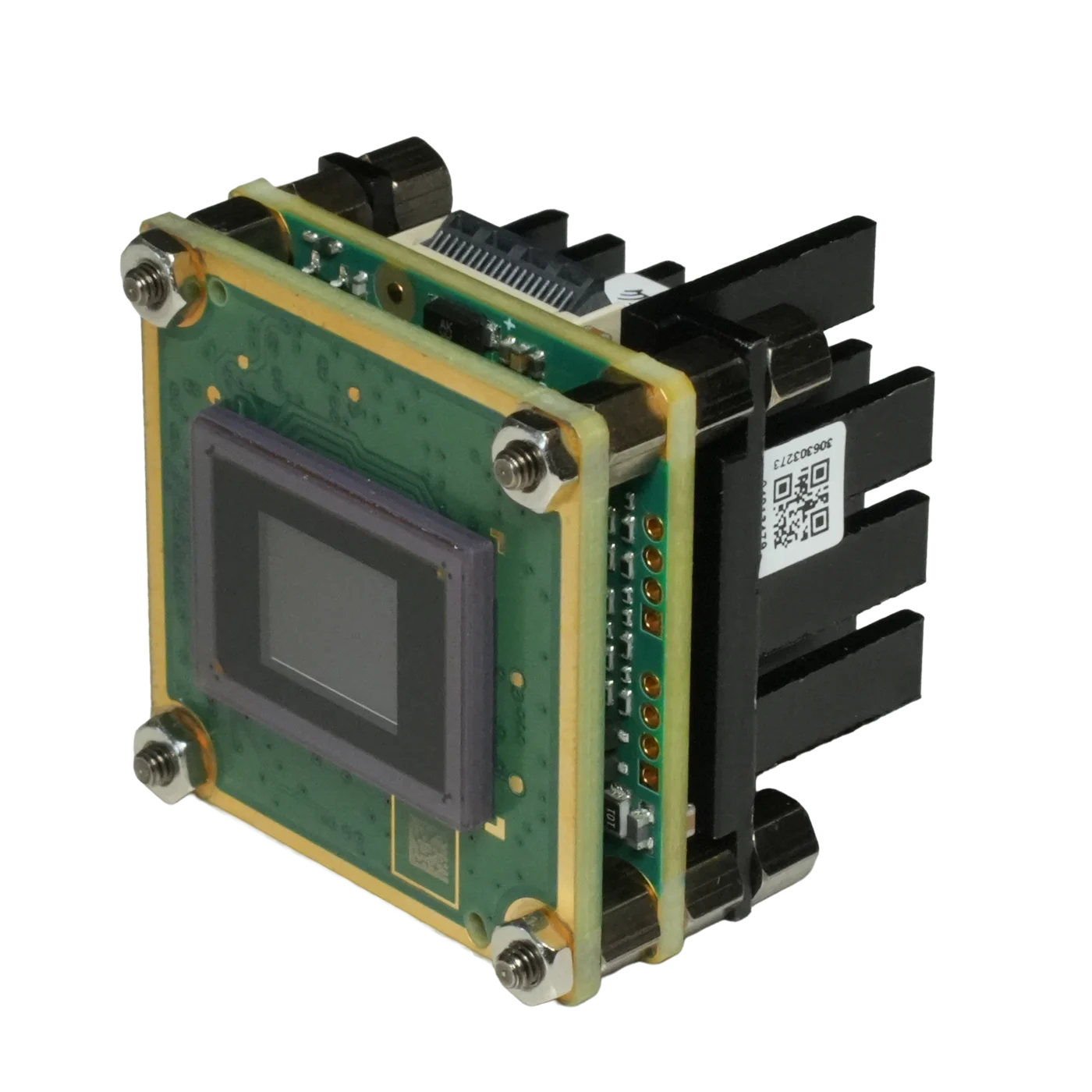

Hikrobot MV-CB020-61UM-B-F 2MP Board Level Camera, USB3.0, FPC, Mono, bare board
Model MV-CB020-61UM-B-F
Hikrobot MV-CB020-61UM-B-F 2MP Board Level Camera, USB3.0, FPC, Mono, bare board. USB3.0 supports FPC connection to meet limited spatial requirements. Supports auto or manual adjustment of gain, exposure time, white balance, LUT correction, Gamma correction, etc.
Datasheet (PDF) - MV-CB020-61UM-B-FUser manual (PDF) - MV-CB020-61UM-B-FCAD: 3D STEP + 2D DXF (ZIP) - MV-CB020-61UM-B-F
Features
- USB3.0 supports FPC connection to meet limited spatial requirements.
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT correction, Gamma correction, etc.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CB020-61UM-B-F |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 1/1.7" |
| Resolution | 1624 × 1240 |
| Max. frame rate | 99 fps @ 1624 × 1240 Mono 8 |
| Dynamic range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | High full well capacity: 0 dB to 12.8 dB; High sensitivity: 0 dB to 24 dB |
| Exposure time | High full well capacity: 30 μs to 10 sec; High sensitivity: 5 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Trigger Width |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | 5 V, USB 3.0 power supply |
| Power consumption | Typ. 1.5 W @ 5 VDC (USB power supply) |
| Lens mount | none |
| Dimension | 29 mm × 29 mm × 27.6 mm (1.1" × 1.1" × 1.1") |
| Weight | Approx. 37 g (0.08 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | KC, CE, RoHS |
| Shipping weight (estimated) | 0.15 kg |
