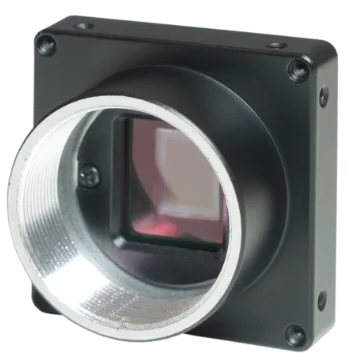

Hikrobot MV-CB060-10UM-C 6MP Board Level Camera, USB3, IMX178, Mono, C-mount, V4
Model MV-CB060-10UM-C
Hikrobot MV-CB060-10UM-C 6MP Board Level Camera, USB3, IMX178, Mono, C-mount, V4. Compact design for flexible installation. Supports auto or manual adjustment of gain, exposure time, and white balance, and manual adjustment of Gamma correction, LUT, etc.
Features
- Compact design for flexible installation.
- Supports auto or manual adjustment of gain, exposure time, and white balance, and manual adjustment of Gamma correction, LUT, etc.
- Supports HDR function with different exposure time and gain.
- Supports hardware trigger, software trigger, free run, etc.
- Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.
Specifications
| Model | MV-CB060-10UM-C |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX178 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 60.9 fps @ 3072 × 2048 Mono 8 |
| Dynamic range | 66 dB |
| SNR | 41.5 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 8 μs to 1 sec |
| Exposure mode | Off/ Once/ Continuous exposure mode, supports Global Reset and Trigger Rolling |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0 |
| Digital I/O | Bi-directional non-isolated I/O × 2 (Line 2, Line 5) |
| Power supply | USB 3.0 power supply |
| Power consumption | Typ. 1.5 W @ 5 VDC |
| Lens mount | C-mount |
| Dimension | 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3") |
| Weight | Approx. 30 g (0.07 lb.) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH (no condensation) |
| Client software | MVS or third-party software with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.14 kg |
