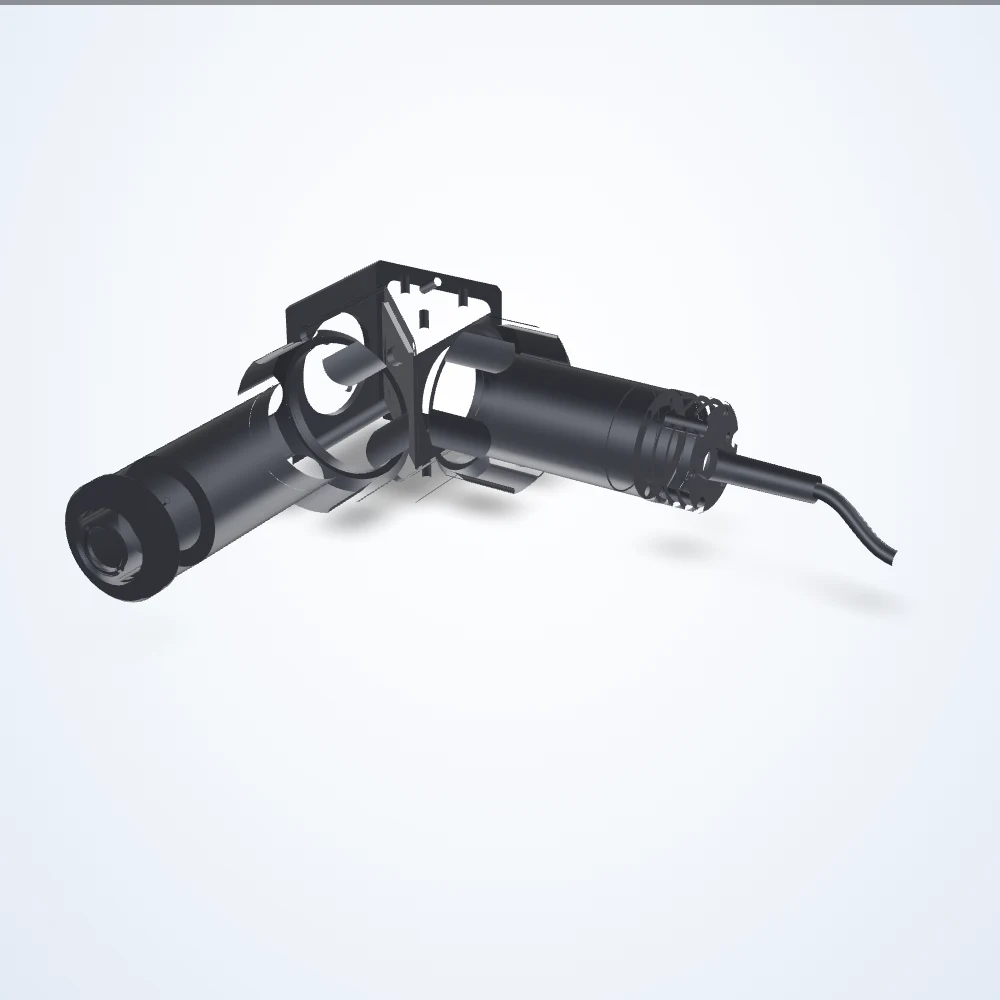

1× telecentric lens, 2/3", C-mount, weight 992 Grams, wavelength 6000 K (LS-TCL-0422)

Model LS-TCL-0422

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8; working distance 78 mm; depth of field 0.6 mm.

Datasheet (PDF) - LS-TCL-0422 3D model (STEP) - LS-TCL-0422

Specifications

Model	LS-TCL-0422
Magnification	1×
Working distance	78 mm
Sensor format	2/3"
Mount	C-mount
Depth of field	0.6 mm
Connector	M8
Dimensions approximate	181 x 64 x 155 mm
Distortion maximum (%)	< 0.1
Distortion typical (%)	< 0.05
Filter thread	No Filter Threads
FOV @ 1/1.8″	7.13 x 5.33 mm
Fov @ 1/2.0″	6.40 x 4.80 mm
Fov @ 1/2.5″	5.70 x 4.28 mm
FOV @ 1/2″	6.40 x 4.80 mm
Fov @ 1/3.0″	4.80 x 3.60 mm
FOV @ 2/3″	8.50 x 7.09 mm
Image circle	11 mm
Installation location	Indoor Use Only
LED current	350 mA
LED voltage	2.8 Volts
Lens type	Telecentric
Light color	White
Operating relative humidity (%)	20-85 Non Condensing
Operating temperature range	0 to 40°C
Power consumption maximum	2.5 Watts
Pulse current maximum	2000 mA
Resolution (pixel size)	8 μm
Storage temperature range	0 to 50°C
Supply voltage	12 - 24 Volts
Telecentricity maximum	0.06°
Telecentricity typical	< 0.04°
Wavelength	6000 K
Working ƒ/n	f/12
Weight	992 Grams
