Telecentric lenses

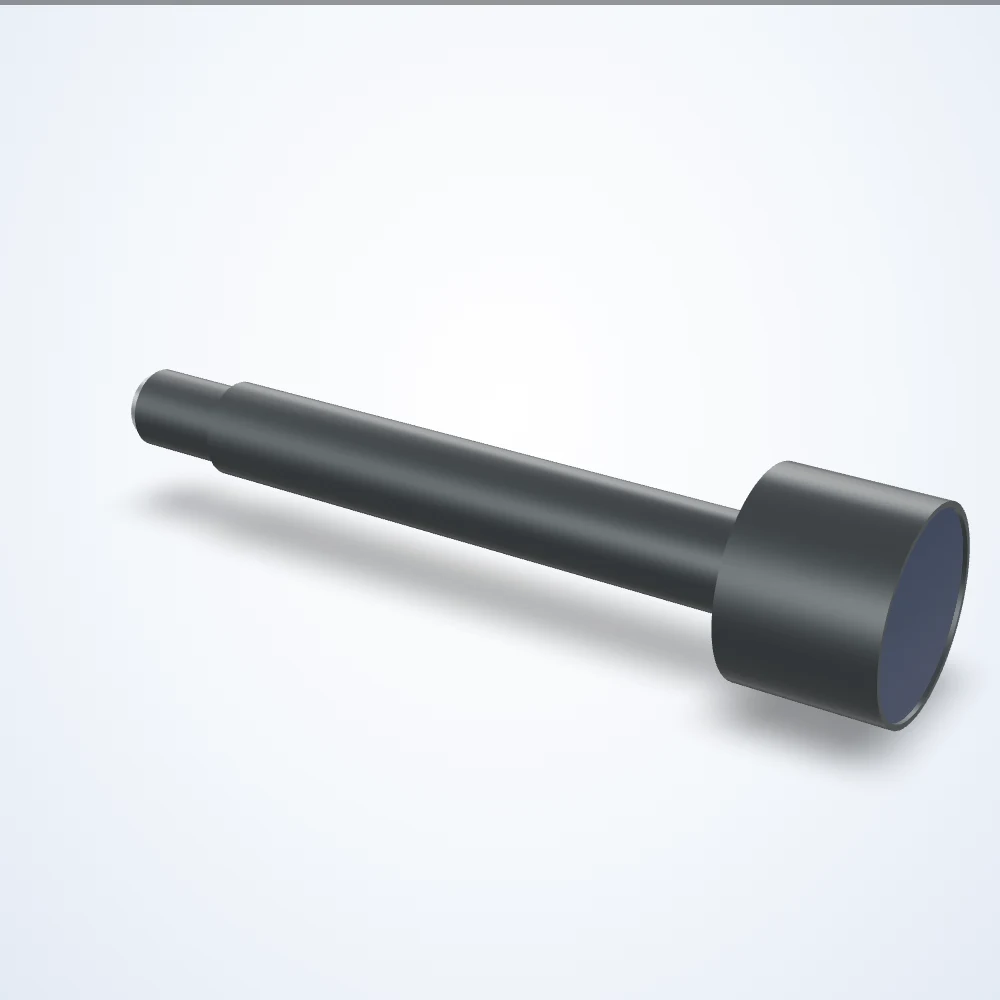

0.157× telecentric lens, 2/3", C-Mount (LS-TCL-0409)
Model LS-TCL-0409
0.157× telecentric lens, 2/3", C-Mount. Working distance 50.3 mm. Depth of field 16.8 mm.
Specifications
| Model | LS-TCL-0409 |
|---|---|
| Depth Of Field | 16.8 mm |
| Distortion Maximum (%) | < 0.08 |
| Distortion Typical (%) | < 0.03 |
| FoV @ 1/1.8″ | 45.41 x 33.95 mm |
| FoV @ 1/2.0″ | 40.76 x 30.57 mm |
| FoV @ 1/2.5″ | 36.31 x 27.26 mm |
| FoV @ 1/3.0″ | 30.57 x 22.93 mm |
| FoV @ 2/3″ | 54.14 x 45.16 mm |
| Image Circle Diameter | 11 mm |
| Lens Type | Telecentric |
| Magnification | 0.157× |
| Resolution (Pixel Size) | 32 μm |
| Telecentricity Maximum | 0.08° |
| Telecentricity Typical | < 0.05° |
| Working Distance | 50.3 mm |
| Working ƒ/N | f/8 |
| Mount | C |
| Weight (g) | 3132 |
| Dimensions (dia. x length, mm) | 80 x 332.69 |
| Type | coaxial-illumination telecentric (beam-splitter cube + side illuminator arm) |
| Front | square cube face 108 x 108.28 mm, clear aperture Ø76.14 |
| Clamping diameters | Ø80 h8, Ø61 h8, Ø37.80 h8 |
| Mount ring diameter | Ø40 |
| Cube depth | 131.28 mm |
| Illuminator arm length | 318.82 mm |
| Mounting holes | 3x M5 depth 10 per side |
| Locking bush | yes |
