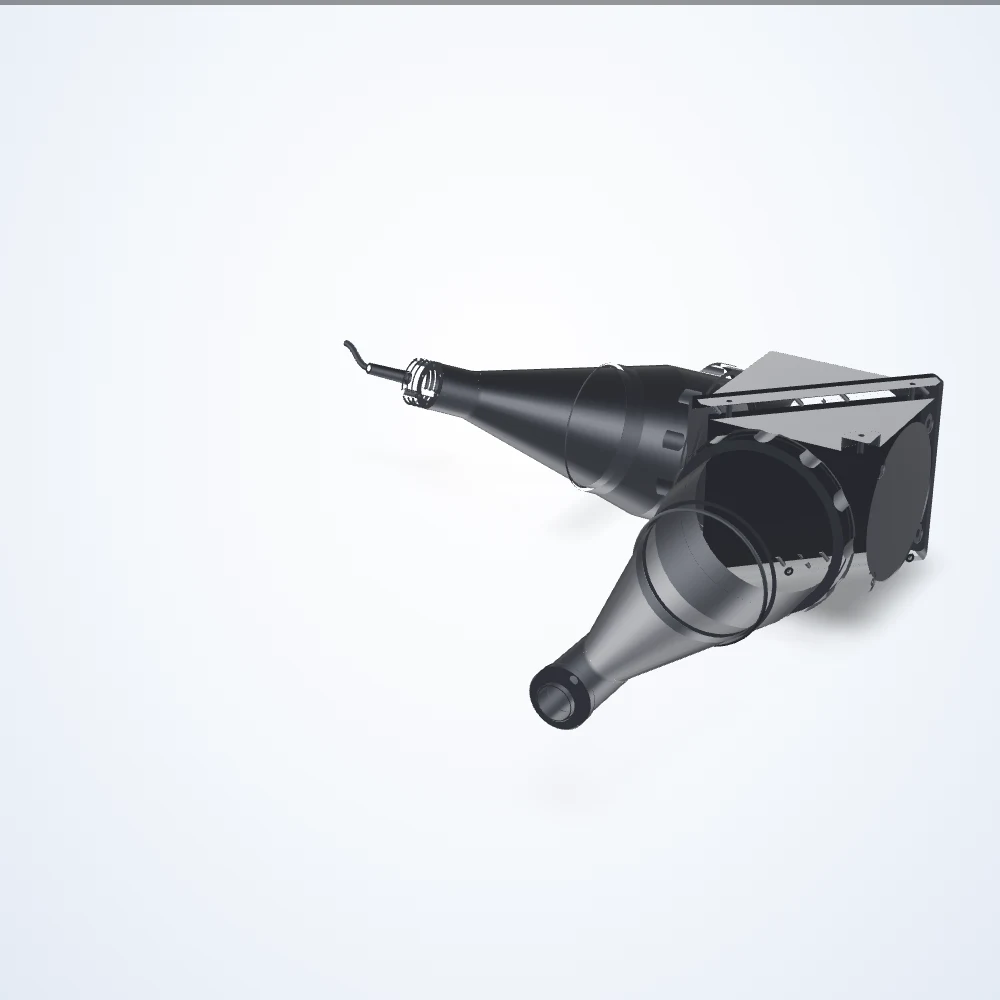

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.11× telecentric lens, 2/3", C-Mount (LS-TCL-0406)
Model LS-TCL-0406
0.11× telecentric lens, 2/3", C-Mount. Working distance 89.6 mm. Depth of field 34.2 mm.
Specifications
| Model | LS-TCL-0406 |
|---|---|
| Depth Of Field | 34.2 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.02 |
| Filter Thread | No Filter Threads |
| FoV @ 1/1.8″ | 64.82 x 48.45 mm |
| FoV @ 1/2.0″ | 58.18 x 43.64 mm |
| FoV @ 1/2.5″ | 51.82 x 38.91 mm |
| FoV @ 1/3.0″ | 43.64 x 32.73 mm |
| FoV @ 2/3″ | 77.27 x 64.45 mm |
| Image Circle Diameter | 11 mm |
| Imager Format | 2/3" |
| Lens Type | Telecentric |
| Magnification | 0.11× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 46 μm |
| Telecentricity Maximum | 0.08° |
| Telecentricity Typical | < 0.04° |
| Working Distance | 89.6 mm |
| Working ƒ/N | f/8 |
