Telecentric lenses

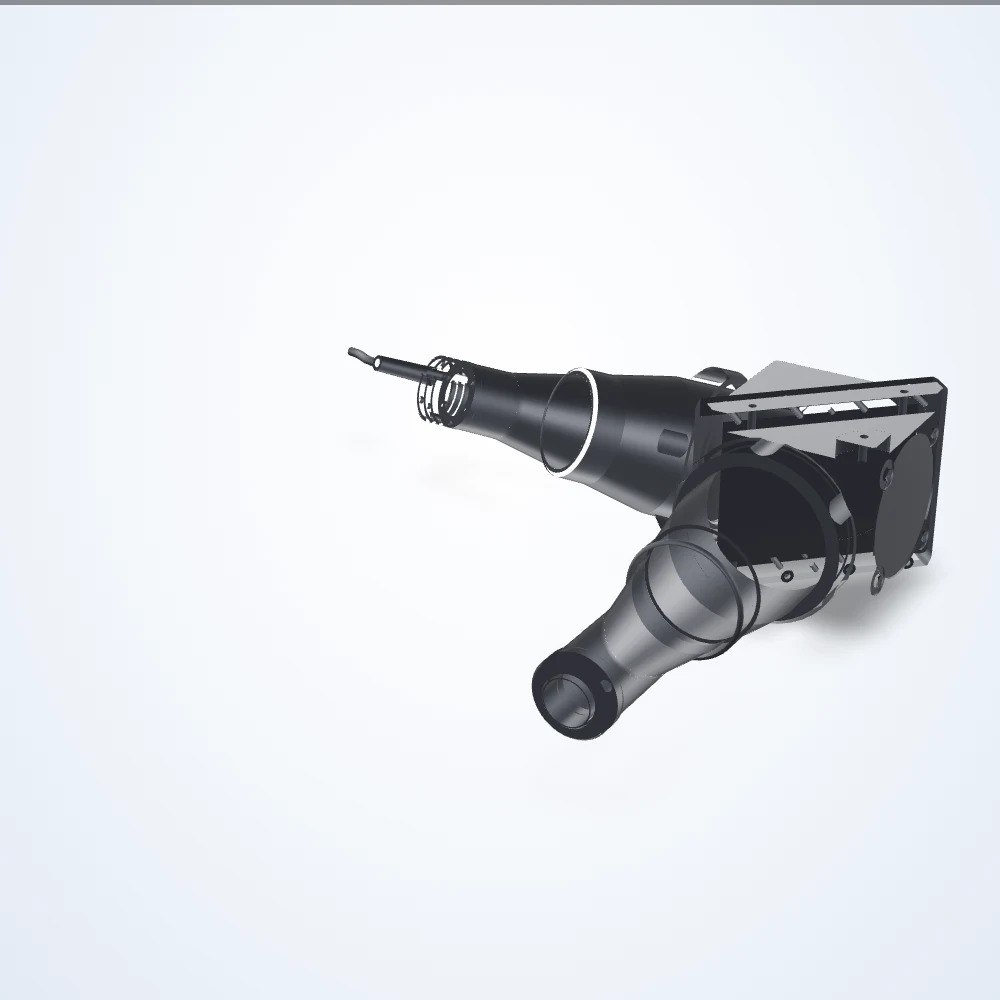

0.184× telecentric lens, 2/3", C-mount (LS-TCL-0411)
Model LS-TCL-0411
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8; working distance 35.6 mm; depth of field 12.2 mm.
Specifications
| Model | LS-TCL-0411 |
|---|---|
| Magnification | 0.184× |
| Working distance | 35.6 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 12.2 mm |
| Connector | M8 |
| Dimensions approximate | 299.2 x 102 x 284.8 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 38.75 x 28.97 mm |
| Fov @ 1/2.0″ | 34.78 x 26.09 mm |
| Fov @ 1/2.5″ | 30.98 x 23.26 mm |
| Fov @ 1/2″ | 34.78 x 26.09 mm |
| Fov @ 1/3.0″ | 26.09 x 19.57 mm |
| Fov @ 2/3″ | 46.20 x 38.53 mm |
| Image circle | 11 mm |
| Installation location | Indoor Use Only |
| LED current | 350 mA |
| LED voltage | 3.3 Volts |
| LED voltage maximum | 4 Volts |
| Lens type | Telecentric |
| Light color | Green |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Power consumption maximum | 2.5 Watts |
| Pulse current maximum | 2000 mA |
| Resolution (pixel size) | 28 μm |
| Spectral fwhm | 40 nm |
| Storage temperature range | 0 to 50°C |
| Supply voltage | 12 - 24 Volts |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Wavelength | 525 nm |
| Working ƒ/n | f/8 |
| Weight | 2486 Grams |
