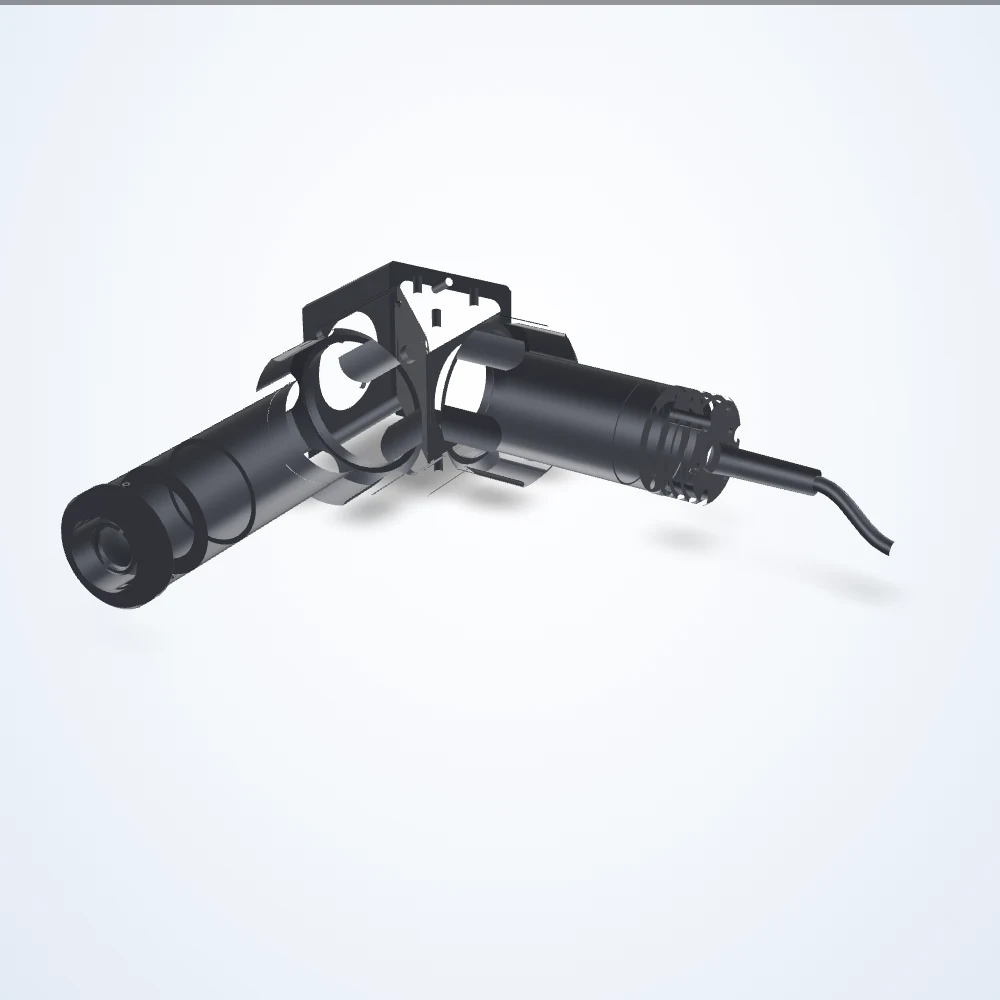

1.5× telecentric lens, 2/3", C-mount (LS-TCL-0424)
Model LS-TCL-0424
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8; working distance 78 mm; depth of field 0.4 mm.
Specifications
| Model | LS-TCL-0424 |
|---|---|
| Magnification | 1.5× |
| Working distance | 78 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 0.4 mm |
| Connector | M8 |
| Dimensions approximate | 195.4 x 64 x 155 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 4.75 x 3.55 mm |
| Fov @ 1/2.0″ | 4.27 x 3.20 mm |
| Fov @ 1/2.5″ | 3.80 x 2.85 mm |
| Fov @ 1/2″ | 4.27 x 3.20 mm |
| Fov @ 1/3.0″ | 3.20 x 2.40 mm |
| Fov @ 2/3″ | 5.67 x 4.73 mm |
| Image circle | 11 mm |
| Installation location | Indoor Use Only |
| LED current | 350 mA |
| LED voltage | 2.8 Volts |
| Lens type | Telecentric |
| Light color | White |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Power consumption maximum | 2.5 Watts |
| Pulse current maximum | 2000 mA |
| Resolution (pixel size) | 7 μm |
| Storage temperature range | 0 to 50°C |
| Supply voltage | 12 - 24 Volts |
| Telecentricity maximum | 0.06° |
| Telecentricity typical | < 0.04° |
| Wavelength | 6000 K |
| Working ƒ/n | f/16 |
| Weight | 1028 Grams |
