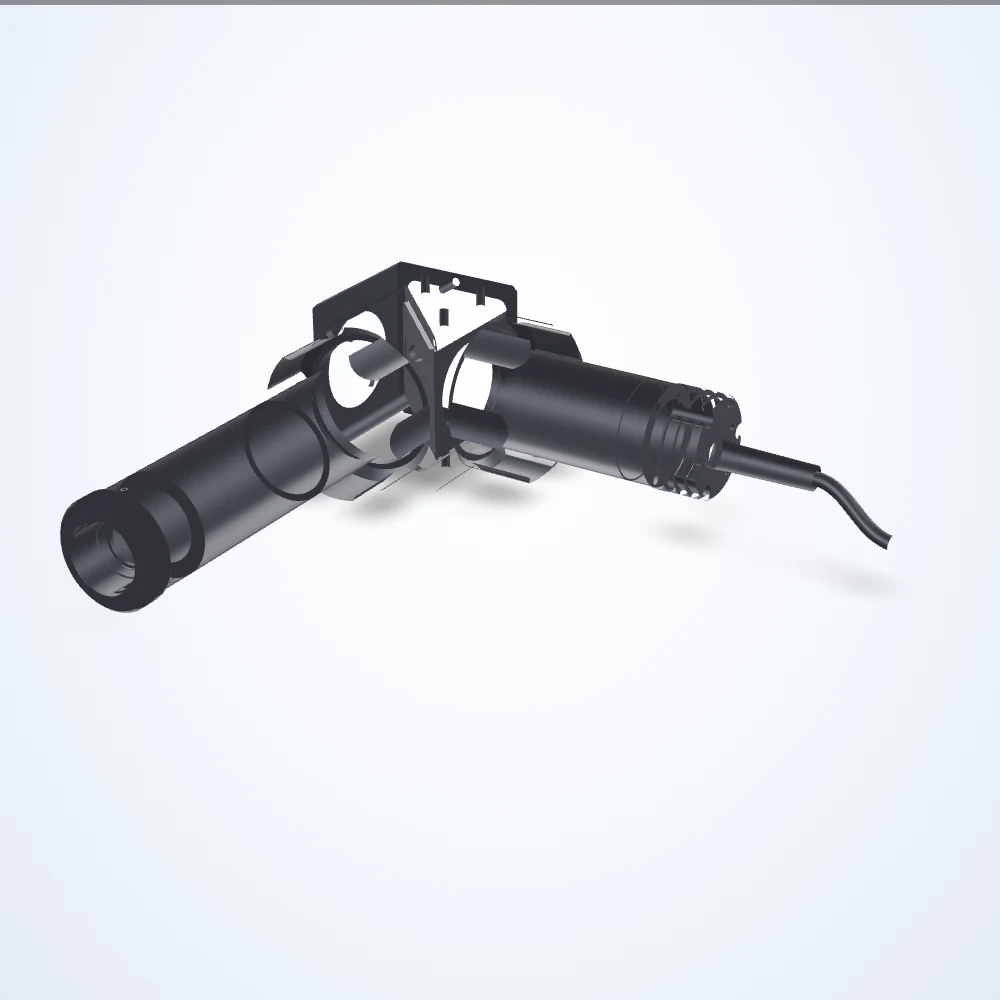

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.66× telecentric lens, 2/3", C-mount (LS-TCL-0417)
Model LS-TCL-0417
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8; working distance 78 mm; depth of field 1.4 mm.
Specifications
| Model | LS-TCL-0417 |
|---|---|
| Magnification | 0.66× |
| Working distance | 78 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 1.4 mm |
| Connector | M8 |
| Dimensions approximate | 204.1 x 64 x 155 mm |
| Distortion maximum (%) | < 0.2 |
| Distortion typical (%) | < 0.1 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 10.80 x 8.08 mm |
| Fov @ 1/2.0″ | 9.70 x 7.27 mm |
| Fov @ 1/2.5″ | 8.64 x 6.48 mm |
| Fov @ 1/2″ | 9.70 x 7.27 mm |
| Fov @ 1/3.0″ | 7.27 x 5.45 mm |
| Fov @ 2/3″ | 12.88 x 10.74 mm |
| Image circle | 11 mm |
| Installation location | Indoor Use Only |
| LED current | 350 mA |
| LED voltage | 3.3 Volts |
| LED voltage maximum | 4 Volts |
| Lens type | Telecentric |
| Light color | Green |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Power consumption maximum | 2.5 Watts |
| Pulse current maximum | 2000 mA |
| Resolution (pixel size) | 12 μm |
| Spectral fwhm | 40 nm |
| Storage temperature range | 0 to 50°C |
| Supply voltage | 12 - 24 Volts |
| Telecentricity maximum | 0.06° |
| Telecentricity typical | < 0.04° |
| Wavelength | 525 nm |
| Working ƒ/n | f/8 |
| Weight | 1025 Grams |
