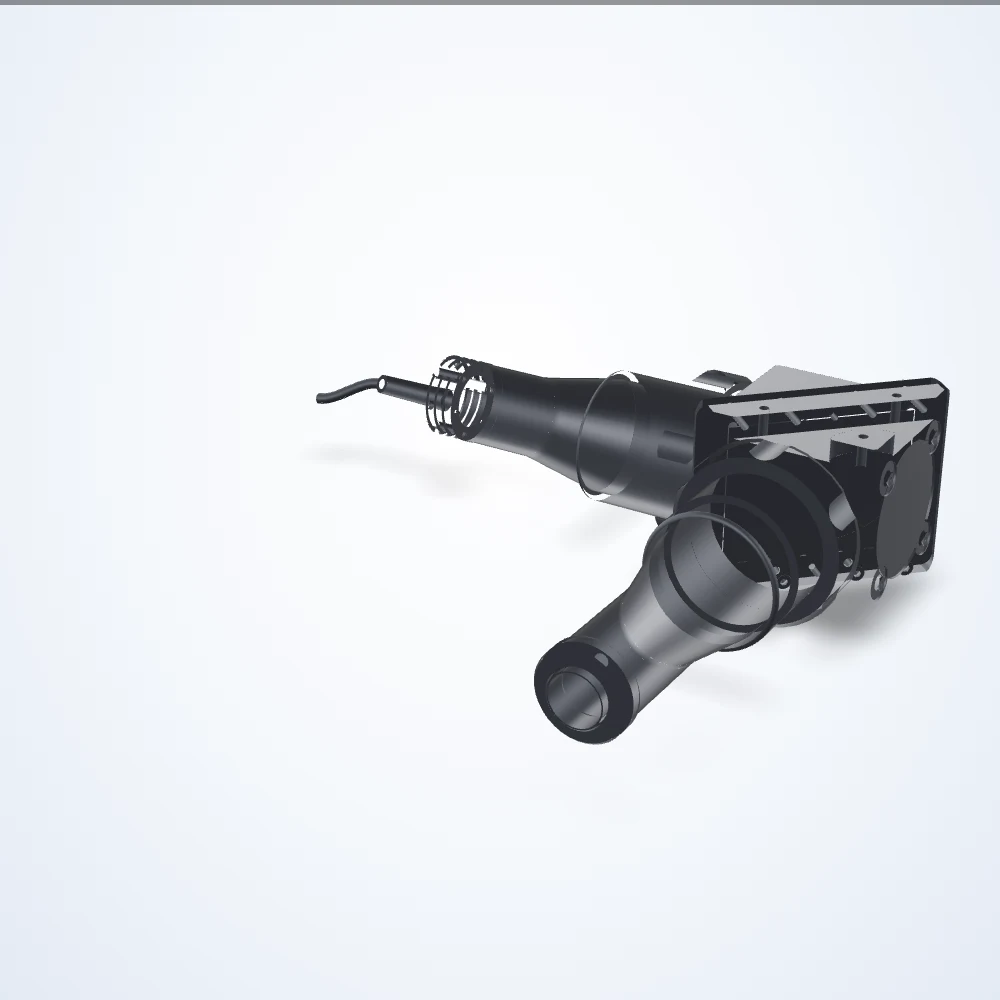

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.243× telecentric lens, 2/3", C-mount (LS-TCL-0414)
Model LS-TCL-0414
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8; working distance 20 mm; depth of field 7 mm.
Specifications
| Model | LS-TCL-0414 |
|---|---|
| Magnification | 0.243× |
| Working distance | 20 mm |
| Sensor format | 2/3" |
| Mount | C-Mount |
| Depth of field | 7 mm |
| Connector | M8 |
| Dimensions approximate | 248.3 x 88 x 235.5 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Fov @ 1/1.8″ | 29.34 x 21.93 mm |
| Fov @ 1/2.0″ | 26.34 x 19.75 mm |
| Fov @ 1/2.5″ | 23.46 x 17.61 mm |
| Fov @ 1/2″ | 26.34 x 19.75 mm |
| Fov @ 1/3.0″ | 19.75 x 14.81 mm |
| Fov @ 2/3″ | 34.98 x 29.18 mm |
| Image circle | 11 mm |
| Installation location | Indoor Use Only |
| LED current | 350 mA |
| LED voltage | 2.8 Volts |
| Lens type | Telecentric |
| Light color | White |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Power consumption maximum | 2.5 Watts |
| Pulse current maximum | 2000 mA |
| Resolution (pixel size) | 21 μm |
| Storage temperature range | 0 to 50°C |
| Supply voltage | 12 - 24 Volts |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.04° |
| Wavelength | 6000 K |
| Working ƒ/n | f/8 |
| Weight | 1811 Grams |
