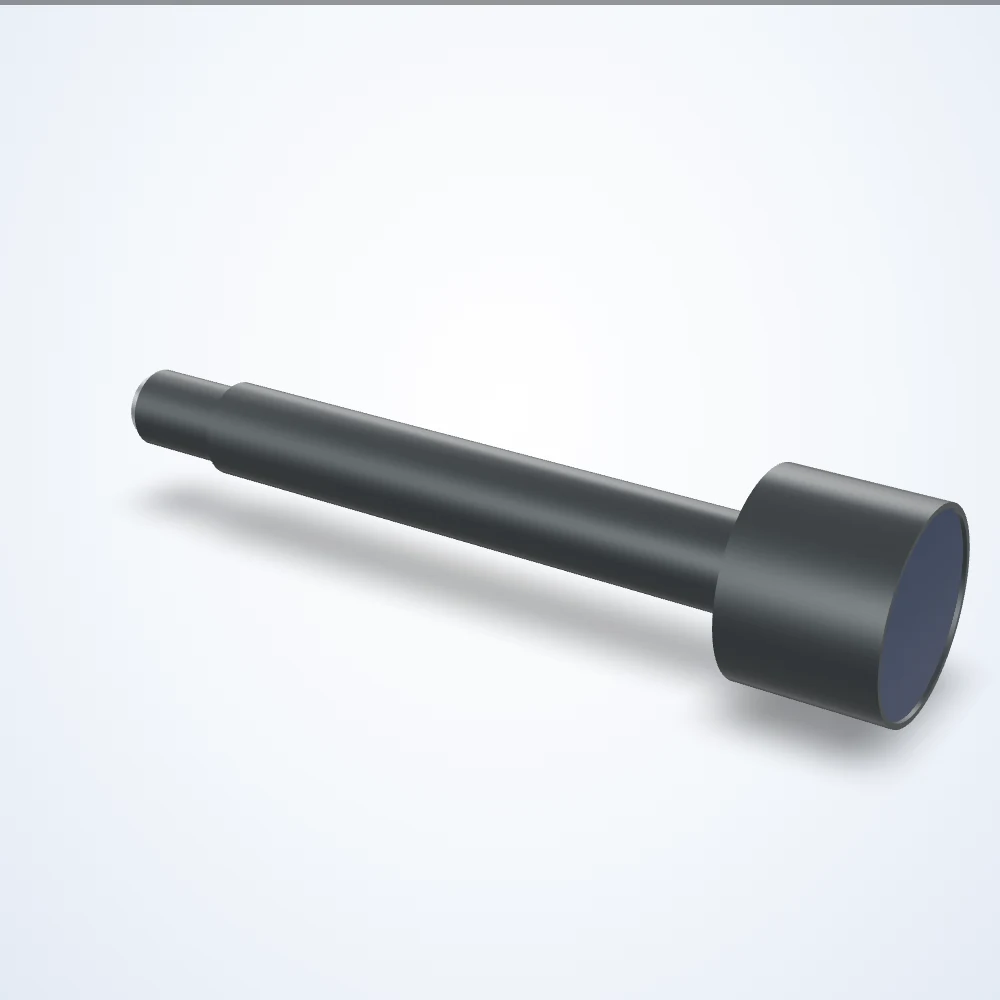

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.157× telecentric lens, 2/3", C-mount (LS-TCL-0410)
Model LS-TCL-0410
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: m8.
Specifications
| Model | LS-TCL-0410 |
|---|---|
| Mount | C-mount |
| Connector | M8 |
| Clamping diameters | Ø80 h8, Ø61 h8, Ø37.80 h8 |
| Cube depth | 131.28 mm |
| Dimensions (dia. x length, mm) | 80 x 336.31 |
| Dimensions approximate | 336.3 x 108 x 318.8 mm |
| Distortion maximum (%) | < 0.08 |
| Distortion typical (%) | < 0.03 |
| Fov @ 1/1.8″ | 45.41 x 33.95 mm |
| Fov @ 1/2.0″ | 40.76 x 30.57 mm |
| Fov @ 1/2.5″ | 36.31 x 27.26 mm |
| Fov @ 1/2″ | 40.76 x 30.57 mm |
| Fov @ 1/3.0″ | 30.57 x 22.93 mm |
| Fov @ 2/3″ | 54.14 x 45.16 mm |
| Front | square cube face 108 x 108.28 mm, clear aperture Ø76.14 |
| Illuminator arm length | 318.82 mm |
| Image circle | 11 mm |
| Installation location | Indoor Use Only |
| LED current | 350 mA |
| LED voltage | 2.8 Volts |
| Lens type | Telecentric |
| Light color | White |
| Locking bush | yes |
| Mount ring diameter | Ø40 |
| Mounting holes | 3x M5 depth 10 per side |
| Operating relative humidity (%) | 20-85 Non Condensing |
| Operating temperature range | 0 to 40°C |
| Power consumption maximum | 2.5 Watts |
| Pulse current maximum | 2000 mA |
| Resolution (pixel size) | 32 μm |
| Storage temperature range | 0 to 50°C |
| Supply voltage | 12 - 24 Volts |
| Telecentricity maximum | 0.08° |
| Telecentricity typical | < 0.05° |
| Type | coaxial-illumination telecentric (beam-splitter cube + side illuminator arm) |
| Wavelength | 6000 K |
| Working ƒ/n | f/8 |
| Weight (g) | 3132 |
