Home / Lenses / Telecentric lenses / 0.138× telecentric lens, 2/3", C-Mount

0.138× telecentric lens, 2/3", C-Mount (LS-TCL-0408)

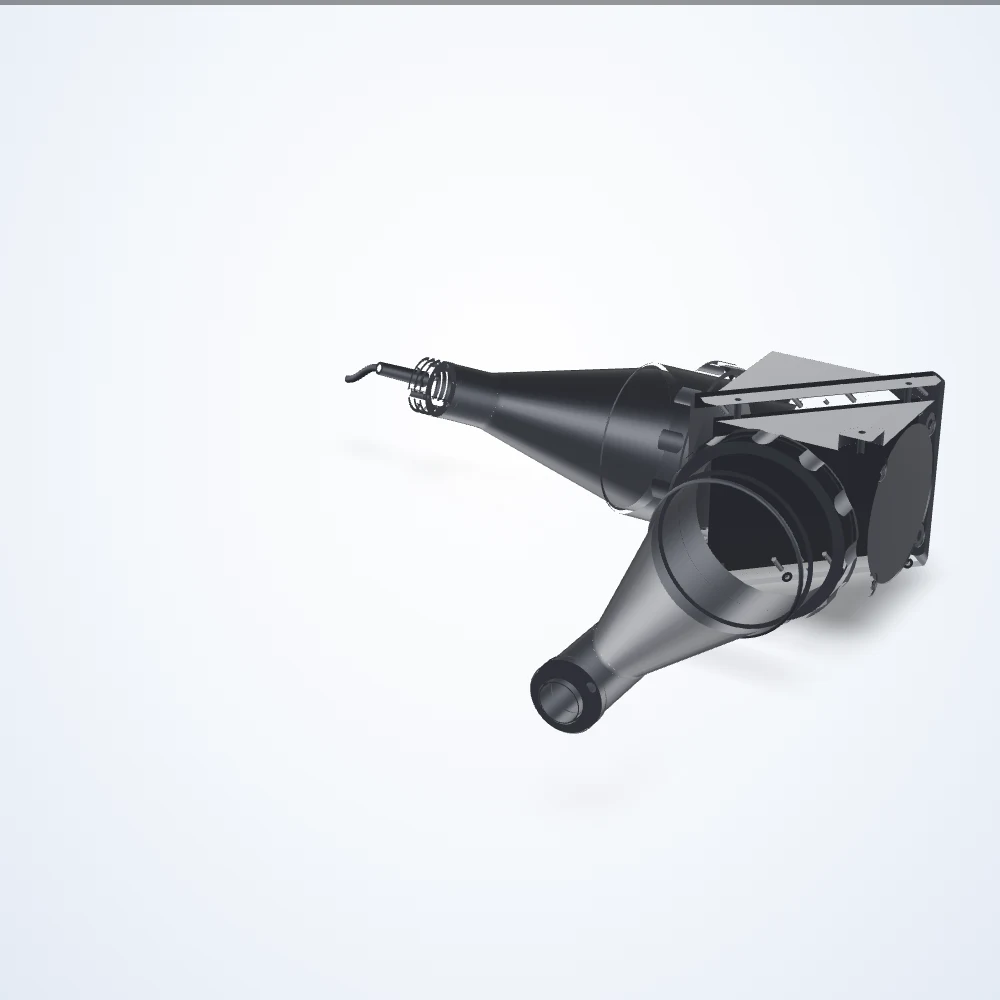

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.138× telecentric lens, 2/3", C-Mount (LS-TCL-0408)

Model LS-TCL-0408

0.138× telecentric lens, 2/3", C-Mount. Working distance 64.4 mm. Depth of field 21.7 mm.

Datasheet (PDF) - LS-TCL-0408 3D model (STEP) - LS-TCL-0408

Specifications

Model	LS-TCL-0408
Depth Of Field	21.7 mm
Distortion Maximum (%)	< 0.08
Distortion Typical (%)	< 0.03
Filter Thread	No Filter Threads
FoV @ 1/1.8″	51.67 x 38.62 mm
FoV @ 1/2.0″	46.38 x 34.78 mm
FoV @ 1/2.5″	41.30 x 31.01 mm
FoV @ 1/3.0″	34.78 x 26.09 mm
FoV @ 2/3″	61.59 x 51.38 mm
Image Circle Diameter	11 mm
Imager Format	2/3"
Lens Type	Telecentric
Magnification	0.138×
Mount	C-Mount
Resolution (Pixel Size)	37 μm
Telecentricity Maximum	0.08°
Telecentricity Typical	< 0.05°
Working Distance	64.4 mm
Working ƒ/N	f/8

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
