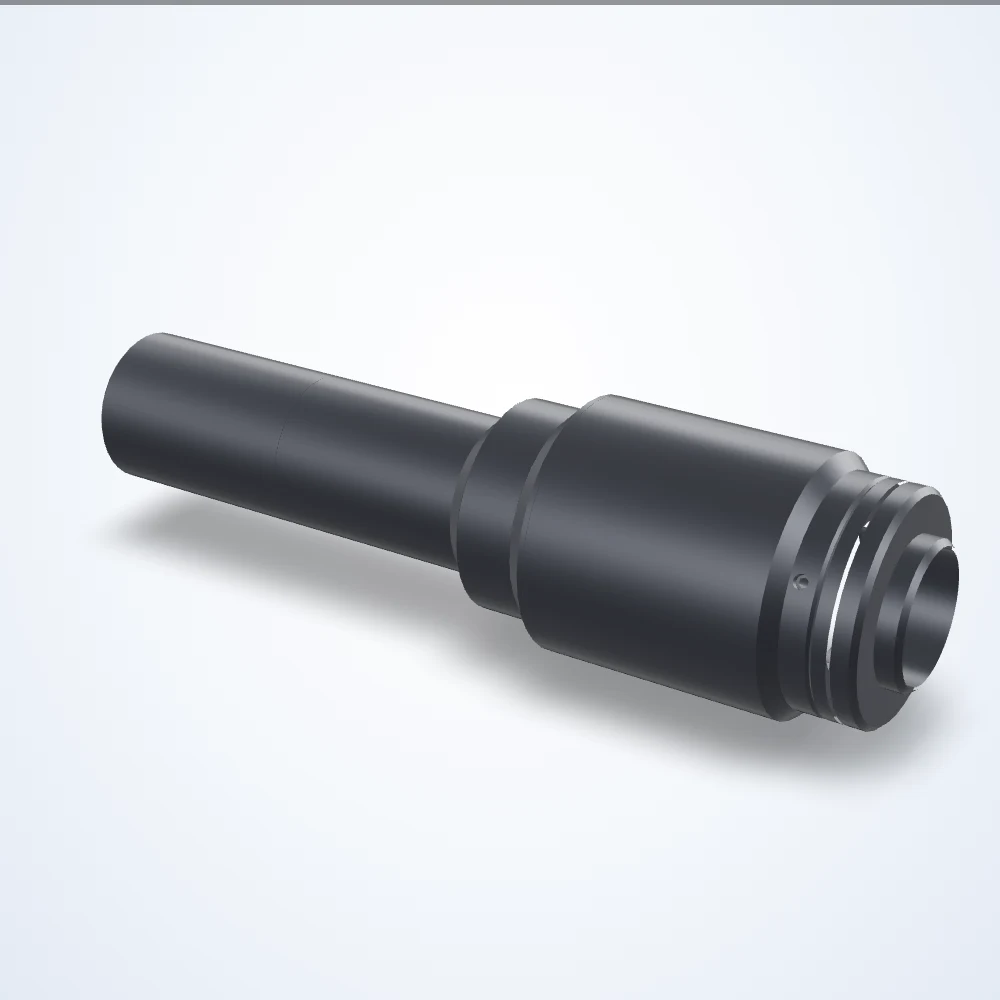

4× telecentric lens, 4/3", C-mount (LS-TCL-0290)

Model LS-TCL-0290

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 56 mm; depth of field 0.1 mm.

Datasheet (PDF) - LS-TCL-0290 3D model (STEP) - LS-TCL-0290

Specifications

Model	LS-TCL-0290
Magnification	4×
Working distance	56 mm
Sensor format	4/3"
Mount	C-mount
Depth of field	0.1 mm
Dimensions approximate	155.2 x 28 x 28 mm
Distortion maximum (%)	< 0.1
Distortion typical (%)	< 0.08
Filter thread	No Filter Threads
FOV @ 1.1″	3.54 x 2.59 mm
FOV @ 1″	3.55 x 1.88 mm
Fov @ 4/3″	4.73 x 2.65 mm
Front diameter	28 mm
Image circle	22 mm
Lens type	Telecentric
Operating temperature range	0 to 40°C
Resolution (pixel size)	3 μm
Storage temperature range	0 to 50°C
Telecentricity maximum	0.10°
Telecentricity typical	< 0.08°
Working ƒ/n	f/18
Weight	264 Grams
