Home / Lenses / Telecentric lenses / 1.054× telecentric lens, 4/3", F-Mount

1.054× telecentric lens, 4/3", F-Mount (LS-TCL-0300)

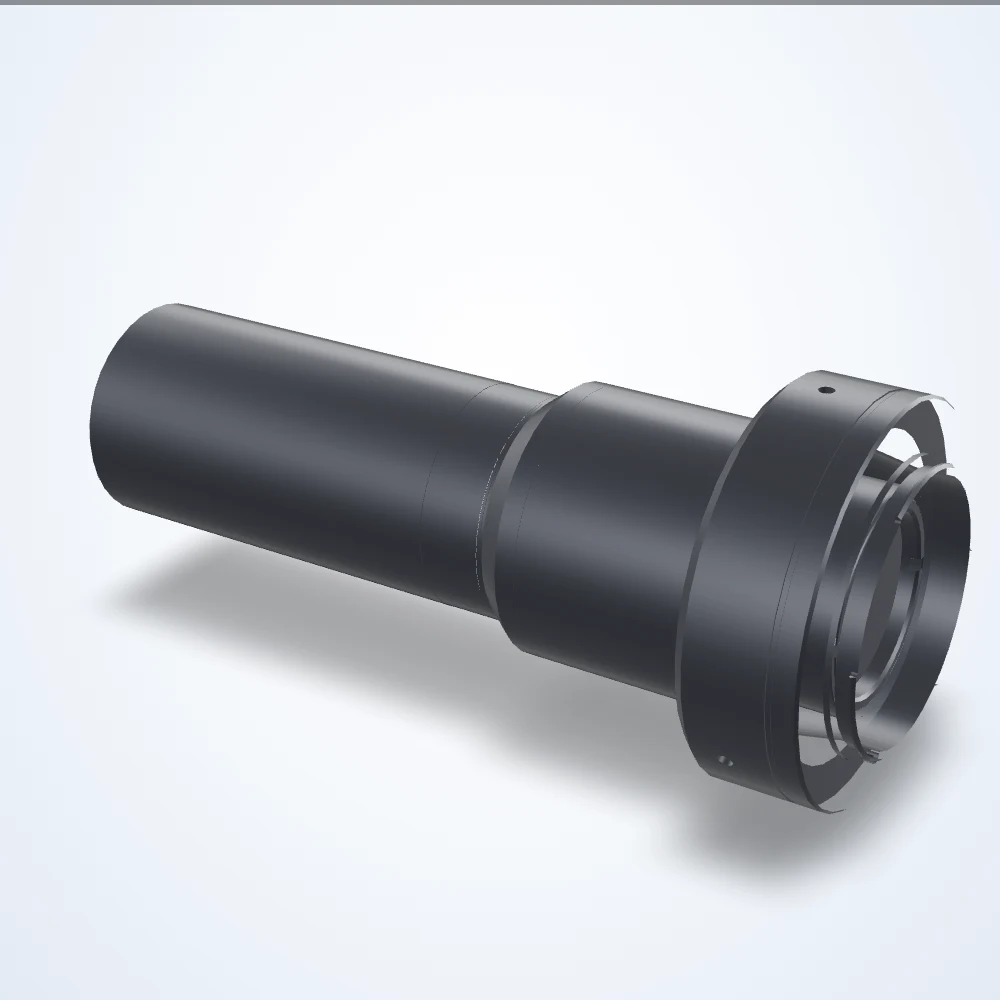

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

1.054× telecentric lens, 4/3", F-Mount (LS-TCL-0300)

Model LS-TCL-0300

1.054× telecentric lens, 4/3", F-Mount. Working distance 43.1 mm. Depth of field 0.7 mm.

Datasheet (PDF) - LS-TCL-0300 3D model (STEP) - LS-TCL-0300

Specifications

Model	LS-TCL-0300
Depth Of Field	0.7 mm
Distortion Maximum (%)	< 0.1
Distortion Typical (%)	< 0.05
Filter Thread	No Filter Threads
FoV @ 1″	13.46 x 7.13 mm
FoV @ 4/3″	17.96 x 10.07 mm
Fov @ 1.1″	13.43 x 9.84 mm
Front Diameter	37.7 mm
Image Circle Diameter	22 mm
Imager Format	4/3"
Lens Type	Telecentric
Magnification	1.054×
Mount	F-Mount
Resolution (Pixel Size)	10 μm
Telecentricity Maximum	0.10°
Telecentricity Typical	< 0.07°
Working Distance	43.1 mm
Working ƒ/N	f/16

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
