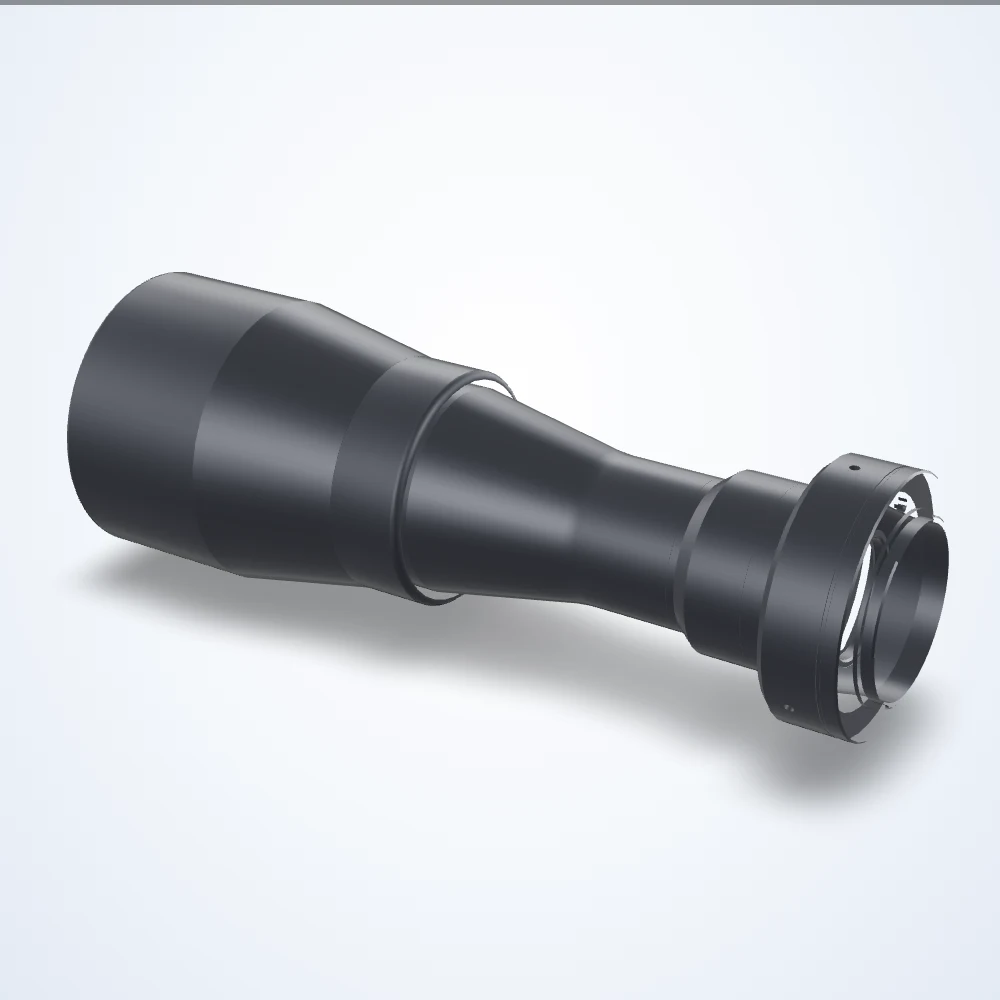

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.366× telecentric lens, 4/3", F-Mount (LS-TCL-0309)
Model LS-TCL-0309
0.366× telecentric lens, 4/3", F-Mount. Working distance 132.9 mm. Depth of field 3.1 mm.
Specifications
| Model | LS-TCL-0309 |
|---|---|
| Depth Of Field | 3.1 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.05 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 38.77 x 20.52 mm |
| FoV @ 4/3″ | 51.72 x 28.99 mm |
| Fov @ 1.1″ | 38.69 x 28.33 mm |
| Front Diameter | 75 mm |
| Image Circle Diameter | 22 mm |
| Imager Format | 4/3" |
| Lens Type | Telecentric |
| Magnification | 0.366× |
| Mount | F-Mount |
| Resolution (Pixel Size) | 14 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.08° |
| Working Distance | 132.9 mm |
| Working ƒ/N | f/11 |
