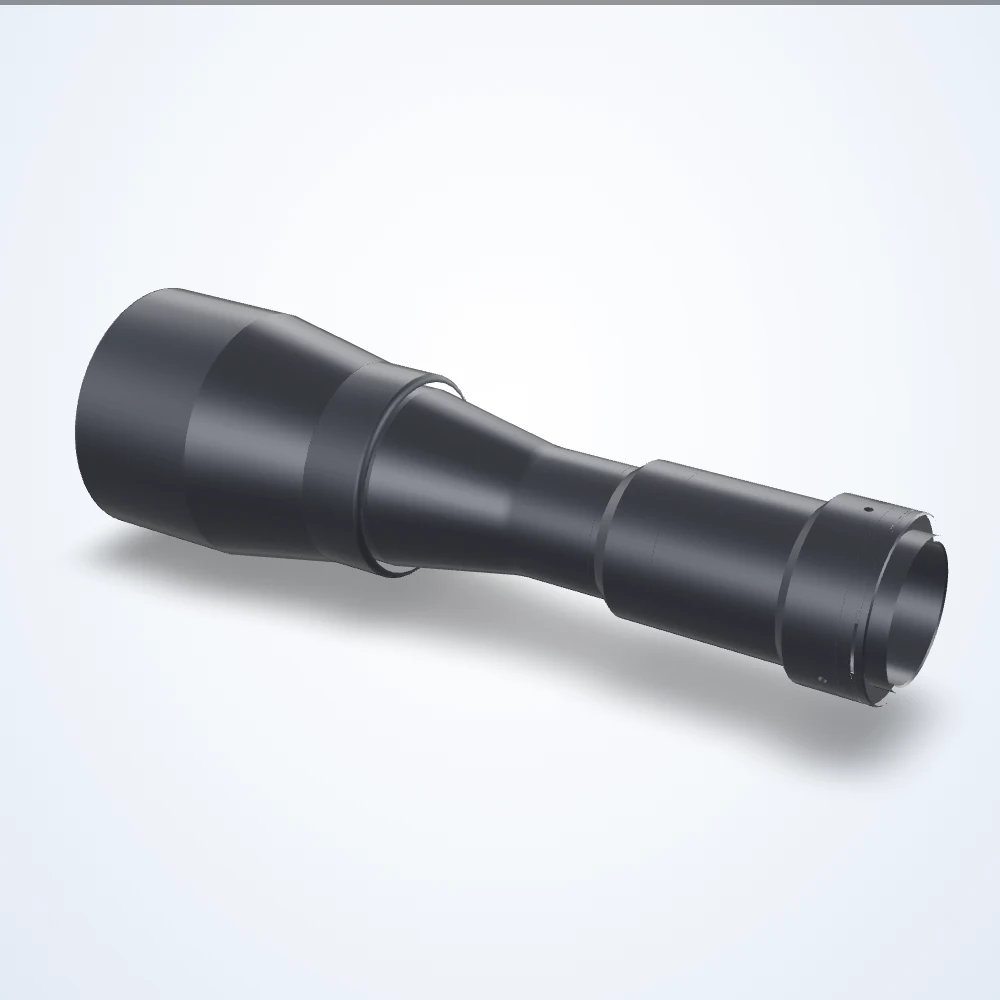

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.366× telecentric lens, 4/3", M42-mount (LS-TCL-0310)
Model LS-TCL-0310
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.9 mm; depth of field 3.1 mm.
Specifications
| Model | LS-TCL-0310 |
|---|---|
| Magnification | 0.366× |
| Working distance | 132.9 mm |
| Sensor format | 4/3" |
| Mount | M42-Mount |
| Depth of field | 3.1 mm |
| Dimensions approximate | 249.7 x 75 x 75 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 38.69 x 28.33 mm |
| Fov @ 1″ | 38.77 x 20.52 mm |
| Fov @ 4/3″ | 51.72 x 28.99 mm |
| Front diameter | 75 mm |
| Image circle | 22 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 14 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/11 |
| Weight | 804 Grams |
