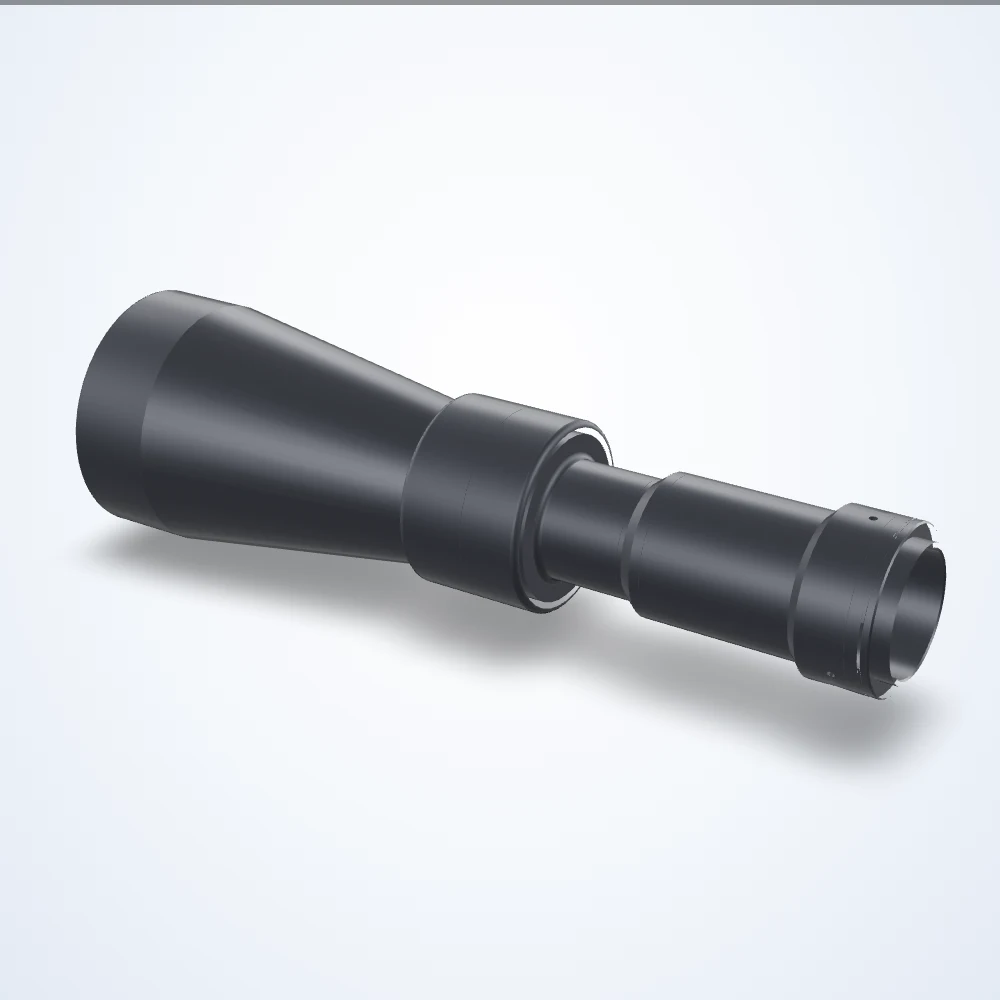

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.313× telecentric lens, 4/3", M42-Mount (LS-TCL-0313)
Model LS-TCL-0313
0.313× telecentric lens, 4/3", M42-Mount. Working distance 157.8 mm. Depth of field 4.2 mm.
Specifications
| Model | LS-TCL-0313 |
|---|---|
| Depth Of Field | 4.2 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.07 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 45.34 x 23.99 mm |
| FoV @ 4/3″ | 60.48 x 33.9 mm |
| Fov @ 1.1″ | 45.24 x 33.13 mm |
| Front Diameter | 80 mm |
| Image Circle Diameter | 22 mm |
| Imager Format | 4/3" |
| Lens Type | Telecentric |
| Magnification | 0.313× |
| Mount | M42-Mount |
| Resolution (Pixel Size) | 16 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.05° |
| Working Distance | 157.8 mm |
| Working ƒ/N | f/8 |
