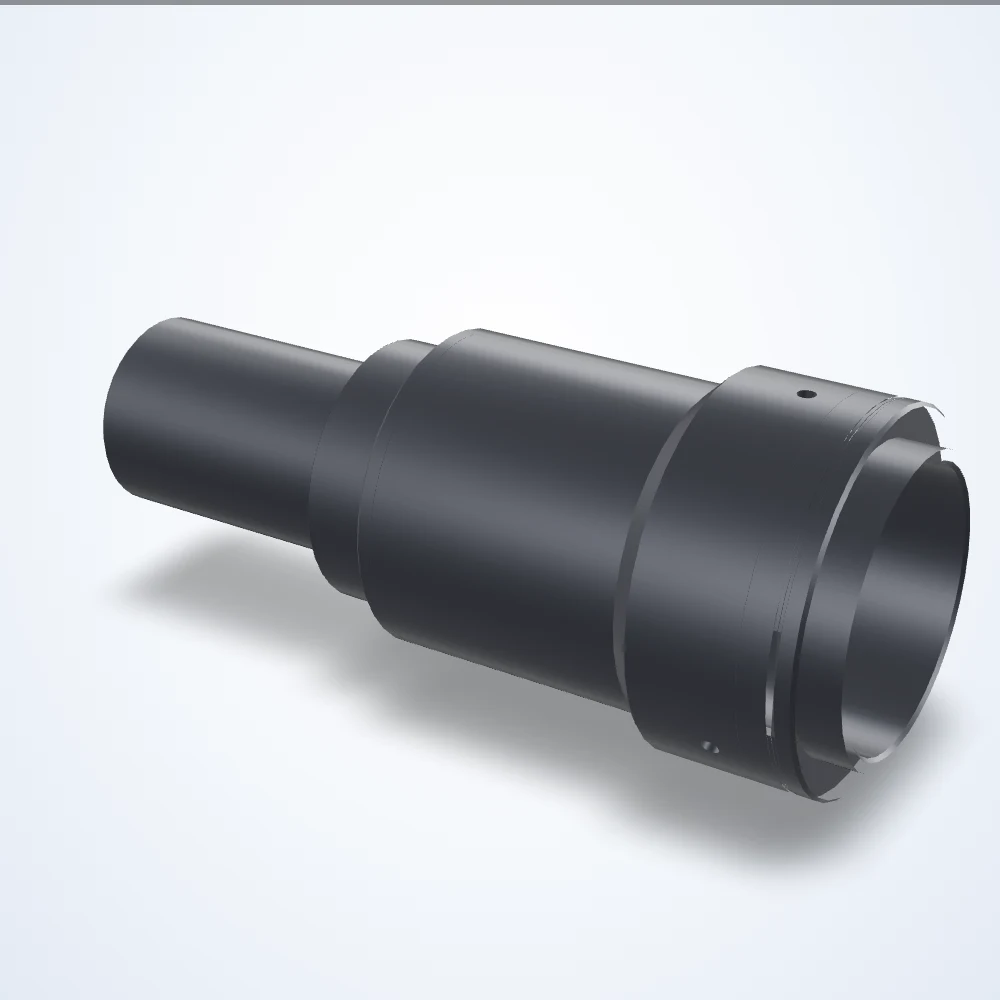

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
2× telecentric lens, 4/3", M42-mount (LS-TCL-0298)
Model LS-TCL-0298
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 62.2 mm; depth of field 0.2 mm.
Specifications
| Model | LS-TCL-0298 |
|---|---|
| Magnification | 2× |
| Working distance | 62.2 mm |
| Sensor format | 4/3" |
| Mount | M42-Mount |
| Depth of field | 0.2 mm |
| Dimensions approximate | 117.1 x 28 x 28 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 7.08 x 5.19 mm |
| Fov @ 1″ | 7.10 x 3.76 mm |
| Fov @ 4/3″ | 9.47 x 5.31 mm |
| Front diameter | 28 mm |
| Image circle | 22 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 5 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
| Working ƒ/n | f/16 |
| Weight | 281 Grams |
