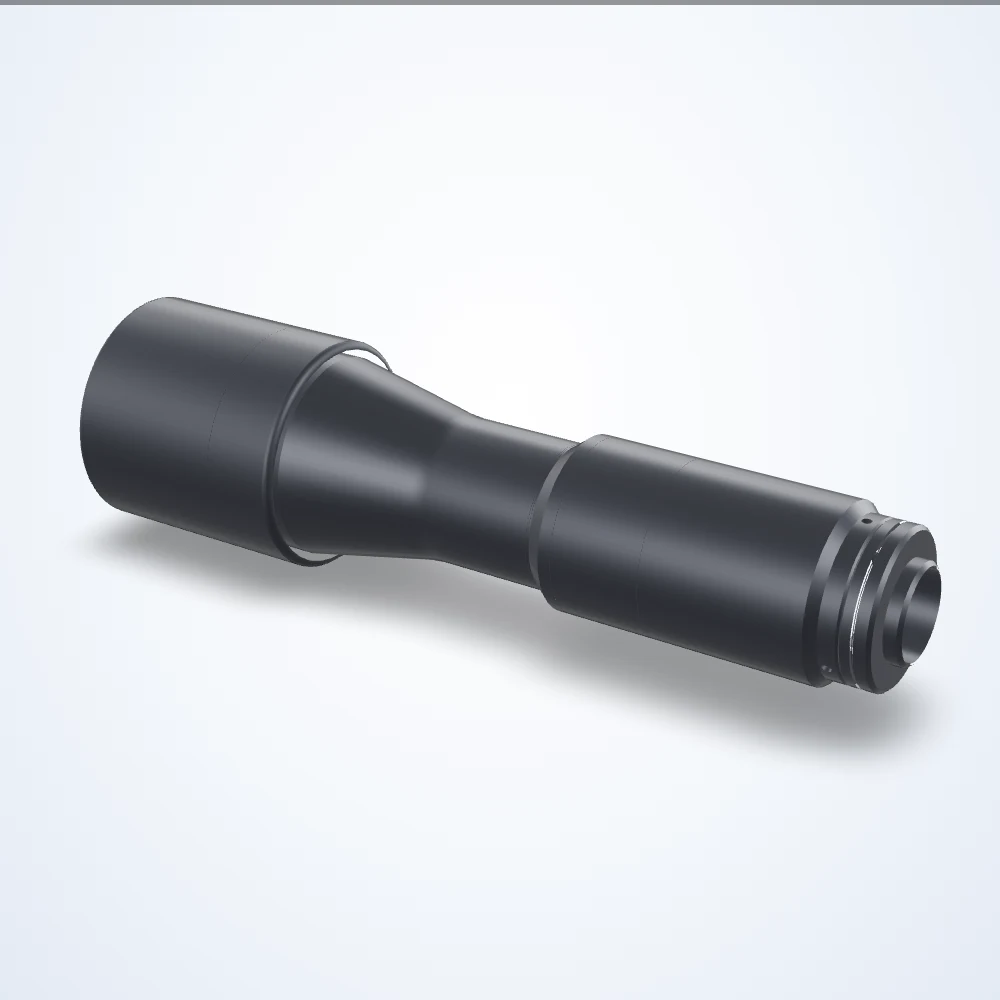

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.486× telecentric lens, 4/3", C-Mount (LS-TCL-0305)
Model LS-TCL-0305
0.486× telecentric lens, 4/3", C-Mount. Working distance 102.6 mm. Depth of field 2.4 mm.
Specifications
| Model | LS-TCL-0305 |
|---|---|
| Depth Of Field | 2.4 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.06 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 29.2 x 15.45 mm |
| FoV @ 4/3″ | 38.95 x 21.83 mm |
| Fov @ 1.1″ | 29.14 x 21.34 mm |
| Front Diameter | 61 mm |
| Image Circle Diameter | 22 mm |
| Imager Format | 4/3" |
| Lens Type | Telecentric |
| Magnification | 0.486× |
| Mount | C-Mount |
| Resolution (Pixel Size) | 14 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.04° |
| Working Distance | 102.6 mm |
| Working ƒ/N | f/11 |
