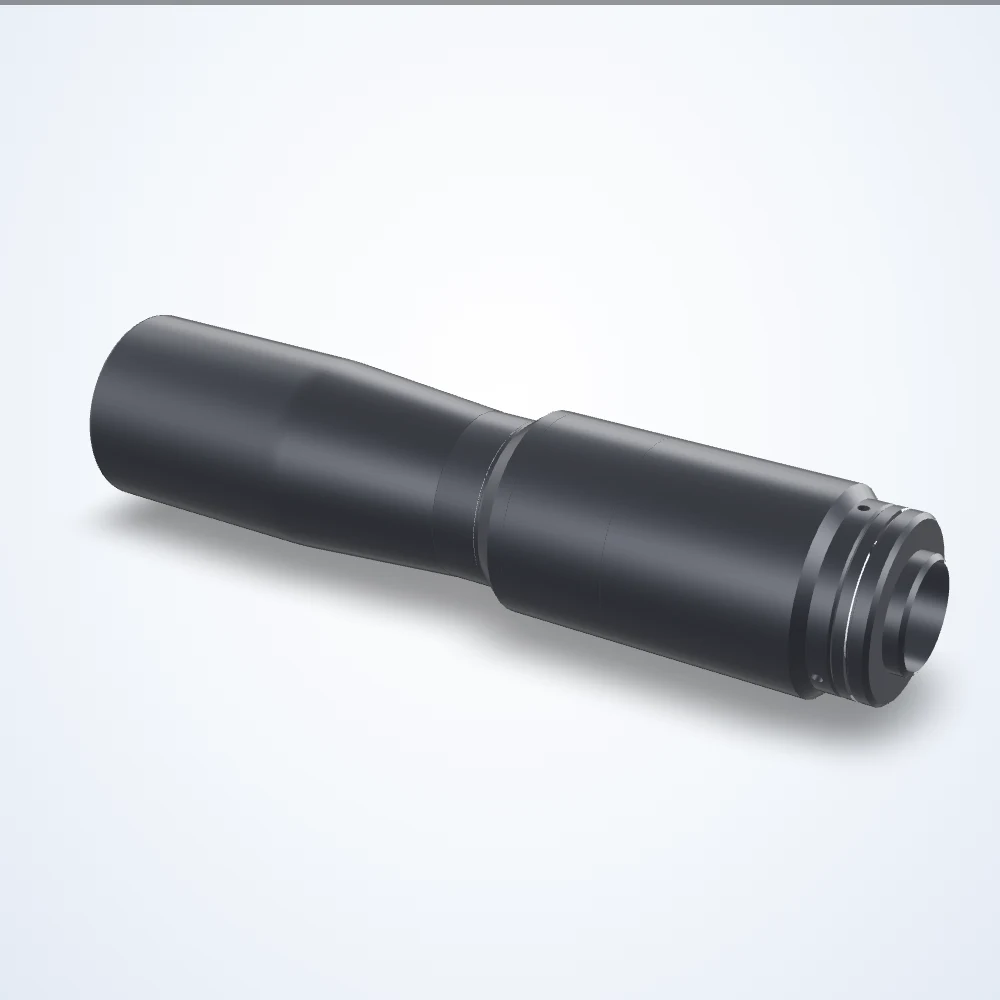

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.699× telecentric lens, 4/3", C-mount (LS-TCL-0302)
Model LS-TCL-0302
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 67.2 mm; depth of field 1.2 mm.
Specifications
| Model | LS-TCL-0302 |
|---|---|
| Magnification | 0.699× |
| Working distance | 67.2 mm |
| Sensor format | 4/3" |
| Mount | C-Mount |
| Depth of field | 1.2 mm |
| Dimensions approximate | 194.3 x 44 x 44 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Fov @ 1.1″ | 20.26 x 14.84 mm |
| Fov @ 1″ | 20.3 x 10.74 mm |
| Fov @ 4/3″ | 27.08 x 15.18 mm |
| Front diameter | 44 mm |
| Image circle | 22 mm |
| Lens type | Telecentric |
| Operating temperature range | 0 to 40°C |
| Resolution (pixel size) | 10 μm |
| Storage temperature range | 0 to 50°C |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.07° |
| Working ƒ/n | f/11 |
| Weight | 487 Grams |
