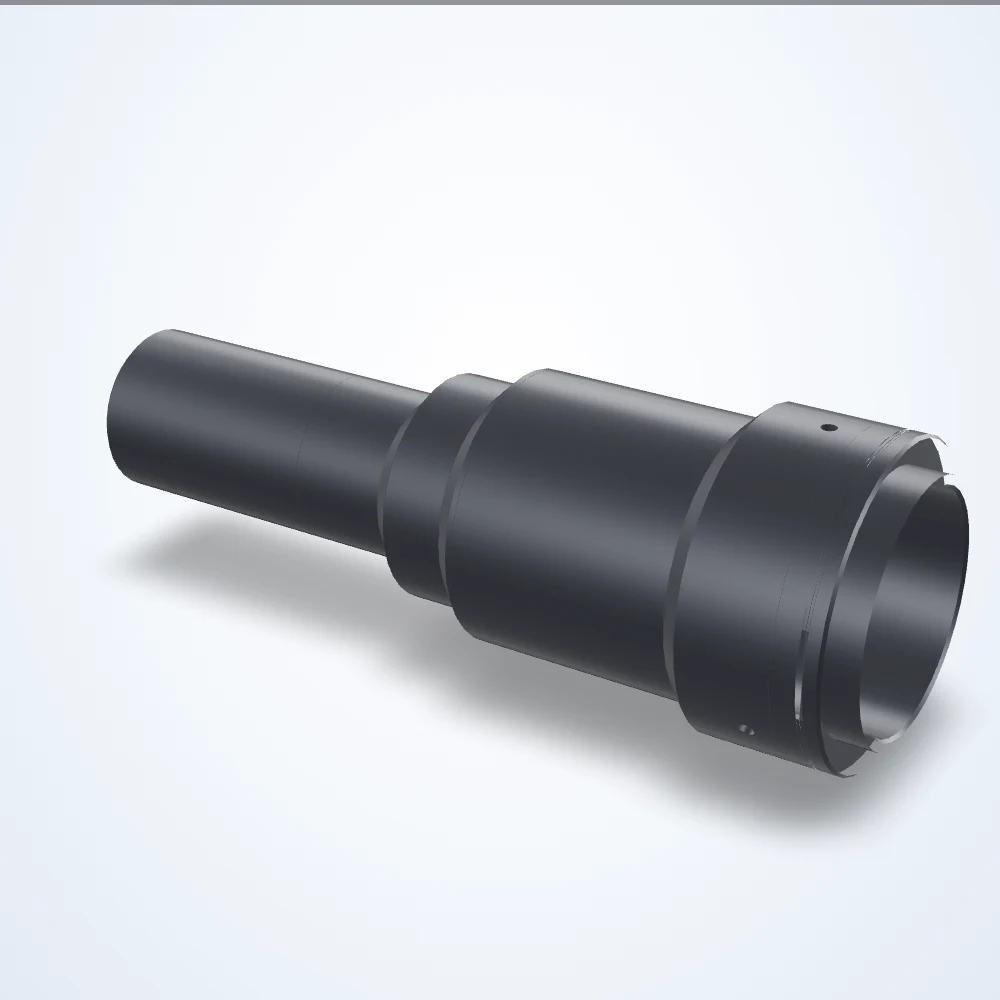

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
2.667× telecentric lens, 4/3", M42-Mount (LS-TCL-0295)
Model LS-TCL-0295
2.667× telecentric lens, 4/3", M42-Mount. Working distance 60.1 mm. Depth of field 0.1 mm.
Specifications
| Model | LS-TCL-0295 |
|---|---|
| Depth Of Field | 0.1 mm |
| Distortion Maximum (%) | < 0.1 |
| Distortion Typical (%) | < 0.08 |
| Filter Thread | No Filter Threads |
| FoV @ 1″ | 5.32 x 2.82 mm |
| FoV @ 4/3″ | 7.10 x 3.98 mm |
| Fov @ 1.1″ | 5.31 x 3.89 mm |
| Front Diameter | 28 mm |
| Image Circle Diameter | 22 mm |
| Imager Format | 4/3" |
| Lens Type | Telecentric |
| Magnification | 2.667× |
| Mount | M42-Mount |
| Resolution (Pixel Size) | 4 μm |
| Telecentricity Maximum | 0.10° |
| Telecentricity Typical | < 0.08° |
| Working Distance | 60.1 mm |
| Working ƒ/N | f/16 |
