Low-distortion M12 (S-mount) lenses

Check distortion at the intended field

Find board-camera lenses with both an M12 mount classification and a low-distortion type classification. Compare field of view, sensor coverage and the model-specific distortion data for compact imaging.

All M12 board lenses

49 models Configure a systemAll lenses
Low-distortion M12 (S-mount) lenses

1-24 of 49 models

Products

Compare

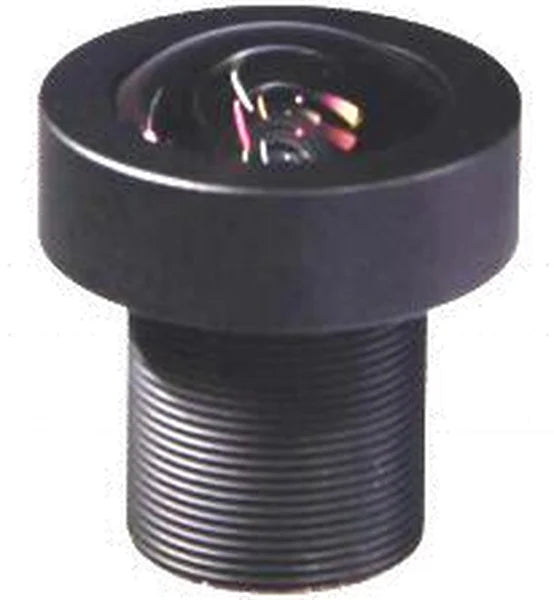

LS-MBL-01593.3 mm, 1/2.3", 16 MP, M12-mount Low-Distortion M12 lens 3.3 mmM121/2.3"F2.8 Fixed Iris16 Megapixel-$109.00 Ships in 2-3 weeks

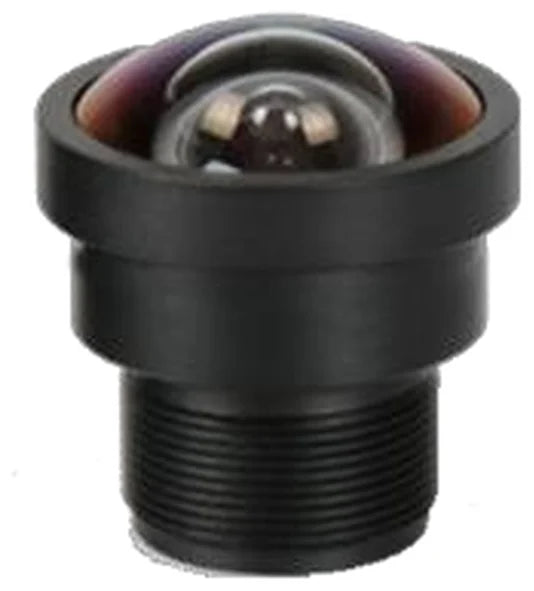

LS-MBL-01532.2 mm, 1/2.7", 8 MP, M12-mount Low-Distortion M12 lens 2.2 mmM121/2.7"F2.2 Fixed iris8.0 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-01727.8 mm, 1/1.8", 8 MP, M12-mount Low-Distortion M12 lens 7.8 mmM121/1.8"F2.0 Fixed iris8.0 Megapixel-$129.00 Ships in 2-3 weeks
LS-MBL-01695.4 mm, 1/2.3", 10 MP, M12-mount Low-Distortion M12 lens 5.4 mmM121/2.3"F2.5 fixed iris10 MP-$109.00 Ships in 2-3 weeks
LS-MBL-01653.6 mm, 1/2.7", 12 MP, M12-mount Low-Distortion M12 lens 3.6 mmM121/2.7"F2.0 Fixed iris12 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-01643.2 mm, 1/2.5", 16 MP, M12-mount Low-Distortion M12 lens 3.2 mmM121/2.5"F2.4 Fixed iris16 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-01622.7 mm, 1/3", 8 MP, M12-mount Low-Distortion M12 lens 2.7 mmM121/3"F2.8 Fixed iris8.0 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-01543 mm, 1/1.7", 10 MP, M12-mount Low-Distortion M12 lens 3 mmM121/1.7"F2.0 Fixed iris10 Megapixel122 x 113 x 75 mm$129.00 Ships in 2-3 weeks
LS-MBL-01521.8 mm, 1/2.7", 8 MP, M12-mount Low-Distortion M12 lens 1.8 mmM121/2.7"F2.8 Fixed iris8.0 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-01512.7 mm, 1/2.3", 12 MP, M12-mount Low-Distortion M12 lens 2.7 mmM121/2.3"F2.8 Fixed iris12 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-01502.8 mm, 1/2.5", 12 MP, M12-mount Low-Distortion M12 lens 2.8 mmM121/2.5"F2.4 Fixed iris12 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-01492.8 mm, 1/2.5", 8 MP, M12-mount Low-Distortion M12 lens 2.8 mmM121/2.5"F2.5 Fixed iris8 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-014825 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 lens 25 mmM121/1.7"F5.6 Fixed iris12 Megapixel-$139.00 Ships in 2-3 weeks
LS-MBL-014622 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 lens, 9.2 mm image circle 22 mmM121/1.7"F2.8 Fixed iris12 Megapixel-$139.00 Ships in 2-3 weeks

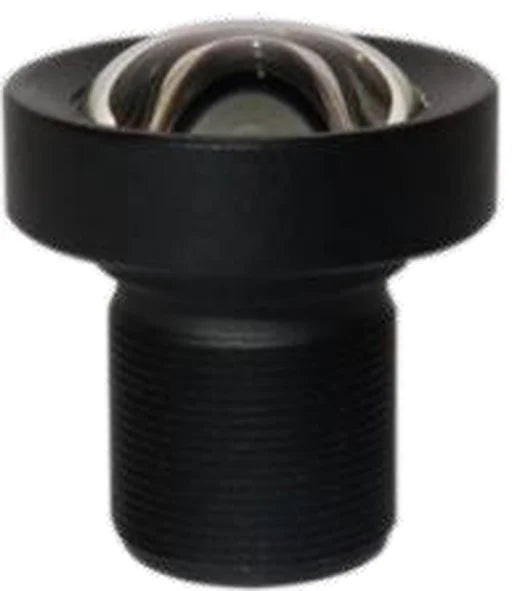

LS-MBL-01731.9 mm, 1/2.8", 8 MP, M12-mount Low-Distortion M12 lens 1.9 mmM121/2.8"F2.4 Fixed iris8.0 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-014516 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 lens 16 mmM121/1.7"F5.6 Fixed iris12 Megapixel-$129.00 Ships in 2-3 weeks
LS-MBL-014314 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 lens, dia. 14 x 14.86 mm 14 mmM121/1.7"F2.8 Fixed iris12 Megapixel-$129.00 Ships in 2-3 weeks
LS-MBL-01424.2 mm, 1/2.3", 14 MP, M12-mount Low-Distortion M12 lens 4.2 mmM121/2.3"F3.0 Fixed iris14 Megapixel-$109.00 Ships in 2-3 weeks
LS-MBL-014112 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 lens 12 mmM121/1.7"F5.6 Fixed iris12 Megapixel-$129.00 Ships in 2-3 weeks
LS-MBL-01388 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 lens 8 mmM121/1.7"F5.6 Fixed iris12 Megapixel / Pixel size 1.85μm-$129.00 Ships in 2-3 weeks
LS-MBL-013122 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 lens 22 mmM121/1.7"F2.8 Fixed iris12 Megapixel-$139.00 Ships in 2-3 weeks
LS-MBL-013021 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 lens 21 mmM121/1.7"F2.8 Fixed Iris12 Megapixel-$139.00 Ships in 2-3 weeks
LS-MBL-012914 mm, 1/1.7", 12 MP, M12-mount Low-Distortion M12 lens, dia. 14 x 14.86 14 mmM121/1.7"F2.8 Fixed iris12 Megapixel-$129.00 Ships in 2-3 weeks
LS-MBL-01705.5 mm, 1/1.8", 3 MP, M12-mount Low-Distortion M12 lens 5.5 mmM121/1.8"F1.8 fixed iris3.0 MP-$109.00 Ships in 2-3 weeks

Check distortion at the intended field

M12 lenses are commonly described as S-mount lenses. For a compact board camera, mechanical clearance and focus adjustment matter alongside optical coverage. This selection requires the actual M12 mount facet as well as the low-distortion classification, rather than assuming every board lens uses the same interface.

  • Confirm the lens thread, camera lens holder, rear clearance and focus adjustment range from the drawings. The M12 name alone does not establish every mechanical detail.
  • Compare the published distortion definition and field of view at your working distance. A low-distortion classification does not mean zero distortion in every imaging condition.
  • Check the sensor format, resolution and aperture for the camera, and determine whether calibration is needed for the measurement or mapping task.
