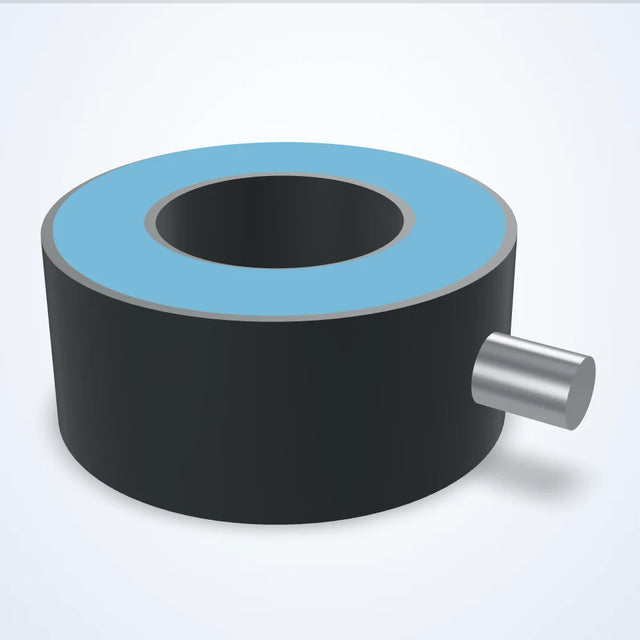

Diffused machine vision ring lights

Compare diffusion with direct ring lighting

Browse ring lights classified as diffused illumination. Compare ring size, opening, colour and installation distance when a direct ring produces unwanted reflections or uneven highlights.

All Ring lights

258 models Configure a systemAll lights
Diffused machine vision ring lights

1-24 of 258 models

Products

Compare
LS-RNG-0045Ring light, 80 mm, IP50, Diffused lens White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$529.00Quote Built to order: ships in about 1-2 weeks
LS-RNG-0044Ring light, 151.2 mm, max overcurrent strobe current 460 mA, Diffused lens White, Red, Green, Infrared, Blue24 VDCDiffusedDiffused--$729.00Quote Built to order: ships in about 1-2 weeks
LS-RNG-0549Ring light, 196 mm dia., White White---Φ180 mmΦ196 mm × 25.5 mm$489.00 Ships in 2-3 weeks
LS-RNG-0547Ring light, 116 mm dia., Red Red---Φ100 mmΦ116 × 25.5 mm$309.00 Ships in 2-3 weeks
LS-RNG-0546Ring light, 116 mm dia., Blue Blue---Φ100 mmΦ116 × 25.5 mm$309.00 Ships in 2-3 weeks
LS-RNG-0548Ring light, 116 mm dia., White White---Φ100 mmΦ116 mm × 25.5 mm$309.00 Ships in 2-3 weeks
LS-RNG-0544Ring light, 80 mm dia., Red Red---Φ71 mmΦ80 × 24 mm$239.00 Ships in 2-3 weeks

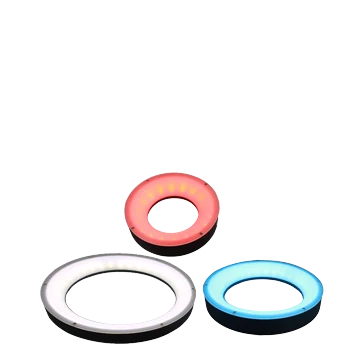

LS-RNG-0545Ring light, 80 mm dia., White, cable length 500 mm White---Φ71 mmΦ80 mm × 24 mm$239.00 Ships in 2-3 weeks
LS-RNG-0537Ring light, 120 mm dia., White, cable length 500 mm White--Diffused-Φ120 × 23 mm$319.00 Ships in 2-3 weeks
LS-RNG-0536Ring light, 90 mm dia., White White--Diffused-Φ90 × 21 mm$309.00 Ships in 2-3 weeks
LS-RNG-0535Ring light, 74 mm dia., IR 940 nm Infrared-30°Diffused-Φ74 × 20 mm$239.00 Ships in 2-3 weeks
LS-RNG-0534Ring light, 213 mm dia., 0°, White White--Diffused-Φ213 × 11 mm$689.00 Ships in 2-3 weeks
LS-RNG-0533Ring light, 200 mm dia., 90°, White, cable length 500 mm White--Diffused-Φ200 × 16 mm$579.00 Ships in 2-3 weeks
LS-RNG-0532Ring light, 180 mm dia., 60°, White, cable length 500 mm White--Diffused-Φ180 × 21 mm$539.00 Ships in 2-3 weeks
LS-RNG-0531Ring light, 180 mm dia., 30°, White White--Diffused-Φ180 × 27 mm$539.00 Ships in 2-3 weeks
LS-RNG-0529Ring light, 172 mm dia., 0°, White White--Diffused-Φ172 × 11 mm$519.00 Ships in 2-3 weeks
LS-RNG-0528Ring light, 170 mm dia., 20°, White White--Diffused-Φ170 × 22 mm$509.00 Ships in 2-3 weeks
LS-RNG-0527Ring light, 150 mm dia., 60°, White White--Diffused-Ø150 × 24 mm$469.00 Ships in 2-3 weeks
LS-RNG-0526Ring light, 146 mm dia., 0°, White White--Diffused-Φ146 × 11 mm$459.00 Ships in 2-3 weeks
LS-RNG-0525Ring light, 140 mm dia., 45°, White, cable length 500 mm White--Diffused-Φ140 × 24 mm$439.00 Ships in 2-3 weeks
LS-RNG-0524Ring light, 132 mm dia., 20°, White White--Diffused-Φ132 × 22 mm$419.00 Ships in 2-3 weeks
LS-RNG-0517Ring light, 120 mm dia., 0° --Low angle (0-15°)Diffused-Ø120 × 9 mm$319.00 Ships in 2-3 weeks
LS-RNG-0521Ring light, 120 mm dia., 60°, White, cable length 500 mm White--Diffused-Ø120 × 27 mm$389.00 Ships in 2-3 weeks
LS-RNG-0522Ring light, 120 mm dia., 70°, White White--Diffused-Φ120 × 22 mm$389.00 Ships in 2-3 weeks

Compare diffusion with direct ring lighting

A diffuser changes the illumination distribution, but the visible result still depends on the part shape, surface and setup. This range groups the catalog diffused ring class. Inspect the individual light geometry and output, and try the chosen size at the intended camera and part position.

  • Match the clear opening and body outline to the lens view and available machine space; the outer diameter is not the lens clearance dimension.
  • Check the illumination colour, supply and control arrangement and compare exposure at the actual installation distance, including any additional optical filter.
  • Evaluate highlights, shadows and feature contrast across the complete part. Diffusion is a selection variable, not a model-independent guarantee of uniform illumination.
