Ring Light, 132 mm dia., 20°, White (LS-RNG-0524)
  • Ring Light, 132 mm dia., 20°, White (LS-RNG-0524)

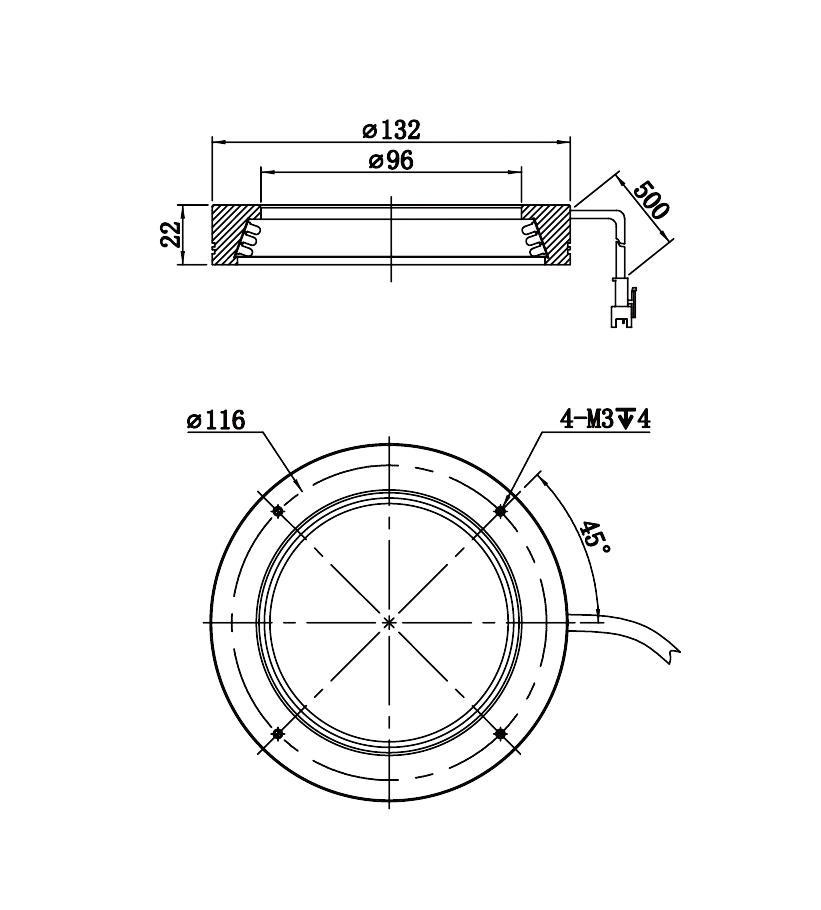

  • LS-RNG-0524 dimensions (mm)

Ring lights

Ring Light, 132 mm dia., 20°, White (LS-RNG-0524)

Model LS-RNG-0524

  • ColourWhite
  • SizeΦ132 × 22 mm
  • Power16 W
  • TypeDiffused
$349.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 132 mm dia., 20°, White (LS-RNG-0524)LS-RNG-0524

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 132 mm dia., 20°, White. Simple, compact structure, easy to install Multiple angles and flexible sizes

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0524
Irradiation angle20°

Interfaces and I/O

Cable length500 mm
Connector typeSMR-03V-B

Light

ColorWhite
Color temperature6000~7000K
LED rows3
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power16 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Bore dimensionΦ96 mm
DimensionΦ132 × 22 mm
Outer dimensionΦ132 mm
Shipping weight (estimated)0.66 kg
