Ring lights
Ring Light, 120 mm dia., 30°, Blue, wavelength 465 nm (LS-RNG-0518)
Model LS-RNG-0518
- ColourBlue
- SizeΦ120 × 23 mm
- Power14 W
- Wavelength465 nm
$319.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring Light, 120 mm dia., 30°, Blue. Simple, compact structure, easy to install Multiple angles and flexible sizes
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0518 |
|---|---|
| Irradiation angle | 30° |
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | Blue |
|---|---|
| Wavelength | 465 nm |
| LED rows | 3 |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 14 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |

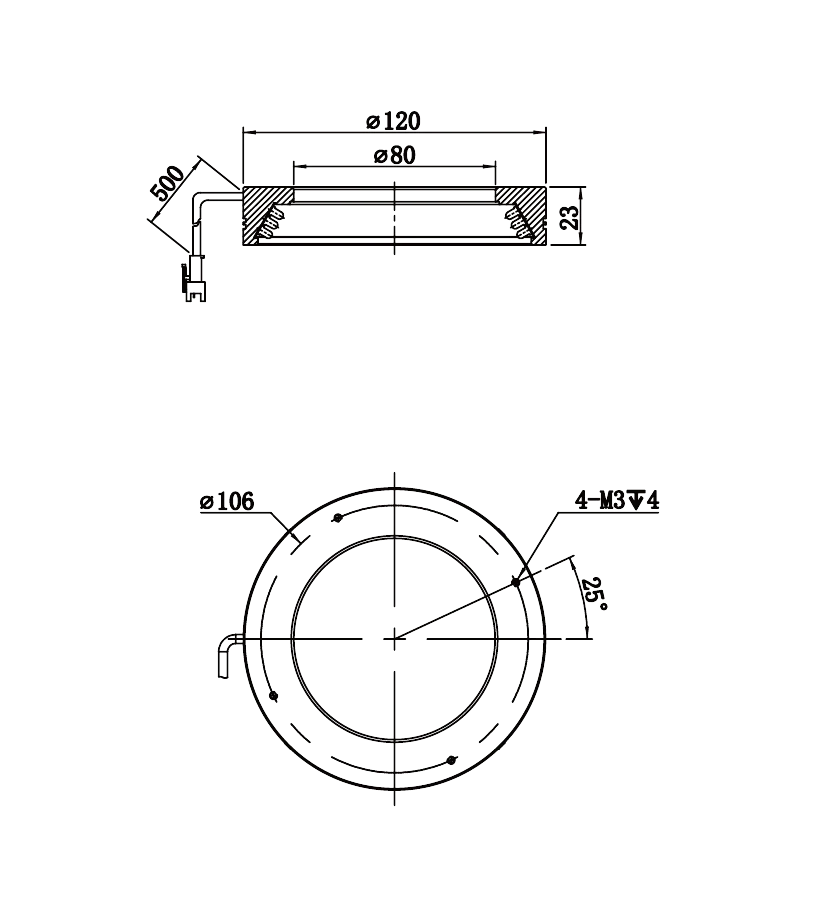

Mechanical
| Dimension | Φ120 × 23 mm |
|---|---|
| Outer dimension | Φ120 mm |
| Bore dimension | Φ80 mm |
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic angled ring lights (LS-RNG-S60) series
See all 41 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNG-0501 | 60 mm dia., 30°, Blue | $259.00 | Ships in 2-3 weeks | View |
| LS-RNG-0500 | 60 mm dia., 0°, Red | $259.00 | Ships in 2-3 weeks | View |
| LS-RNG-0514 | 96 mm dia., 0°, White | $259.00 | Ships in 2-3 weeks | View |
| LS-RNG-0515 | 100 mm dia., 90°, Red | $269.00 | Ships in 2-3 weeks | View |
| LS-RNG-0516 | 100 mm dia., 90°, White | $269.00 | Ships in 2-3 weeks | View |
| LS-RNG-0511 | 90 mm dia., 70°, Red | $309.00 | Ships in 2-3 weeks | View |
| LS-RNG-0509 | 90 mm dia., 30°, IR 940 nm | $309.00 Quote | Ships in 2-3 weeks | View |
| LS-RNG-0512 | 90 mm dia., 70°, White | $309.00 | Ships in 2-3 weeks | View |
| LS-RNG-0510 | 90 mm dia., 30°, White | $309.00 | Ships in 2-3 weeks | View |
| LS-RNG-0520 | 120 mm dia., 45°, White | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0519 | 120 mm dia., 30°, White | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0523 | 120 mm dia., 90°, White | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0522 | 120 mm dia., 70°, White | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0521 | 120 mm dia., 60°, White | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0517 | 120 mm dia., 0° | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0524 | 132 mm dia., 20°, White | $349.00 | Ships in 2-3 weeks | View |
| LS-RNG-0525 | 140 mm dia., 45°, White | $359.00 | Ships in 2-3 weeks | View |
| LS-RNG-0526 | 146 mm dia., 0°, White | $379.00 | Ships in 2-3 weeks | View |
| LS-RNG-0527 | 150 mm dia., 60°, White | $389.00 | Ships in 2-3 weeks | View |
| LS-RNG-0528 | 170 mm dia., 20°, White | $429.00 | Ships in 2-3 weeks | View |
| LS-RNG-0529 | 172 mm dia., 0°, White | $439.00 | Ships in 2-3 weeks | View |
| LS-RNG-0531 | 180 mm dia., 30°, White | $459.00 | Ships in 2-3 weeks | View |
| LS-RNG-0532 | 180 mm dia., 60°, White | $459.00 | Ships in 2-3 weeks | View |
| LS-RNG-0530 | 180 mm dia., 15°, White | $459.00 | Ships in 2-3 weeks | View |
