Ring Light, 120 mm dia., 0° (LS-RNG-0517)
Model LS-RNG-0517
- SizeØ120 × 9 mm
- Power4.3 W
- TypeDiffused
- AngleLow angle (0-15°)
$319.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring Light, 120 mm dia., 0°. Simple, compact structure, easy to install Multiple angles and flexible sizes
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0517 |
|---|---|
| Irradiation angle | 0° |
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | White |
|---|---|
| Color temperature | 6000~7000K |
| LED rows | 1 |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 4.3 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |

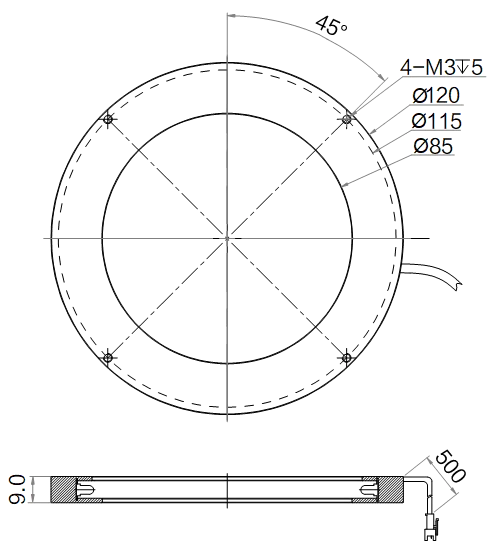

Mechanical
| Dimension | Ø120 × 9 mm |
|---|---|
| Outer dimension | Φ120 mm |
| Bore dimension | Ø85 mm |
| Shipping weight (estimated) | 0.66 kg |
