Ring Light, 90 mm dia., 30°, IR 940 nm (LS-RNG-0509)
  • Ring Light, 90 mm dia., 30°, IR 940 nm (LS-RNG-0509)

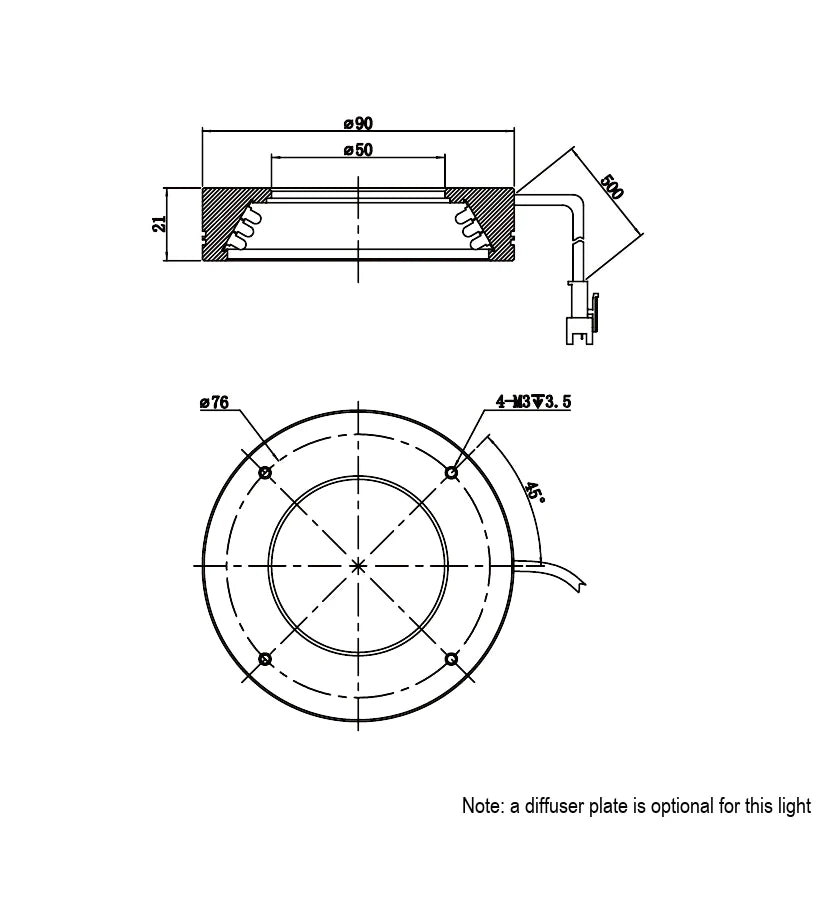

  • LS-RNG-0509 dimensions (mm)

Ring lights

Ring Light, 90 mm dia., 30°, IR 940 nm (LS-RNG-0509)

Model LS-RNG-0509

  • ColourInfrared
  • SizeΦ90 × 21 mm
  • Power7.8 W
  • Wavelength940 nm
$309.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Ring Light, 90 mm dia., 30°, IR 940 nm (LS-RNG-0509)LS-RNG-0509

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 90 mm dia., 30°, IR 940 nm. Simple, compact structure, easy to install Multiple angles and flexible sizes

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0509
Irradiation angle30°

Interfaces and I/O

Connector typeSMR-03V-B
Cable length500 mm

Light

ColorInfrared
Wavelength940 nm
LED rows3
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power7.8 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

DimensionΦ90 × 21 mm
Outer dimensionΦ90 mm
Bore dimensionΦ50 mm
Shipping weight (estimated)0.66 kg
