Ring lights
Ring Light, 60 mm dia., 30°, Blue (LS-RNG-0501)
Model LS-RNG-0501
- ColourBlue
- SizeΦ60 × 18 mm
- Power3.5 W
- Wavelength465 nm
$259.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Ring Light, 60 mm dia., 30°, Blue. Simple, compact structure, easy to install Multiple angles and flexible sizes
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-RNG-0501 |
|---|---|
| Irradiation angle | 30° |
Interfaces and I/O
| Connector type | SMR-03V-B |
|---|---|
| Cable length | 500 mm |
Light
| Color | Blue |
|---|---|
| Wavelength | 465 nm |
| LED rows | 2 |
| Diffuse plate included | Included |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% to 85% RH (non-condensing) |
Electrical
| Power | 3.5 W |
|---|---|
| Supply voltage (derived) | 24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V |

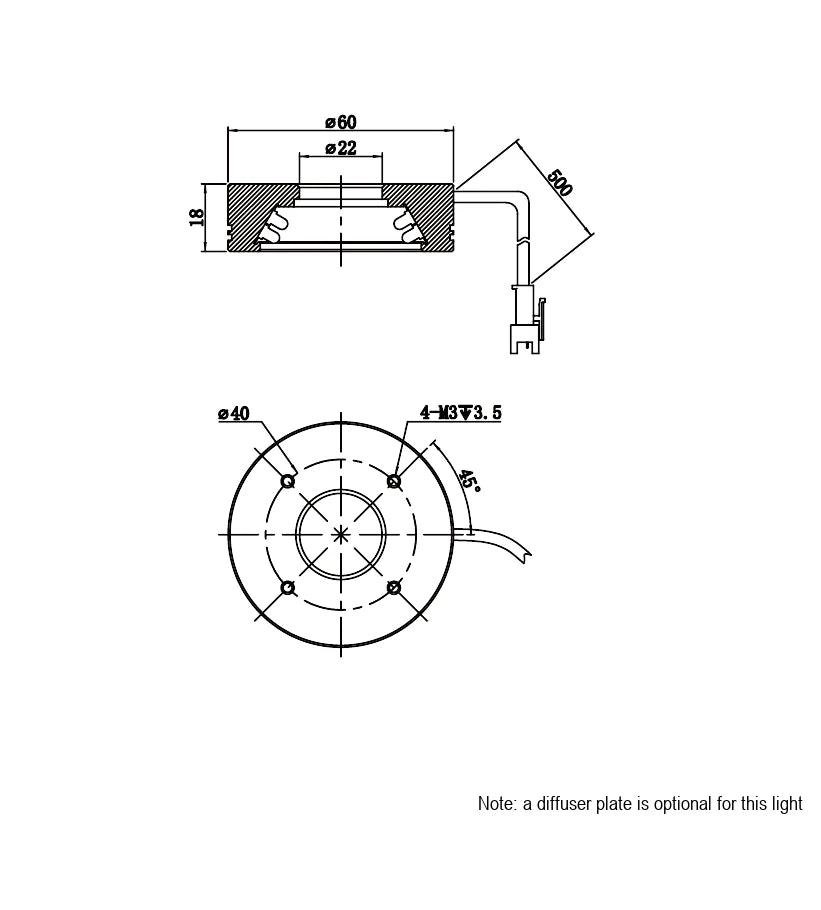

Mechanical
| Dimension | Φ60 × 18 mm |
|---|---|
| Outer dimension | Φ60 mm |
| Bore dimension | Φ22 mm |
| Shipping weight (estimated) | 0.66 kg |
Other models in the Classic angled ring lights (LS-RNG-S60) series
See all 41 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-RNG-0496 | 42 mm dia., 65°, White | $139.00 | Ships in 2-3 weeks | View |
| LS-RNG-0497 | 52 mm dia., 60°, IR 940 nm | $169.00 | Ships in 2-3 weeks | View |
| LS-RNG-0498 | 52 mm dia., 60°, White | $169.00 | Ships in 2-3 weeks | View |
| LS-RNG-0499 | 53 mm dia., 90°, White | $169.00 | Ships in 2-3 weeks | View |
| LS-RNG-0504 | 73 mm dia., 90°, White | $239.00 | Ships in 2-3 weeks | View |
| LS-RNG-0507 | 74 mm dia., 60°, IR 940 nm | $239.00 | Ships in 2-3 weeks | View |
| LS-RNG-0506 | 74 mm dia., 30°, White | $239.00 | Ships in 2-3 weeks | View |
| LS-RNG-0505 | 74 mm dia., 30°, IR 940 nm | $239.00 | Ships in 2-3 weeks | View |
| LS-RNG-0508 | 74 mm dia., 60°, White | $239.00 | Ships in 2-3 weeks | View |
| LS-RNG-0503 | 73 mm dia., 90°, IR 940 nm | $239.00 | Ships in 2-3 weeks | View |
| LS-RNG-0513 | 96 mm dia., 0°, Red | $259.00 | Ships in 2-3 weeks | View |
| LS-RNG-0502 | 60 mm dia., 30°, White | $259.00 | Ships in 2-3 weeks | View |
| LS-RNG-0500 | 60 mm dia., 0°, Red | $259.00 | Ships in 2-3 weeks | View |
| LS-RNG-0514 | 96 mm dia., 0°, White | $259.00 | Ships in 2-3 weeks | View |
| LS-RNG-0515 | 100 mm dia., 90°, Red | $269.00 | Ships in 2-3 weeks | View |
| LS-RNG-0516 | 100 mm dia., 90°, White | $269.00 | Ships in 2-3 weeks | View |
| LS-RNG-0511 | 90 mm dia., 70°, Red | $309.00 | Ships in 2-3 weeks | View |
| LS-RNG-0509 | 90 mm dia., 30°, IR 940 nm | $309.00 Quote | Ships in 2-3 weeks | View |
| LS-RNG-0512 | 90 mm dia., 70°, White | $309.00 | Ships in 2-3 weeks | View |
| LS-RNG-0510 | 90 mm dia., 30°, White | $309.00 | Ships in 2-3 weeks | View |
| LS-RNG-0520 | 120 mm dia., 45°, White | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0519 | 120 mm dia., 30°, White | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0523 | 120 mm dia., 90°, White | $319.00 | Ships in 2-3 weeks | View |
| LS-RNG-0518 | 120 mm dia., 30°, Blue | $319.00 | Ships in 2-3 weeks | View |
