Ring Light, 140 mm dia., 45°, White, cable length 500 mm (LS-RNG-0525)
  • Ring Light, 140 mm dia., 45°, White, cable length 500 mm (LS-RNG-0525)

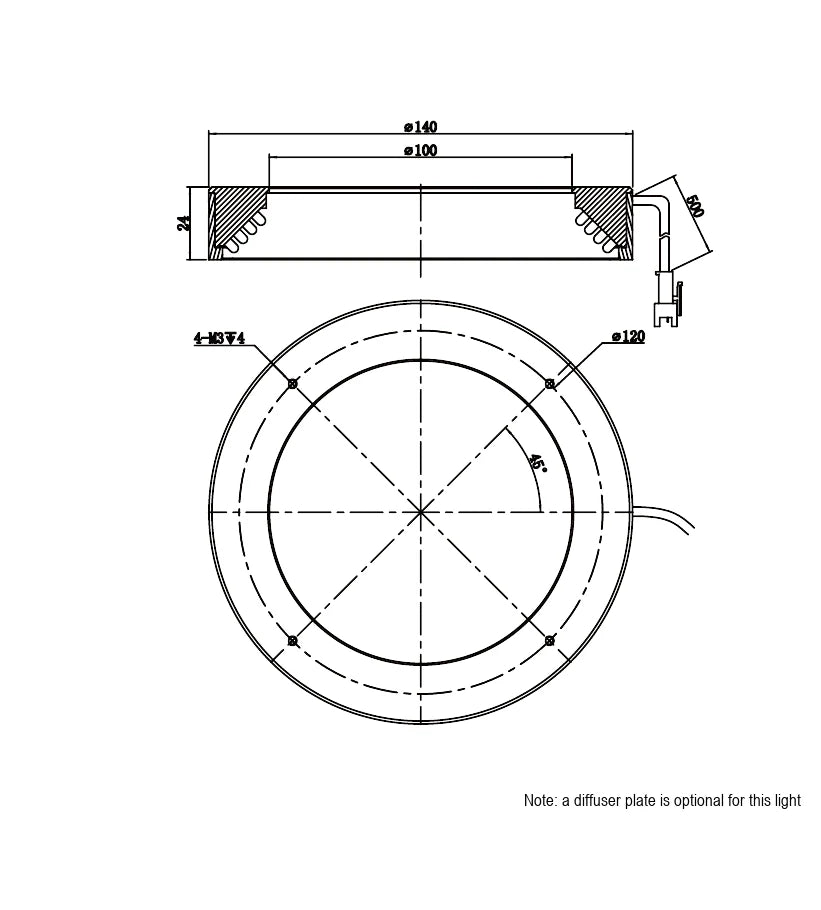

  • LS-RNG-0525 dimensions (mm)

Ring lights

Ring Light, 140 mm dia., 45°, White, cable length 500 mm (LS-RNG-0525)

Model LS-RNG-0525

  • ColourWhite
  • SizeΦ140 × 24 mm
  • Power13 W
  • TypeDiffused
$359.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ring Light, 140 mm dia., 45°, White, cable length 500 mm (LS-RNG-0525)LS-RNG-0525

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Ring Light, 140 mm dia., 45°, White. Simple, compact structure, easy to install Multiple angles and flexible sizes

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-RNG-0525
Irradiation angle45°

Interfaces and I/O

Cable length500 mm
Connector typeSMR-03V-B

Light

ColorWhite
Color temperature6000~7000K
LED rows4
Diffuse plate includedIncluded

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% to 85% RH (non-condensing)

Electrical

Power13 W
Supply voltage (derived)24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

Bore dimensionΦ100 mm
DimensionΦ140 × 24 mm
Outer dimensionΦ140 mm
Shipping weight (estimated)0.66 kg
