Ring lights

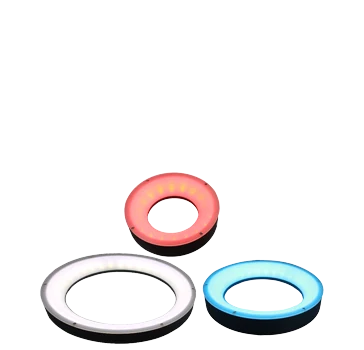

Ring Light, 80 mm dia., White, cable length 500 mm (LS-RNG-0545)

Model LS-RNG-0545

ColourWhite
Emitting areaΦ71 mm
SizeΦ80 mm × 24 mm
Power7.7 W

$239.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Ring Light, 80 mm dia., White. Wide-angle SMD LEDs for high uniformity Available in custom single-color and multi-color versions

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0545

Interfaces and I/O

Connector type	SMR-03V-B
Cable length	500 mm

Light

Color	White
Color temperature	6000 ~ 7000K
LED rows	1
Emitting area length	Φ71 mm
Diffuse plate included	Included

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% to 85% RH (non-condensing)

Electrical

Power	7.7 W
Supply voltage (derived)	24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

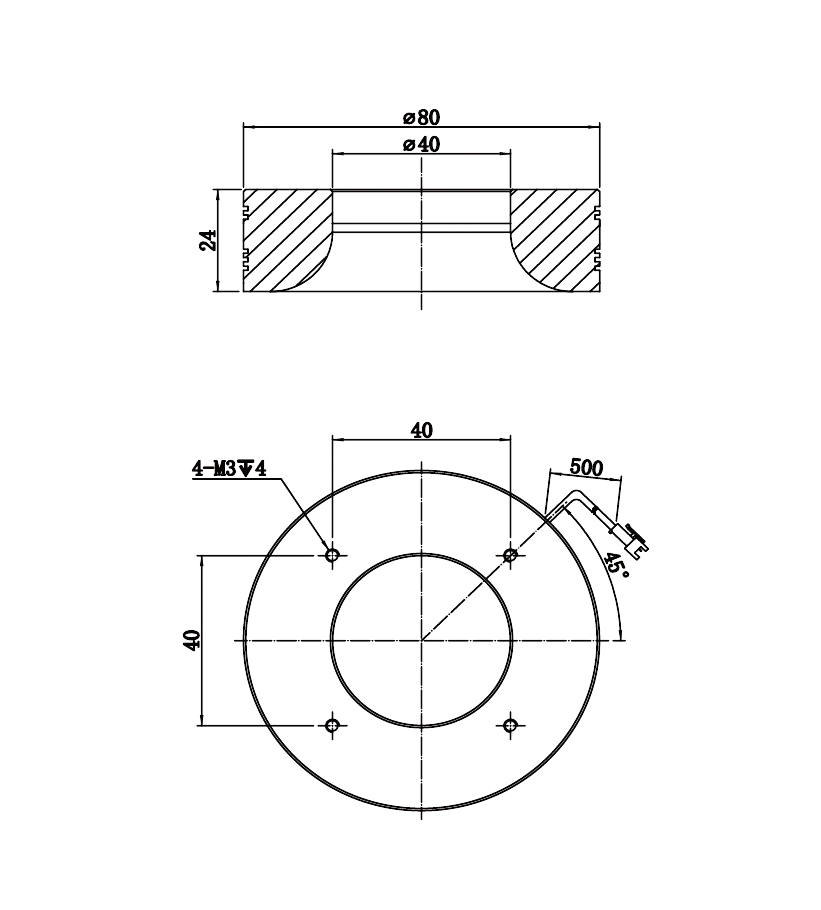

Dimension	Φ80 mm × 24 mm
Outer dimension	Φ80 mm
Bore dimension	Φ40 mm
Shipping weight (estimated)	0.66 kg
