Ring Light, 116 mm dia., Blue (LS-RNG-0546)

Model LS-RNG-0546

ColourBlue
Emitting areaΦ100 mm
SizeΦ116 × 25.5 mm
Power11.8 W
Wavelength425 nm

$309.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Ring Light, 116 mm dia., Blue. Wide-angle SMD LEDs for high uniformity Available in custom single-color and multi-color versions

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-RNG-0546

Interfaces and I/O

Connector type	SMR-03V-B
Cable length	500 mm

Light

Color	Blue
Wavelength	425 nm
LED rows	1
Emitting area length	Φ100 mm
Diffuse plate included	Included

Environment and compliance

Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	20% to 85% RH (non-condensing)

Electrical

Power	11.8 W
Supply voltage (derived)	24 V DC, derived: all 370 lights of this range with the same connector type that state a voltage are rated 24 V

Mechanical

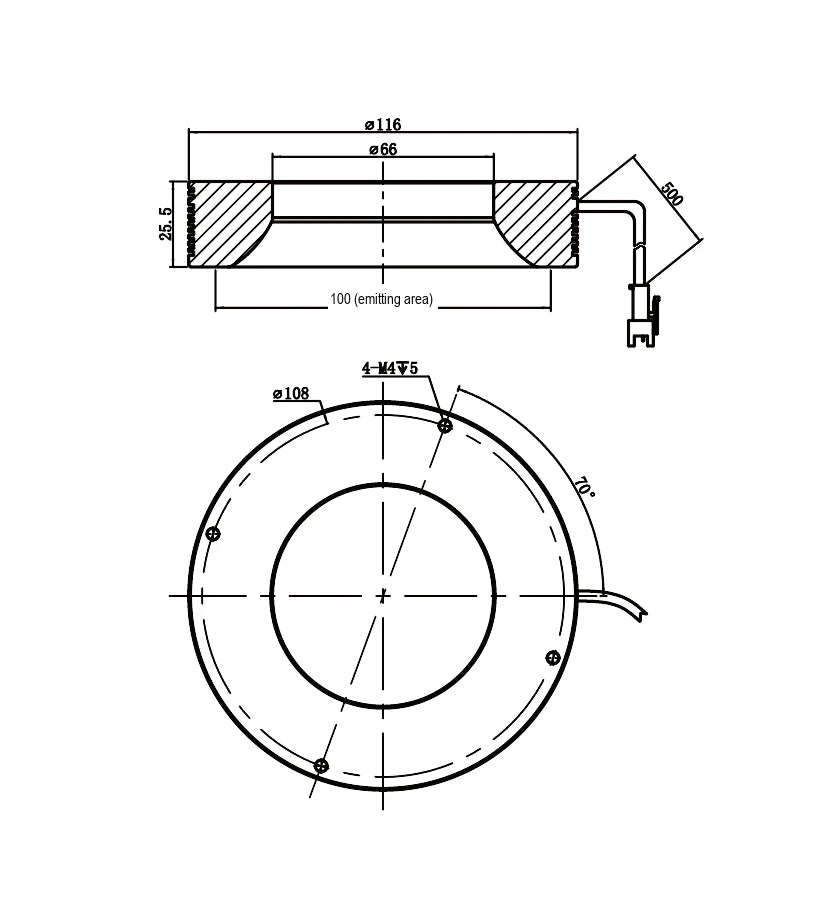

Dimension	Φ116 × 25.5 mm
Outer dimension	Φ116 mm
Bore dimension	Φ66 mm
Shipping weight (estimated)	0.66 kg

Other models in the Classic ring lights (LS-RNG-S63) series

See all 6 models

Model	Size / key data	Price	Availability	Link
LS-RNG-0545	80 mm dia., White	$239.00	Ships in 2-3 weeks	View
LS-RNG-0544	80 mm dia., Red	$239.00	Ships in 2-3 weeks	View
LS-RNG-0548	116 mm dia., White	$309.00	Ships in 2-3 weeks	View
LS-RNG-0547	116 mm dia., Red	$309.00	Ships in 2-3 weeks	View
LS-RNG-0549	196 mm dia., White	$489.00	Ships in 2-3 weeks	View
