Lights

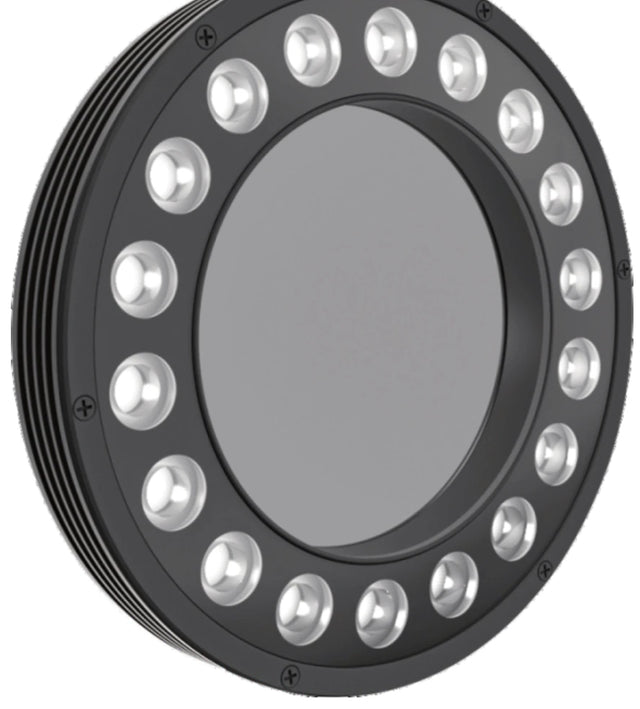

Polarized machine vision ring lights

Plan both sides of the polarization setup

Compare ring lights classified as polarized for reflective-part inspection. Check the supplied polarizing components and the camera-side filter arrangement before planning glare control.

All Ring lights

13 models Configure a systemAll lights
Polarized machine vision ring lights

1-13 of 13 models

Products

Compare
LS-RNG-0580315 x 32 mm Polarised light Blue, White25.2 WPolarizedExtension cable$739.00 Ships in 2-3 weeks
LS-RNG-0578135 x 32 mm Polarised light Blue, White10.8 WPolarizedExtension cable$379.00 Ships in 2-3 weeks
LS-RNG-0584100 x 100 mm Polarised light Blue, White11 WPolarizedExtension cable$349.00 Ships in 2-3 weeks
LS-RNG-0588115 mm Polarised light Red, Blue, White8.4/13 WPolarizedExtension cable$329.00 Ships in 2-3 weeks
LS-RNG-058190 x 22 mm Polarised light Red1.7 WPolarizedExtension cable$309.00 Ships in 2-3 weeks
LS-RNG-058790 mm Polarised light Blue, White8.4 WPolarizedExtension cable$309.00 Ships in 2-3 weeks
LS-RNG-058348 x 28 mm Polarised light Blue, White1.7 WPolarizedExtension cable$179.00 Ships in 2-3 weeks
LS-RNG-057745 x 32 mm Polarised light Blue, White3.6 WPolarizedExtension cable$179.00 Ships in 2-3 weeks
LS-RNG-0582175 x 33 mm Polarised light, white White17 WPolarizedExtension cable$499.00 Ships in 2-3 weeks
LS-RNG-0589140 mm Polarised light Blue, White13 WPolarizedExtension cable$389.00 Ships in 2-3 weeks
LS-RNG-0579175 x 33 mm Polarised light, 465 nm Blue, White17 WPolarizedExtension cable$569.00 Ships in 2-3 weeks
LS-RNG-058670 mm Polarised light Red, Blue, White8.4 WPolarizedExtension cable$229.00 Ships in 2-3 weeks
LS-RNG-058550 mm Polarised light Blue, White5 WPolarizedExtension cable$189.00 Ships in 2-3 weeks

Plan both sides of the polarization setup

Polarized lighting can be part of a glare-control arrangement, but the light is only one component. Check what is fitted to the selected model and whether a compatible analyzer is needed at the lens. Evaluate the result on the actual surface instead of assuming every reflection will disappear.

  • Verify the included polarizer, usable aperture and orientation or adjustment provisions in the model data; do not assume a lens-side filter is supplied with the light.
  • Compare the light colour and output with the camera, exposure and surface. Account for light loss through the optical filtering arrangement during the trial.
  • Check the ring opening, working distance, mounting and controller requirements, then test feature visibility as well as the reduction in unwanted glare.

Configure a system · Browse all Ring lights
