Diffused machine vision ring lights

Compare diffusion with direct ring lighting

Browse ring lights classified as diffused illumination. Compare ring size, opening, colour and installation distance when a direct ring produces unwanted reflections or uneven highlights.

All Ring lights

258 models Configure a systemAll lights
Diffused machine vision ring lights

49-72 of 258 models

Products

Compare
LS-RNG-0496Ring light, 42 mm dia., 65°, White WhiteΦ42 × 18 mm2.0 WDiffused--$139.00 Ships in 2-3 weeks
LS-RNG-0494Ring light, 34 mm dia., 75°, Blue BlueΦ34 ×19 mm1.9 W-465 nm-$129.00 Ships in 2-3 weeks
LS-RNG-0495Ring light, 34 mm dia., 75°, White WhiteΦ34 × 19 mm2.2 WDiffused--$129.00 Ships in 2-3 weeks
LS-RNG-0354Ring light, 120 mm dia., White, cable length 500 mm WhiteΦ120 × 23 mm11.4 WDiffused--$319.00 Ships in 2-3 weeks
LS-RNG-0887113.4 mm UV light --13 WDiffused-20°$349.00 Ships in 2-3 weeks
LS-RNG-0886109.8 mm UV light --15 WDiffused--$319.00 Ships in 2-3 weeks
LS-RNG-088582 mm UV light --11 WDiffused-70°$279.00 Ships in 2-3 weeks
LS-RNG-088462.4 mm UV light --4.1 WDiffused-30°$269.00 Ships in 2-3 weeks
LS-RNG-088344 mm UV light --3.1 WDiffused-60°$159.00 Ships in 2-3 weeks
LS-RNG-0787Shadowless ring light, inner diameter 100 mm Red, Blue, Green, White--Diffused--$269.00 Ships in 2-3 weeks
LS-RNG-0786Shadowless ring light, inner diameter 71 mm Red, Blue, Green, White--Diffused--$209.00 Ships in 2-3 weeks
LS-RNG-0784Shadowless ring light, inner diameter 36 mm Red, Blue, Green, White--Diffused--$129.00 Ships in 2-3 weeks
LS-RNG-0785Shadowless ring light, outer diameter 120 mm Red, Blue, Green, White--Diffused--$129.00 Ships in 2-3 weeks
LS-RNG-0772300 mm dia. ring light, 251 mm inner dia. Red, Green, Blue, White--Diffused--$699.00 Ships in 2-3 weeks
LS-RNG-0770250 mm dia. ring light, 181 mm inner dia. Red, Green, Blue, White--Diffused--$589.00 Ships in 2-3 weeks
LS-RNG-0769250 mm dia. ring light, 201 mm inner dia. Red, Green, Blue, White--Diffused--$589.00 Ships in 2-3 weeks
LS-RNG-0765210 mm dia. ring light, 162 mm inner dia. Red, Green, Blue, White--Diffused--$509.00 Ships in 2-3 weeks
LS-RNG-0763208 mm dia. ring light, 155 mm inner dia. Red, Green, Blue, White--Diffused--$509.00 Ships in 2-3 weeks
LS-RNG-0760200 mm dia. ring light, 155 mm inner dia. Red, Green, Blue, White--Diffused--$489.00 Ships in 2-3 weeks
LS-RNG-0757184 mm dia. ring light, 142 mm inner dia. Red, Green, Blue, White--Diffused--$469.00 Ships in 2-3 weeks
LS-RNG-0733120 mm dia. ring light, 86 mm inner dia., 15° Red, Green, Blue, WhiteOD 120, ID 86, height 28 mm6.5 W/8.7 W---$319.00 Ships in 2-3 weeks
LS-RNG-0740122 mm dia. ring light, 80 mm inner dia. Red, Green, Blue, White--Diffused--$319.00 Ships in 2-3 weeks

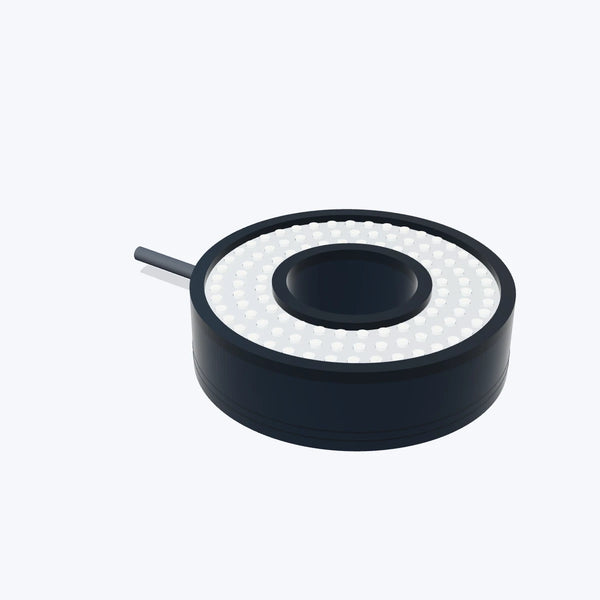

LS-RNG-071774 mm dia. ring light, 30 mm inner dia. Red, Green, Blue, WhiteOD 74, ID 30, height 18 mm3.3 W/4.4 W---$219.00 Ships in 2-3 weeks
LS-RNG-070050 mm dia. ring light, 25 mm inner dia., 90° Red, Green, Blue, White--Diffused--$169.00 Ships in 2-3 weeks

Compare diffusion with direct ring lighting

A diffuser changes the illumination distribution, but the visible result still depends on the part shape, surface and setup. This range groups the catalog diffused ring class. Inspect the individual light geometry and output, and try the chosen size at the intended camera and part position.

  • Match the clear opening and body outline to the lens view and available machine space; the outer diameter is not the lens clearance dimension.
  • Check the illumination colour, supply and control arrangement and compare exposure at the actual installation distance, including any additional optical filter.
  • Evaluate highlights, shadows and feature contrast across the complete part. Diffusion is a selection variable, not a model-independent guarantee of uniform illumination.
