Hikrobot MV-CT0MG0089/G/NN/NN 8.9MP Area Scan Camera, 3rd Gen., GigE, Mono, BASE
  • Hikrobot MV-CT0MG0089/G/NN/NN 8.9MP Area Scan Camera, 3rd Gen., GigE, Mono, BASE
  • MV-CT0MG0089/G/NN/NN dimensions (mm)

Area scan cameras

Hikrobot MV-CT0MG0089/G/NN/NN 8.9MP Area Scan Camera, 3rd Gen., GigE, Mono, BASE

Model MV-CT0MG0089/G/NN/NNHikrobot

  • Resolution4096 × 2160
  • SensorCMOS, global shutter
  • InterfaceRJ45 connector
  • Speed13.9 fps @ 4096 × 2160 Mono 8
  • Lens mountC-mount
  • Mono / colourMono
$1,079.00

Ships in 2-3 weeks

0.26 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

Ask an engineerBrowse Area scan cameras

MV-CT0MG0089/G/NN/NN: resolution 4096 x 2160; sensor type CMOS, global shutter; sensor size 1"; max. frame rate 13.9 fps @ 4096 x 2160 Mono 8.

Hikrobot MV-CT0MG0089/G/NN/NN 8.9MP Area Scan Camera, 3rd Gen., GigE, Mono, BASE. The devices with PRO version and MAX version support waterproof connector. The devices with PRO version and MAX version adopt precision temperature control design for fast heat balance.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT0MG0089/G/NN/NN
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1"
Resolution4096 × 2160
Max. frame rate13.9 fps @ 4096 × 2160 Mono 8
Dynamic range67.2 dB
SNR44.2 dB
Gain0 dB to 12 dB
Exposure timeUltraShort exposure mode: 10 μs to 19 μs; Standard exposure mode: 20 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface typeRJ45 connector
Control interfaceNot support
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.7 W @ 12 VDC

Mechanical

Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 116 g (0.3 lb.)
Shipping weight (estimated)0.26 kg

Engineering data

Field of view and resolution with the MV-CT0MG0089/G/NN/NN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area14.13 × 7.45 mm1" optical format
Lens image circle needed≥ Ø 16 mmC-mount
Pixel pitch3.45 µm4096 x 2160 px
Image data at max frame rate123 MB/sCalculated: 13.9 fps × 4096 × 2160 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm442 × 233 mm0.108 mm per pixel
Dynamic range67.2 dB
SNR44.2 dB
Power consumption1.7 Wtyp. at 12 V DC
ShutterGlobal
Exposure range20 µs to 10 sstandard mode
Weight116 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm530 × 279 mm0.129 mm per pixel883 × 466 mm0.216 mm per pixel1766 × 931 mm0.431 mm per pixel
12 mm353 × 186 mm0.086 mm per pixel589 × 310 mm0.144 mm per pixel1178 × 621 mm0.287 mm per pixel
16 mm265 × 140 mm0.065 mm per pixel442 × 233 mm0.108 mm per pixel883 × 466 mm0.216 mm per pixel
25 mm170 × 89.4 mm0.041 mm per pixel283 × 149 mm0.069 mm per pixel565 × 298 mm0.138 mm per pixel
35 mm121 × 63.9 mm0.03 mm per pixel202 × 106 mm0.049 mm per pixel404 × 213 mm0.099 mm per pixel
50 mm84.8 × 44.7 mm0.021 mm per pixel141 × 74.5 mm0.034 mm per pixel283 × 149 mm0.069 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

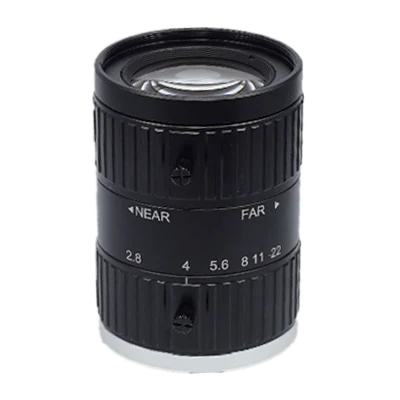

Lenses for this C-mount camera

Covers up to 16 mm diagonal; this camera's sensor is 16 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 16 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 16 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 16 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 16 mm

Covers up to 16 mm diagonal; this camera's sensor is 16 mm
