Hikrobot MV-CT060R-19GC01-MAX 6 MP GigE area scan camera, Gen 3, Color, MAX
  • Hikrobot MV-CT060R-19GC01-MAX 6 MP GigE area scan camera, Gen 3, Color, MAX

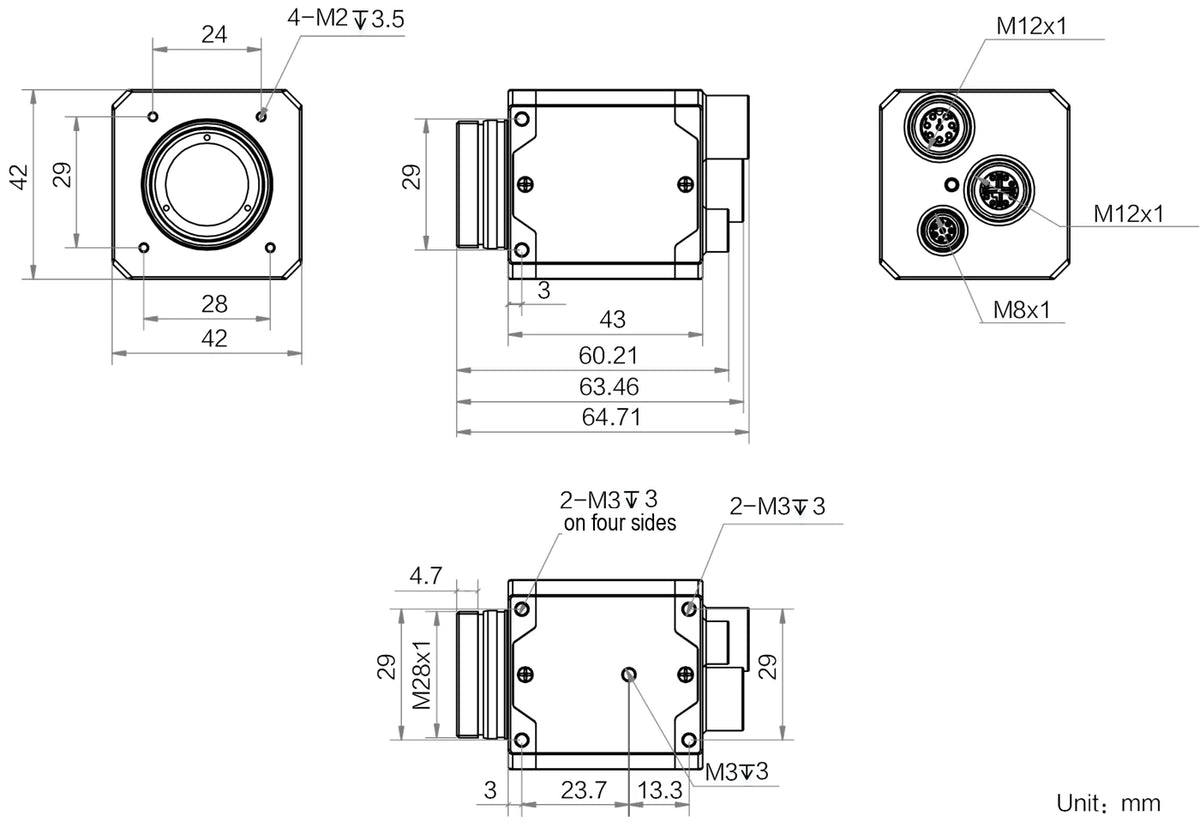

  • MV-CT060R-19GC01-MAX dimensions (mm)

Area scan cameras

Hikrobot MV-CT060R-19GC01-MAX 6 MP GigE area scan camera, Gen 3, Color, MAX

Model MV-CT060R-19GC01-MAXHikrobot

  • Resolution3072 × 2048
  • SensorCMOS, rolling shutter
  • Lens mountC-mount
  • Mono / colourColor
  • Pixel size2.4 μm × 2.4 μm
$909.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CT060R-19GC01-MAX: resolution 3072 x 2048; sensor type CMOS, rolling shutter; sensor size 1/1.8”; data interface type 8-pin M12 X-coded waterproof connector; mono/color Color.

Hikrobot MV-CT060R-19GC01-MAX 6 MP GigE area scan camera, Gen 3, Color, MAX. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT060R-19GC01-MAX
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony IMX178
Pixel size2.4 μm × 2.4 μm
Sensor size1/1.8”
Resolution3072 × 2048
Max. frame rate19.5 fps @ 3072 × 2048 Bayer RG 8; 40 fps @ 3072 × 2048 Bayer RG 8 (lossless compression on)
Dynamic range71.3 dB
SNR41.3 dB
Gain0 dB ~ 24 dB
Exposure time25 μs ~ 3.1 sec
Exposure modeOff/Once/Continuous exposure mode, and supports Rolling and Global Reset mode
Mono/colorColor
Pixel formatMono 8; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type8-pin M12 X-coded waterproof connector
Console interface8-pin M12 A-coded waterproof connector
Digital I/O8-pin M8 connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2)
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP67 (with lens, cover and cables properly installed)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating systemWindows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumption1.7 W @ 24 VDC (fast thermal balance off, external devices not controlled)

Mechanical

Lens mountC-Mount
Dimension42 mm × 42 mm × 43 mm
WeightApprox. 120 g (0.3 lb.)
Shipping weight (estimated)0.27 kg

Engineering data

Field of view and resolution with the MV-CT060R-19GC01-MAX

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area7.37 × 4.92 mm1/1.8" optical format
Lens image circle needed≥ Ø 8.9 mmC-mount
Pixel pitch2.4 µm3072 x 2048 px
Image data at max frame rate123 MB/sCalculated: 19.5 fps × 3072 × 2048 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm230 × 154 mm0.075 mm per pixel
Dynamic range71.3 dB
SNR41.3 dB
Power consumption1.7 Wat 24 V DC
ShutterRolling
Exposure range25 µs to 3.1 s
Weight120 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm276 × 184 mm0.09 mm per pixel461 × 308 mm0.15 mm per pixel921 × 615 mm0.3 mm per pixel
12 mm184 × 123 mm0.06 mm per pixel307 × 205 mm0.1 mm per pixel614 × 410 mm0.2 mm per pixel
16 mm138 × 92.2 mm0.045 mm per pixel230 × 154 mm0.075 mm per pixel461 × 308 mm0.15 mm per pixel
25 mm88.4 × 59 mm0.029 mm per pixel147 × 98.4 mm0.048 mm per pixel295 × 197 mm0.096 mm per pixel
35 mm63.2 × 42.2 mm0.021 mm per pixel105 × 70.3 mm0.034 mm per pixel211 × 141 mm0.069 mm per pixel
50 mm44.2 × 29.5 mm0.014 mm per pixel73.7 × 49.2 mm0.024 mm per pixel147 × 98.4 mm0.048 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 9.5 mm diagonal; this camera's sensor is 8.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 8.9 mm

Cables and frame grabbers
