Area scan cameras

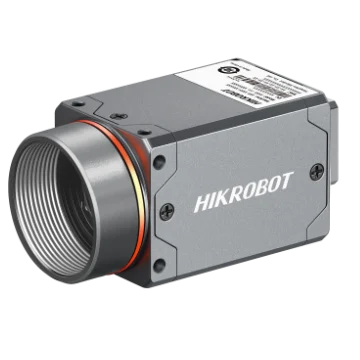

Hikrobot MV-CT089G-13GC01-BASE 8.9 MP GigE area scan camera, Gen 3, Color, BASE
Model MV-CT089G-13GC01-BASEHikrobot
- Resolution4096 × 2160
- SensorCMOS, global shutter
- InterfaceRJ45 port
- Speed13.9 fps @4096 × 2160 Bayer GB 8
- Lens mountC-mount
- Mono / colourColor
$1,079.00
Ships in 2-3 weeks
0.26 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CT089G-13GC01-BASE 8.9 MP GigE area scan camera, Gen 3, Color, BASE. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CT089G-13GC01-BASE |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1” |
| Resolution | 4096 × 2160 |
| Max. frame rate | 13.9 fps @4096 × 2160 Bayer GB 8 |
| Dynamic range | 67.2 dB |
| SNR | 44.2 dB |
| Gain | 0 dB ~ 12 dB |
| Exposure time | UltraShort exposure mode: 10 μs to 19 μs; Standard exposure mode: 20 μs to 10 sec |
| Exposure mode | Auto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported |
| Mono/color | Color |
| Pixel format | Mono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Data interface type | RJ45 port |
| Console interface | Not supported |
| Digital I/O | 8-pin M8 A-coded connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | 1.8 W@12 VDC |
Mechanical
| Lens mount | C-Mount |
|---|---|

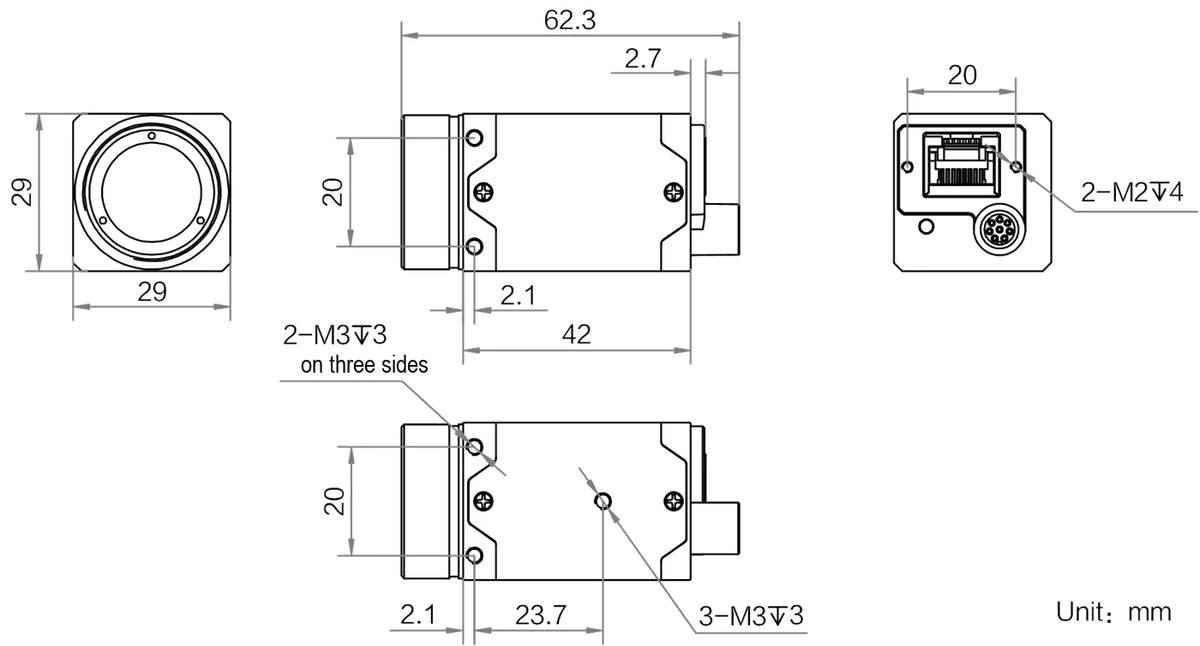

| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 116 g |
| Shipping weight (estimated) | 0.26 kg |
