Hikrobot MV-CT2CG0120/G/NN/NN 12MP Area Scan Camera, 3rd Gen., GigE, Color, MAX
  • Hikrobot MV-CT2CG0120/G/NN/NN 12MP Area Scan Camera, 3rd Gen., GigE, Color, MAX
  • MV-CT2CG0120/G/NN/NN dimensions (mm)

Area scan cameras

Hikrobot MV-CT2CG0120/G/NN/NN 12MP Area Scan Camera, 3rd Gen., GigE, Color, MAX

Model MV-CT2CG0120/G/NN/NNHikrobot

  • Resolution4096 × 3000
  • SensorCMOS, global shutter
  • Lens mountC-mount
  • Mono / colourColor
  • Pixel size3.45 μm × 3.45 μm
  • Integrated lensNone
$1,259.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

Ask an engineerBrowse Area scan cameras

lumaspecvision.com/products/lumaspec-mv-ct2cg0120-g-nn-nn

About 1.4 times the resolution of the 4096 x 2160 (8.8 MP) version, for finer detail over the same field: MV-CT2CG0120/G/NN/NN, the colour version, has a 4096 x 3000 (12 MP) sensor, in the upper half of the 10 resolutions in the series.

MV-CT2CG0120/G/NN/NN: resolution 4096 x 3000; sensor type CMOS, global shutter; sensor size 1.1"; data interface type 8-pin M12 X-Code waterproof aviation connector; mono/color Color.

Hikrobot MV-CT2CG0120/G/NN/NN 12MP Area Scan Camera, 3rd Gen., GigE, Color, MAX.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT2CG0120/G/NN/NN
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam
Integrated lensNone (C-mount, lens not included)

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor technologyStacked back-side illuminated (BSI)
Pixel size3.45 μm × 3.45 μm
Sensor size1.1"
Resolution4096 × 3000
Max. frame rate9.9 fps @ 4096 × 3000 Bayer GB 8; 23.9 fps @ 4096 × 3000 Bayer GB 8 (lossless compression mode enabled)
Dynamic range67.2 dB
SNR44.2 dB
Gain0 dB to 12 dB
Exposure timeUltraShort exposure mode: 10 μs to 19 μs; Standard exposure mode: 20 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Mono/colorColor
Pixel formatMono 8; Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type8-pin M12 X-Code waterproof aviation connector
Control interface8-pin M12 A-Code waterproof aviation connector
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP67 (under proper lens and lens cap installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.0 W @ 24 VDC(fast heat balance not enabled and external device not be controlled)

Mechanical

Lens mountC-mount
Dimension42 mm × 42 mm × 43 mm (1.7" × 1.7" × 1.7")
WeightApprox. 120 g (0.3 lb.)
Shipping weight (estimated)0.27 kg

Engineering data

Field of view and resolution with the MV-CT2CG0120/G/NN/NN

Sensor area14.13 × 10.35 mm1.1" optical format
Lens image circle needed≥ Ø 17.5 mmC-mount
Pixel pitch3.45 µm4096 x 3000 px
Image data at max frame rate122 MB/sCalculated: 9.9 fps × 4096 × 3000 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm442 × 323 mm0.108 mm per pixel
Dynamic range67.2 dB
SNR44.2 dB
Power consumption2.0 Wtyp. at 24 V DC
ShutterGlobal
Exposure range20 µs to 10 sstandard mode
Weight120 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm530 × 388 mm0.129 mm per pixel883 × 647 mm0.216 mm per pixel1766 × 1294 mm0.431 mm per pixel
12 mm353 × 259 mm0.086 mm per pixel589 × 431 mm0.144 mm per pixel1178 × 862 mm0.287 mm per pixel
16 mm265 × 194 mm0.065 mm per pixel442 × 323 mm0.108 mm per pixel883 × 647 mm0.216 mm per pixel
25 mm170 × 124 mm0.041 mm per pixel283 × 207 mm0.069 mm per pixel565 × 414 mm0.138 mm per pixel
35 mm121 × 88.7 mm0.03 mm per pixel202 × 148 mm0.049 mm per pixel404 × 296 mm0.099 mm per pixel
50 mm84.8 × 62.1 mm0.021 mm per pixel141 × 104 mm0.034 mm per pixel283 × 207 mm0.069 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $1,482.00

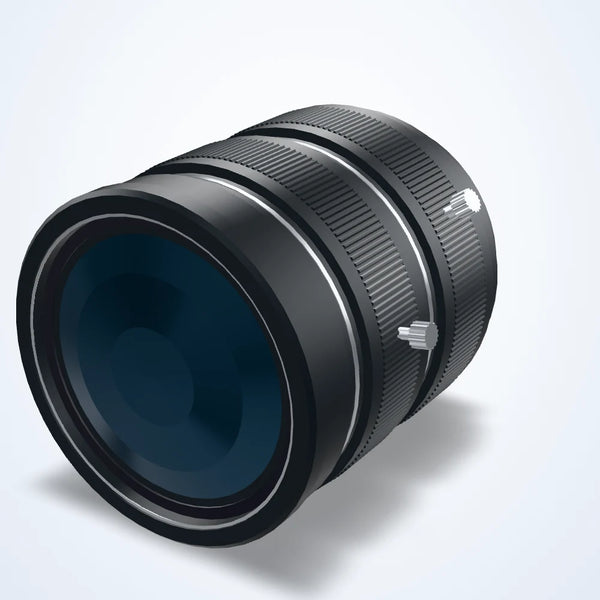

Lenses for this C-mount camera

This camera's 17.5 mm sensor diagonal uses 99 % of the lens's 17.6 mm image circle

This camera's 17.5 mm sensor diagonal uses 99 % of the lens's 17.6 mm image circle

This camera's 17.5 mm sensor diagonal uses 99 % of the lens's 17.6 mm image circle

This camera's 17.5 mm sensor diagonal uses 99 % of the lens's 17.6 mm image circle

This camera's 17.5 mm sensor diagonal uses 99 % of the lens's 17.6 mm image circle

This camera's 17.5 mm sensor diagonal uses 99 % of the lens's 17.6 mm image circle

Cables and frame grabbers

Before you buy

Questions about the MV-CT2CG0120/G/NN/NN

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CT2CG0120/G/NN/NN?

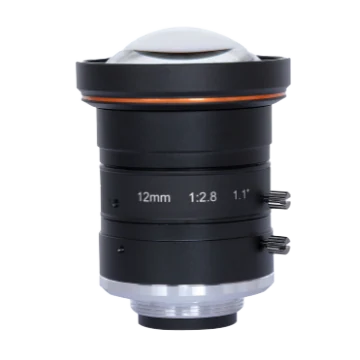

C-mount lenses whose image circle covers its sensor diagonal (about 17.5 mm): LS-FFL-1268 (16 mm), LS-FFL-0559 (50 mm), LS-FFL-1386 (12 mm) and LS-FFL-1275 (35 mm).

What data rate does the MV-CT2CG0120/G/NN/NN need over GigE?

About 122 MB/s at its printed 9.9 fps at 4096 x 3000 (8 bits per pixel, calculated), about 98 % of the nominal 125 MB/s GigE link.

Which cables does the MV-CT2CG0120/G/NN/NN take?

Fit-tested for its GigE interface and its 8-pin I/O: LS-CBL-0072 (1 m), LS-CBL-0309 (1 m), LS-CBL-0060 (1 m), LS-CBL-0297 (1 m) and LS-CBL-0321 (1 m).

How does the MV-CT2CG0120/G/NN/NN connect?

Printed: Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s); Data interface type: 8-pin M12 X-Code waterproof aviation connector.

What I/O does the MV-CT2CG0120/G/NN/NN have?

Printed: Digital I/O: 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

Other models in the CT Series GigE Area Scan Camera series

See all 138 models

How this model compares

  • Full-resolution 8-bit frames at 9.9 fps work out to about 122 MB/s, 97% of the 125 MB/s a 1 Gbit/s link carries.
  • Compared with MV-CT2MG0120/G/NN/NN: sensor Color here, Mono there.
ModelResolutionSensorMono / colourIntegrated lensPriceAvailabilityLink
MV-CT2MG0089/G/NN/NN4096 x 2160CMOS, global shutterMono$1,079.00 Ships in 2-3 weeks View
MV-CT2CG0089/G/NN/NN4096 x 2160CMOS, global shutterColor$1,079.00 Ships in 2-3 weeks View
MV-CT0CG0120/G/NN/NN$1,259.00 Ships in 2-3 weeks View
MV-CT1MG0120/G/NN/NN$1,259.00 Ships in 2-3 weeks View
MV-CT1CG0120/G/NN/NN4096 x 3000CMOS, global shutterColor$1,259.00 Ships in 2-3 weeks View
MV-CT2MG0120/G/NN/NN4096 x 3000CMOS, global shutterMonoNone$1,259.00 Ships in 2-3 weeks View
MV-CT2CG0120/G/NN/NNThis model4096 x 3000CMOS, global shutterColorNone$1,259.00 Ships in 2-3 weeks
MV-CT2MG0120/G/16LC/WN$1,259.00 Ships in 2-3 weeks View
MV-CT2CG0120/G/16LC/WN4096 x 3000CMOS, global shutterColor16 mm liquid lens$1,259.00 Ships in 2-3 weeks View
