Machine vision lenses

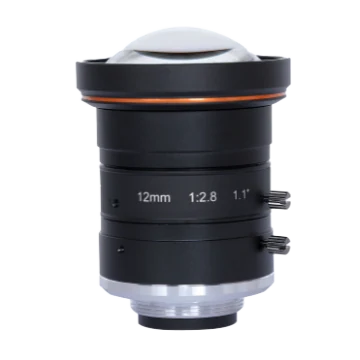

12mm, F2.8, 1.1", 12MP Lens, C-Mount, size Ø47 mm × 56.99 mm (LS-FFL-1386)

Model LS-FFL-1386

Focal length12 mm
MountC-mount
Sensor1.1"
ApertureF2.8 to F16

$209.00

Ships in 2-3 weeks

0.36 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

12mm, F2.8, 1.1", 12MP Lens, C-Mount. High resolution, high definition of the whole image Low distortion, high illumination relative

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1386
Minimum object distance	0.1 m
Close-up with extension tube	2 mm tube: WD 25 mm, magnification -0.256; 1 mm tube: WD 50 mm, magnification -0.169; 1 mm tube: WD 75 mm, magnification -0.126

Optics

Field of view	D (17.52mm): 70.5°; H (14.14mm): 59.8°; V (10.35mm): 46.2°
Focal length	12 mm
F-number	F2.8 to F16
Image size	Ø17.6 mm
Optical distortion	–1.79%
Iris control	Manual
Focus control	Manual
Magnification at working distance (mm)	100: -0.100; 150: -0.071; 200: -0.055; 250: -0.045; 300: -0.038; 350: -0.033; 400: -0.029; 450: -0.026; 500: -0.024; 550: -0.022; 600: -0.020; 650: -0.018; 700: -0.017; 750: -0.016; 800: -0.015; 850: -0.014; 900: -0.013; 1000: -0.012
Field of view H x V (mm) at working distance (mm), 1.1" sensor (14.14 x 10.35 mm)	100: 145.95 x 105.37; 150: 203.80 x 147.63; 200: 261.51 x 189.80; 250: 319.15 x 231.94; 300: 376.77 x 274.05; 350: 434.36 x 316.16; 400: 491.94 x 358.25; 450: 549.52 x 400.34; 500: 607.09 x 442.43; 550: 664.65 x 484.51; 600: 722.21 x 526.59; 650: 779.77 x 568.67; 700: 837.33 x 610.75; 750: 894.89 x 652.83; 800: 952.44 x 694.90; 850: 1010.00 x 736.98; 900: 1067.55 x 779.06; 1000: 1182.57 x 863.25
Field of view H x V (mm) at working distance (mm), 1" sensor (12.45 x 9.83 mm)	100: 127.71 x 99.90; 150: 178.63 x 140.01; 200: 229.44 x 180.04; 250: 280.20 x 220.04; 300: 330.93 x 260.01; 350: 381.64 x 299.98; 400: 432.34 x 339.94; 450: 483.04 x 379.89; 500: 533.74 x 419.84; 550: 584.43 x 459.79; 600: 635.11 x 499.74; 650: 685.80 x 539.68; 700: 736.48 x 579.63; 750: 787.16 x 619.57; 800: 837.84 x 659.51; 850: 888.52 x 699.45; 900: 939.20 x 739.39; 1000: 1040.56 x 819.32
Field of view H x V (mm) at working distance (mm), 2/3" sensor (8.45 x 7.07 mm)	100: 85.49 x 71.25; 150: 119.92 x 100.00; 200: 154.27 x 128.69; 250: 188.60 x 157.37; 300: 222.92 x 186.03; 350: 257.22 x 214.69; 400: 291.52 x 243.34; 450: 325.81 x 271.99; 500: 360.11 x 300.63; 550: 394.40 x 329.28; 600: 428.69 x 357.92; 650: 462.97 x 386.56; 700: 497.26 x 415.21; 750: 531.54 x 443.85; 800: 565.83 x 472.49; 850: 600.11 x 501.13; 900: 634.40 x 529.76; 1000: 703.02 x 587.09

Environment and compliance

Temperature	–10°C to 50°C (14°F to 122°F)
Certification	RoHS 2.0

Mechanical

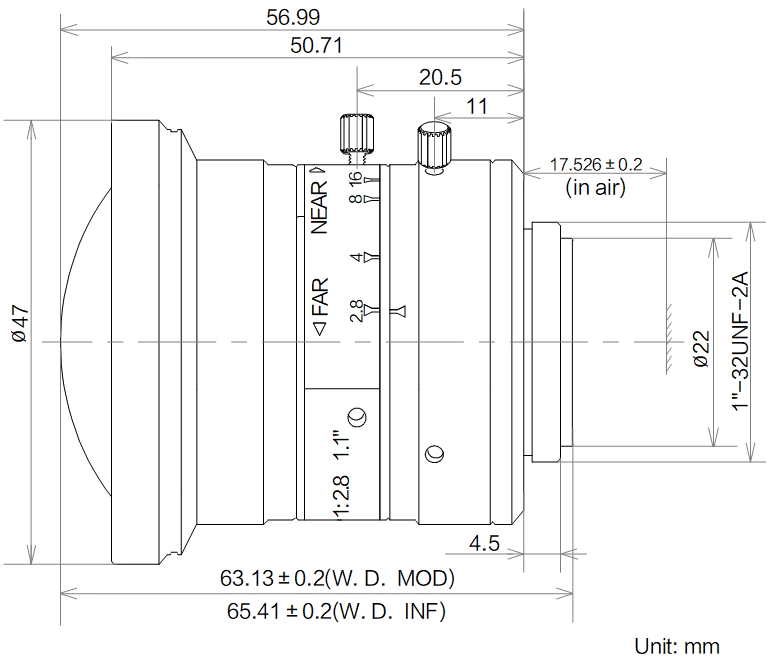

Dimension	Ø47 mm × 56.99 mm (Ø1.9" × 2.2")
Weight	186 g (0.4 lb.)
Mount	C-mount
Flange back length	17.526 mm
Shipping weight (estimated)	0.36 kg
