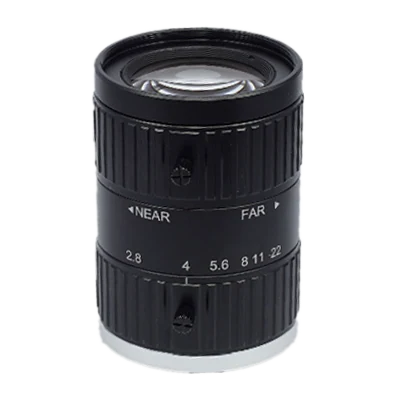

1'' 75 mm 12 MP FA lens (LS-FFL-1392)
  • 1'' 75 mm 12 MP FA lens (LS-FFL-1392)

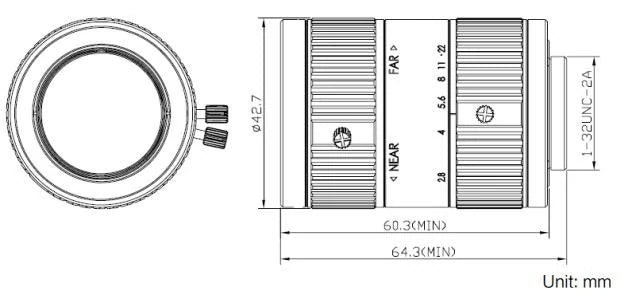

  • LS-FFL-1392 dimensions (mm)

Machine vision lenses

1'' 75 mm 12 MP FA lens (LS-FFL-1392)

Model LS-FFL-1392

  • Focal length75 mm
  • MountC-mount
  • Sensor1"
  • ApertureF2.8 ~ F22
$209.00

Ships in 2-3 weeks

0.36 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1'' 75 mm 12 MP FA lens (LS-FFL-1392)LS-FFL-1392

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1'' 75 mm 12 MP FA lens. High resolution with highly uniform sharpness across the image Low distortion, high relative illumination

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1392
Minimum object distance0.5 m

Optics

Focal length75 mm
F-numberF2.8 ~ F22
Image sizeΦ16 mm(1'')
Optical distortion0.75%
Field of viewD (15.86 mm): 12.2°; H (12.45 mm): 9.8°; V (9.83 mm): 7.3°
Iris controlManual
Focus controlManual
Filter threadM39 × 0.5

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10 ~ 50°C
CertificationRoHS2.0

Mechanical

Flange back length17.526 mm
DimensionΦ42 × 60.3 mm
Weight187 g
Shipping weight (estimated)0.36 kg
