Area scan cameras

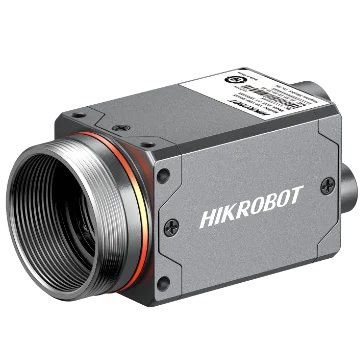

Hikrobot MV-CT089G-13GC01-PRO 8.9 MP GigE area scan camera, Gen 3, Color, PRO
Model MV-CT089G-13GC01-PROHikrobot
- Resolution4096 × 2160
- SensorCMOS, global shutter
- Interface8-pin M12 X-coded waterproof connector
- Lens mountC-mount
- Mono / colourColor
- Pixel size3.45 μm × 3.45 μm
$1,079.00
Ships in 2-3 weeks
0.27 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CT089G-13GC01-PRO 8.9 MP GigE area scan camera, Gen 3, Color, PRO. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CT089G-13GC01-PRO |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Stacked BSI |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1” |
| Resolution | 4096 × 2160 |
| Max. frame rate | 13.9 fps @4096 × 2160 Bayer GB 8; 32.5 fps @ 4096 × 2160 Bayer GB 8 (lossless compression on) |
| Dynamic range | 67.2 dB |
| SNR | 44.2 dB |
| Gain | 0 dB ~ 12 dB |
| Exposure time | UltraShort exposure mode: 10 μs to 19 μs; Standard exposure mode: 20 μs to 10 sec |
| Exposure mode | Auto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported |
| Mono/color | Color |
| Pixel format | Mono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Data interface type | 8-pin M12 X-coded waterproof connector |
| Console interface | Not supported |
| Digital I/O | 8-pin M8 A-coded connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2) |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP67 (with lens, cover and cables properly installed) |
|---|---|
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, supports PoE |
|---|---|
| Power consumption | 1.9 W @ 12 VDC (fast thermal balance off) |

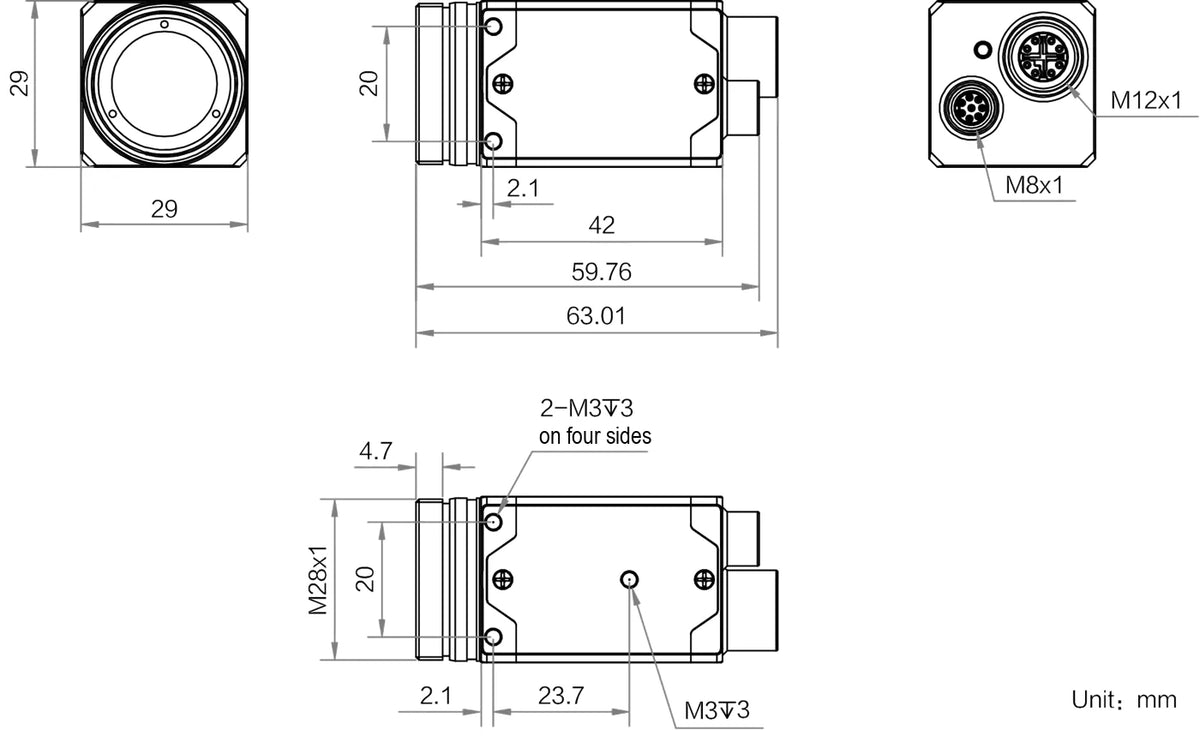

Mechanical
| Lens mount | C-Mount |
|---|---|
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 124 g |
| Shipping weight (estimated) | 0.27 kg |
