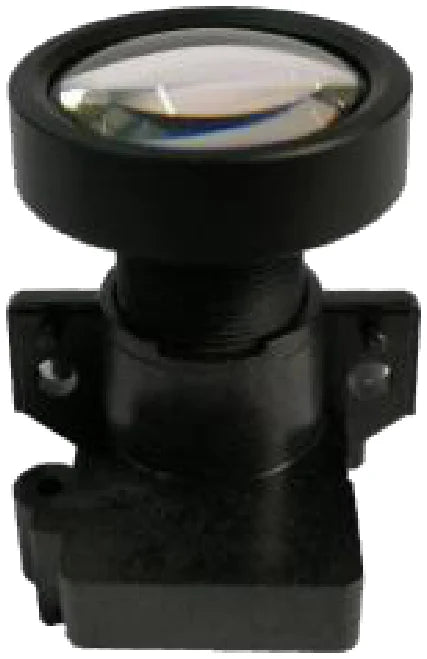

4.5 mm, 1/1.8", 8 MP, M12-mount M12 Board Lens (LS-MBL-0109)
  • 4.5 mm, 1/1.8", 8 MP, M12-mount M12 Board Lens (LS-MBL-0109)

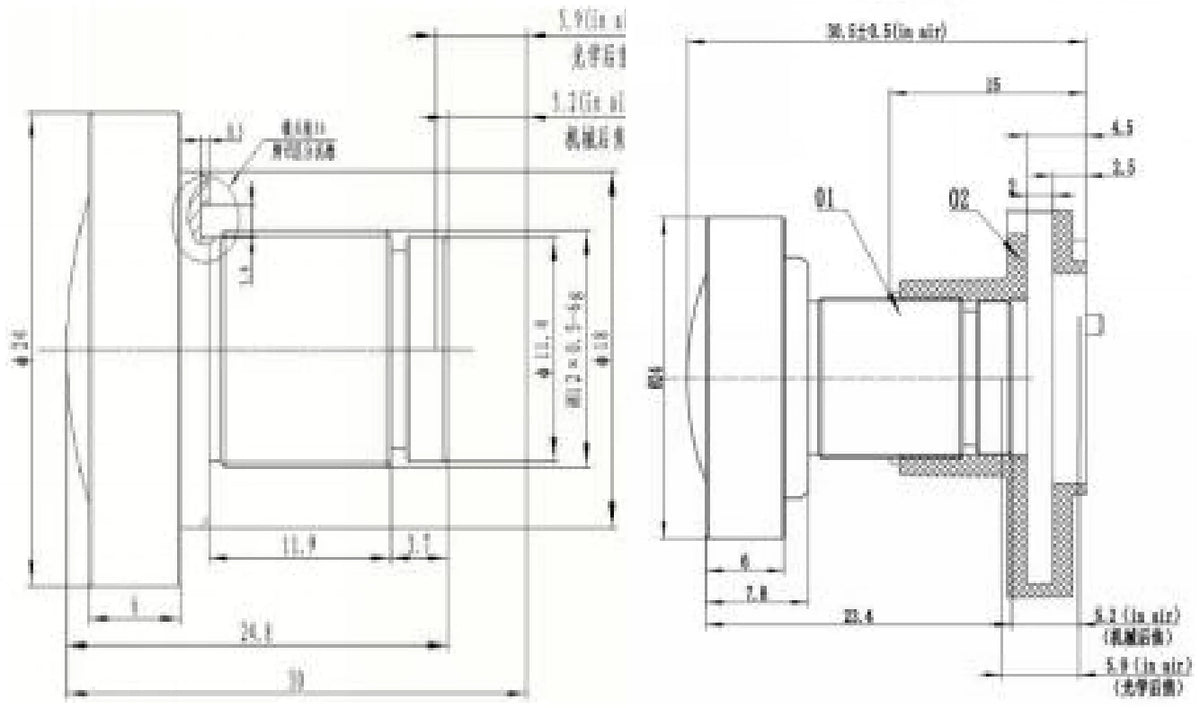

  • LS-MBL-0109 dimensions (mm)

M12 board lenses

4.5 mm, 1/1.8", 8 MP, M12-mount M12 Board Lens (LS-MBL-0109)

Model LS-MBL-0109

  • Focal length4.5mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF2.0 Fixed iris
  • Resolution8.0 Megapixel
$79.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4.5 mm, 1/1.8", 8 MP, M12-mount M12 Board Lens (LS-MBL-0109)LS-MBL-0109

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4.5 mm, 1/1.8", 8 MP, M12-mount M12 Board Lens. 8 megapixel 4.5 mm M12 lens for 1/1.8" sensors with -14.2% optical distortion, for recognition, scanning and surveillance. At a glance: focal length 4.5mm; format 1/1.8"; resolution 8.0 Megapixel; aperture F2.0 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0109
Format1/1.8"
Angle of view (1/1.8", DxHxV)98.5 x 90.2 x 54.8 deg
CRA<10.4°

Optics

Focal length4.5mm
ApertureF2.0 Fixed iris
Distortion-14.2%
M.O.D.0.5m
Back focal length (optical)5.9mm

Sensor and imaging

Resolution8.0 Megapixel

Mechanical

Sizedia. 24 x 24.8mm
MountM12
Weight15g
Shipping weight (estimated)0.12 kg
