M12 board lenses

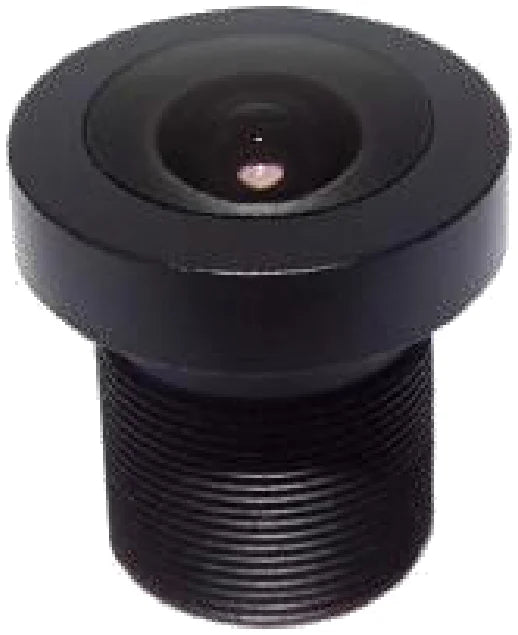

2.6 mm, 1/2.7", 3 MP, M12-mount M12 Board Lens (LS-MBL-0100)

Model LS-MBL-0100

Focal length2.6 mm
MountM12
Sensor1/2.7"
ApertureF1.8 fixed iris
Resolution3.0 MP

$59.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

2.6 mm, 1/2.7", 3 MP, M12-mount M12 Board Lens. 2.6 mm 1/2.7" 3 MP M12 wide-angle lens (162 deg diagonal) with F1.8 aperture, IR correction and an aspherical element for short-distance day/night security cameras. At a glance: focal length 2.6 mm; format 1/2.7"; resolution 3.0 MP; aperture F1.8 fixed iris; mount M12.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-MBL-0100
Format	1/2.7"
IR correction	IR
Angle of view (1/2.7", DxHxV)	162 x 131 x 68.8 deg

Optics

Focal length	2.6 mm
Aperture	F1.8 fixed iris
Distortion	-78.5%
M.O.D.	0.15 m
TTL	22.51 mm
Total track length (TTL)	22.51

Sensor and imaging

Resolution	3.0 MP

Mechanical

Size	dia. 15 x 17.2 mm
Mount	M12
Weight	6 g
Shipping weight (estimated)	0.11 kg

Downloads

Datasheet (PDF)LS-MBL-0100 · 455 KB

Features

High resolution: 3.0 megapixel can cover 3MP,1080P, 720P
Big aperture: F1.8 star level support evening dark vision
Large format: 1/2.7" can cover all 1/2.7", 1/3"
Wide FOV: Wide FOV support short distance view.
IR correction: 24h day & night vision
Aspherical lens: Inside aspherical element helps imaging far better.
3.0 megapixel
1/2.7" sensor format

Applications

Smart home
security surveillance
office
room
bank
Office
