M12 board lenses
2.8 mm, 1/2.6", 16 MP, M12-mount M12 Board Lens (LS-MBL-0108)
Model LS-MBL-0108
- Focal length2.8mm
- MountM12
- Sensor1/2.6"
- ApertureF2.5 Fixed Iris
- Resolution16 Megapixel
$79.00
Ships in 2-3 weeks
0.13 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2.8 mm, 1/2.6", 16 MP, M12-mount M12 Board Lens. 2.8 mm 1/2.6" 16 megapixel M12 lens for sports DV cameras. At a glance: focal length 2.8mm; format 1/2.6"; resolution 16 Megapixel; aperture F2.5 Fixed Iris; mount M12.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MBL-0108 |
|---|---|
| Format | 1/2.6" |
| Angle of view (1/2.6", DxHxV) | 135 x 110 x 82 deg |
| IR correction | Yes (day & night) |
Optics
| Max image circle | Max dia. 8.0 |
|---|---|
| Focal length | 2.8mm |
| Aperture | F2.5 Fixed Iris |
| M.O.D. | 0.1 |
| Back focal length (optical) | 5.29mm |
| Distortion | <47% |
| Total track length (TTL) | 24mm |
Sensor and imaging
| Resolution | 16 Megapixel |
|---|

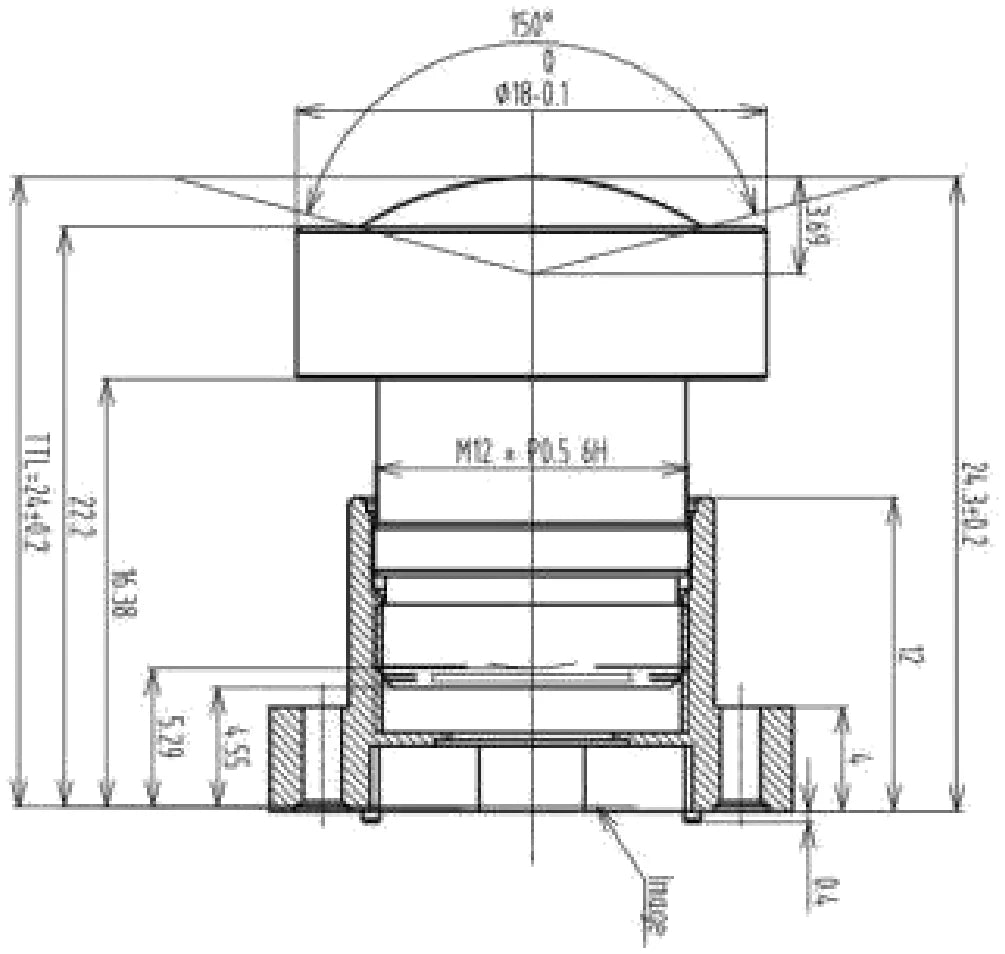

Mechanical
| Size | dia. 18 x 19 |
|---|---|
| Optical total length | 24mm |
| Mount | M12 |
| Weight | 20g |
| Shipping weight (estimated) | 0.13 kg |
