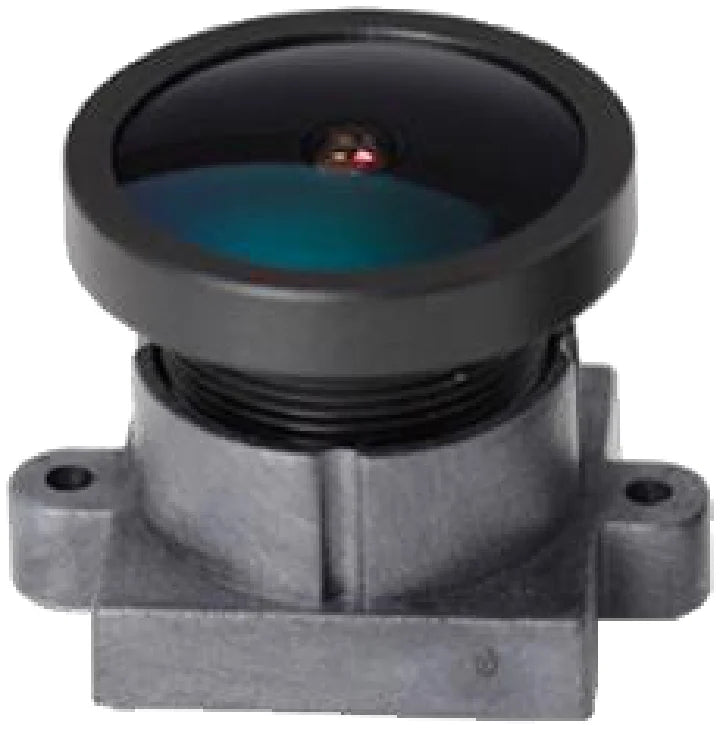

2.98 mm, 1/2.9", 3 MP, M12-mount M12 Board Lens (LS-MBL-0101)
  • 2.98 mm, 1/2.9", 3 MP, M12-mount M12 Board Lens (LS-MBL-0101)

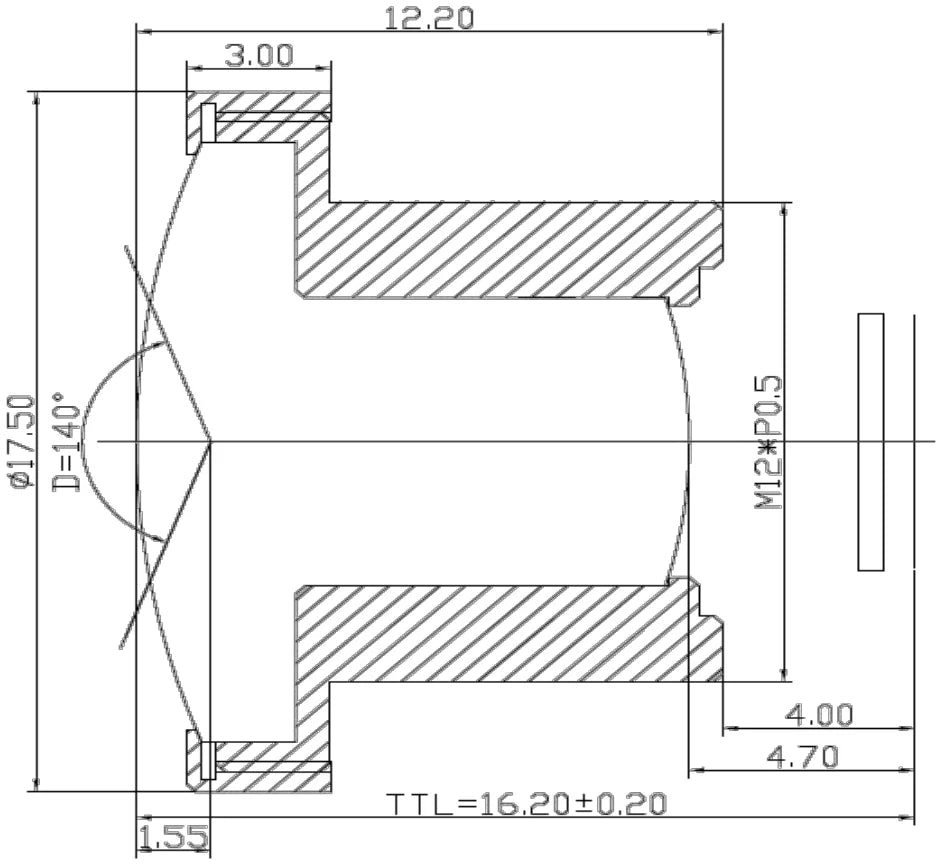

  • LS-MBL-0101 dimensions (mm)

M12 board lenses

2.98 mm, 1/2.9", 3 MP, M12-mount M12 Board Lens (LS-MBL-0101)

Model LS-MBL-0101

  • Focal length2.98mm
  • MountM12
  • Sensor1/2.9"
  • ApertureF1.8 Fixed Iris
  • Resolution3.0 Megapixel
$59.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2.98 mm, 1/2.9", 3 MP, M12-mount M12 Board Lens (LS-MBL-0101)LS-MBL-0101

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2.98 mm, 1/2.9", 3 MP, M12-mount M12 Board Lens. 3.0 megapixel 2.98 mm M12 lens for 1/2.9" sensors with a large F1.8 aperture, for CCTV, smart home and automotive use. At a glance: focal length 2.98mm; format 1/2.9" (Max image dia. 6.7); resolution 3.0 Megapixel; aperture F1.8 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0101
IR correctionIR
Format1/2.9" (Max image dia. 6.7)
Angle of view (1/2.9", DxHxV)140 x 114 x 60 deg

Optics

Focal length2.98mm
ApertureF1.8 Fixed Iris
Distortion-16.2%
M.O.D.0.2m
Total track length (TTL)16.2mm

Sensor and imaging

Resolution3.0 Megapixel

Mechanical

Sizedia. 17.5 x 12.2mm
MountM12
Weight6g
Shipping weight (estimated)0.11 kg
