M12 board lens
  • M12 board lens

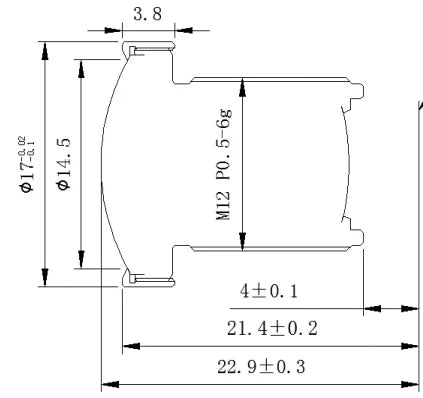

  • LS-MBL-0079 dimensions (mm)

M12 board lenses

2.8 mm, 1/2.5", 8 MP, M12-mount M12 Board Lens (LS-MBL-0079)

Model LS-MBL-0079

  • Focal length2.8 mm
  • MountM12
  • Sensor1/2.5"
  • ApertureF2.1 Fixed iris
  • Resolution8.0 MP
$79.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2.8 mm, 1/2.5", 8 MP, M12-mount M12 Board Lens (LS-MBL-0079)LS-MBL-0079

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2.8 mm, 1/2.5", 8 MP, M12-mount M12 Board Lens. 2.8 mm, 1/2.5" 8 MP (4K) M12 board lens, F2.1, IR corrected for 24 h day/night. Covers 1/2.5", 1/2.7", 1/2.8" and 1/3" cameras. At a glance: focal length 2.8 mm; format 1/2.5"; resolution 8.0 MP; aperture F2.1 Fixed iris; mount M12 x 0.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0079
IR correctionIR
Format1/2.5"
Structure7G
Angle of view (1/2.5", DxHxV)168 x 130 x 96 deg

Optics

Focal length2.8 mm
ApertureF2.1 Fixed iris
M.O.D.0.2 m
Distortion-28%
TTL22.9 mm

Sensor and imaging

Resolution8.0 MP

Mechanical

Sizedia. 17 x 17.4
MountM12 x 0.5
Weight15 g
Shipping weight (estimated)0.12 kg

Photo shows a representative model of this series; see the specifications for this model.
