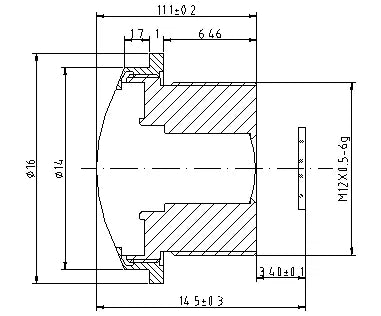

  • LS-MBL-0106 dimensions (mm)

M12 board lenses

1.78 mm, 1/2.7", 2 MP, M12-mount M12 Board Lens (LS-MBL-0106)

Model LS-MBL-0106

  • Focal length1.78 mm
  • MountM12
  • Sensor1/2.7"
  • ApertureF2.0 Fixed iris
  • Resolution2.0 MP
$59.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1.78 mm, 1/2.7", 2 MP, M12-mount M12 Board Lens (LS-MBL-0106)LS-MBL-0106

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1.78 mm, 1/2.7", 2 MP, M12-mount M12 Board Lens. Ultra-wide 1.78 mm, 1/2.7" 2 MP (1080P) M12 (S-mount) lens for intercoms, door phones and access control. Offered in three mechanical versions: 1.7 mm step (no IR cut), 1.2 mm step (IR cut optional) and no step (IR cut optional). At a glance: focal length 1.78 mm; format 1/2.7"; resolution 2.0 MP; aperture F2.0 Fixed iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0106
Format1/2.7"
IR correctionIR
B.F.L.3.49 mm (in air)
Structure6G / 6G+1IR
Notes-20° ~ +80°
Angle of view (1/2.7")200 x 190 x 145 deg
Angle of view (1/3")200 x 165 x 125 deg
VariantStep 1.2 mm height, IR cut optional

Optics

Focal length1.78 mm
ApertureF2.0 Fixed iris
M.O.D.0.1 m
Distortion<9.2%
TTL14.52 mm

Sensor and imaging

Resolution2.0 MP

Mechanical

MountM12
Weight5 g
Sizedia. 16 x 13.1 mm (from drawing)
Shipping weight (estimated)0.11 kg

Photo shows lenses of this series; see the specifications and drawing for this model.
