5 mm, 1/1.8", 6 MP, M12-mount M12 Board Lens, 5.0 mm (LS-MBL-0102)
  • 5 mm, 1/1.8", 6 MP, M12-mount M12 Board Lens, 5.0 mm (LS-MBL-0102)

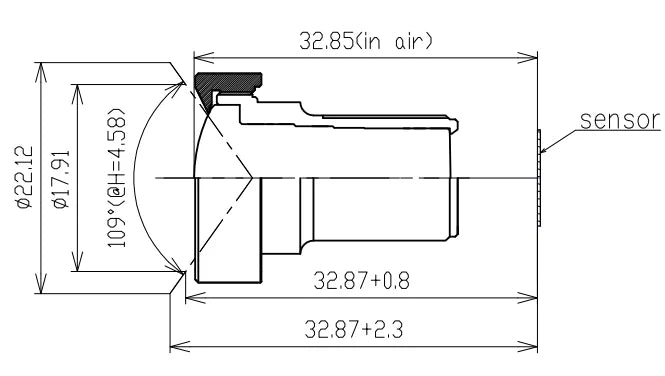

  • LS-MBL-0102 dimensions (mm)

M12 board lenses

5 mm, 1/1.8", 6 MP, M12-mount M12 Board Lens, 5.0 mm (LS-MBL-0102)

Model LS-MBL-0102

  • Focal length5.0 mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF2.5 Fixed Iris
  • Resolution6.0 MP (2.0 MP Optional)
$59.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

5 mm, 1/1.8", 6 MP, M12-mount M12 Board Lens, 5.0 mm (LS-MBL-0102)LS-MBL-0102

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

5 mm, 1/1.8", 6 MP, M12-mount M12 Board Lens. 5 mm, 1/1.8" large-format M12 (S-mount) board lens, 6 MP (2 MP version optional), F2.5, metal body with glass elements. Covers 1/1.8" and 1/2" cameras for security cameras. At a glance: focal length 5.0 mm; format 1/1.8"; resolution 6.0 MP (2.0 MP Optional); aperture F2.5 Fixed Iris; mount M12.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0102
Format1/1.8"
Angle of view (1/1.8", DxHxV)105 x 84 x 52 deg

Optics

Focal length5.0 mm
ApertureF2.5 Fixed Iris
M.O.D.0.3 m
Distortion-4.6%

Sensor and imaging

Resolution6.0 MP (2.0 MP Optional)

Mechanical

Sizedia. 20 x 25.2 mm
MountM12
Weight16 g
Shipping weight (estimated)0.12 kg
