4 mm, 1/2.5", 8 MP, M12-mount M12 Board Lens (LS-MBL-0081)
  • 4 mm, 1/2.5", 8 MP, M12-mount M12 Board Lens (LS-MBL-0081)

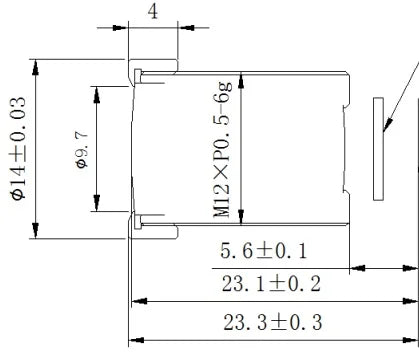

  • LS-MBL-0081 dimensions (mm)

M12 board lenses

4 mm, 1/2.5", 8 MP, M12-mount M12 Board Lens (LS-MBL-0081)

Model LS-MBL-0081

  • Focal length4.0 mm
  • MountM12
  • Sensor1/2.5"
  • ApertureF1.9 Fixed iris
  • Resolution8.0 MP
$79.00

Ships in 2-3 weeks

0.12 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4 mm, 1/2.5", 8 MP, M12-mount M12 Board Lens (LS-MBL-0081)LS-MBL-0081

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

4 mm, 1/2.5", 8 MP, M12-mount M12 Board Lens. 4.0 mm, 1/2.5" 8 MP (4K) M12 board lens, F1.9, IR corrected for 24 h day/night. Covers 1/2.5", 1/2.7" and 1/3" cameras. At a glance: focal length 4.0 mm; format 1/2.5"; resolution 8.0 MP; aperture F1.9 Fixed iris; mount M12 x 0.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0081
IR correctionIR
Format1/2.5"
Structure8G
Angle of view (1/2.5", DxHxV)114 x 95 x 51 deg
Elements8G
F/NO.2±5%
ApplicationCCTV
M-BFL5.2±0.1 mm

Optics

Focal length4.0 mm
ApertureF1.9 Fixed iris
M.O.D.0.2 m
Distortion-14%
TTL23.3 mm
Focal length (EFL)3.6 mm
Image circle1/2.5"
F-number2±5%
Mechanical back focal length (M-BFL)5.2±0.1 mm
Total track length (TTL)23.0±0.3 mm

Sensor and imaging

Resolution8.0 MP

Mechanical

Sizedia. 17 x 17.4
MountM12 x 0.5
Weight15 g
Shipping weight (estimated)0.12 kg
