12 mm, 1/1.8", 5 MP, M12-mount M12 Board Lens (LS-MBL-0095)
  • 12 mm, 1/1.8", 5 MP, M12-mount M12 Board Lens (LS-MBL-0095)

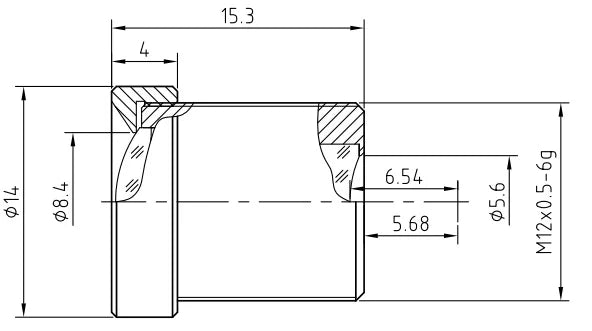

  • LS-MBL-0095 dimensions (mm)

M12 board lenses

12 mm, 1/1.8", 5 MP, M12-mount M12 Board Lens (LS-MBL-0095)

Model LS-MBL-0095

  • Focal length12 mm
  • MountM12
  • Sensor1/1.8"
  • ApertureF1.8 Fixed iris
  • Resolution5.0 Megapixel
$59.00

Ships in 2-3 weeks

0.11 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 1/1.8", 5 MP, M12-mount M12 Board Lens (LS-MBL-0095)LS-MBL-0095

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 1/1.8", 5 MP, M12-mount M12 Board Lens. 12 mm F1.8 5 megapixel M12 board lens with day/night IR correction; the 1/1.8" format covers 1/1.8" and 1/2" cameras. At a glance: focal length 12 mm; format 1/1.8"; resolution 5.0 Megapixel; aperture F1.8 Fixed iris; mount M12 x 0.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-MBL-0095
IR correctionIR corrected (day/night)
Format1/1.8"
Angle of view (1/1.8", DxHxV)38.6 x 31 x 23 deg

Optics

Focal length12 mm
ApertureF1.8 Fixed iris
M.O.D.0.2 m

Sensor and imaging

Resolution5.0 Megapixel

Mechanical

Sizedia. 14 x 15.3
MountM12 x 0.5
Weight10 g
Shipping weight (estimated)0.11 kg
